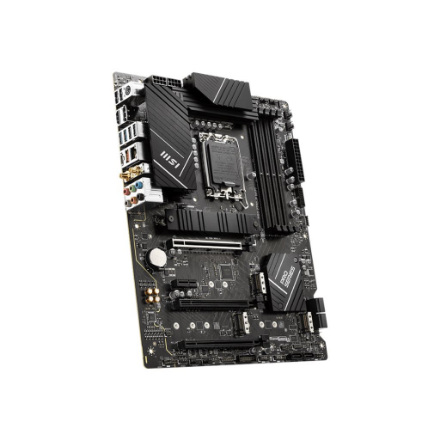

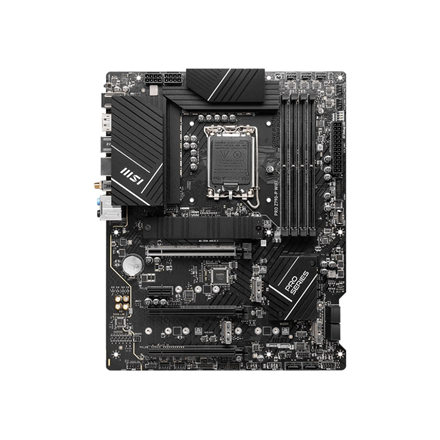

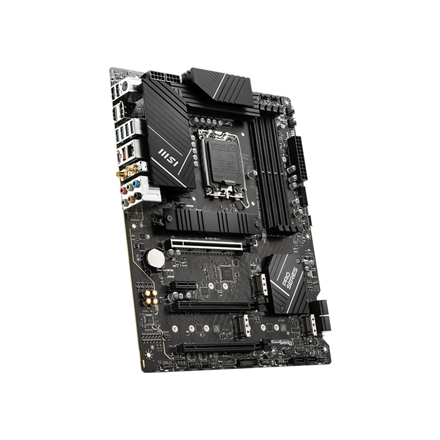

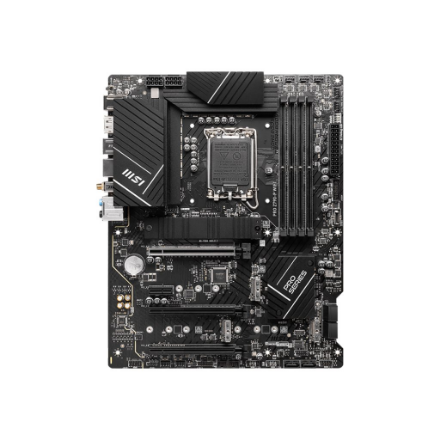

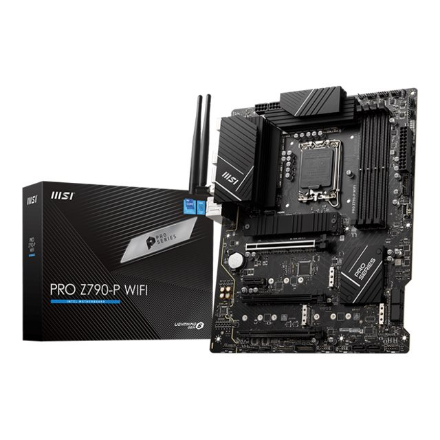

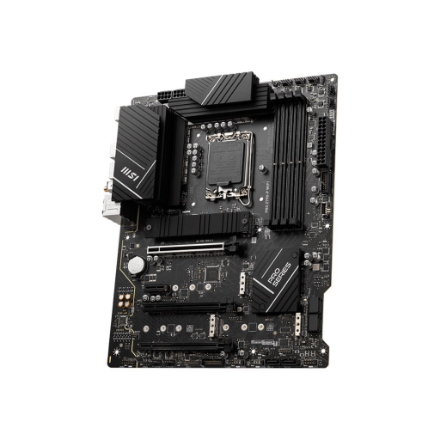

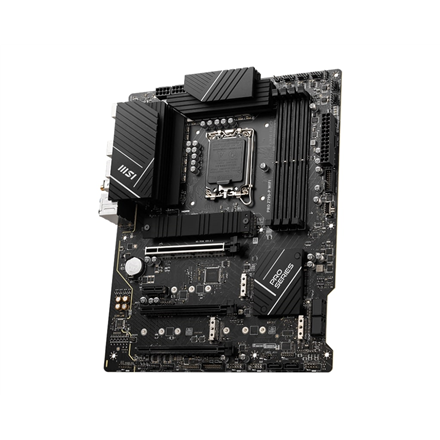

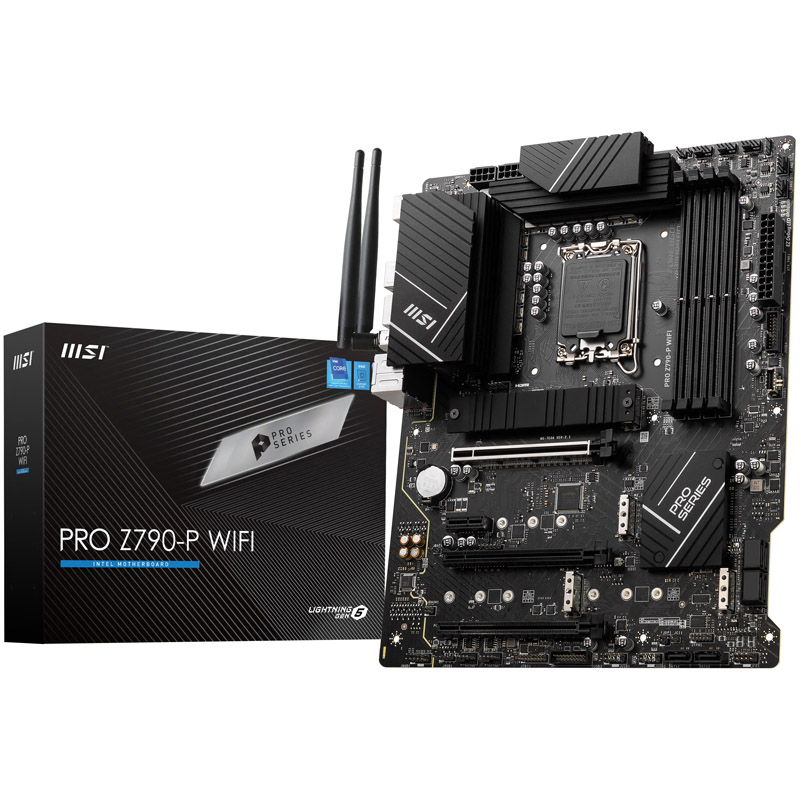

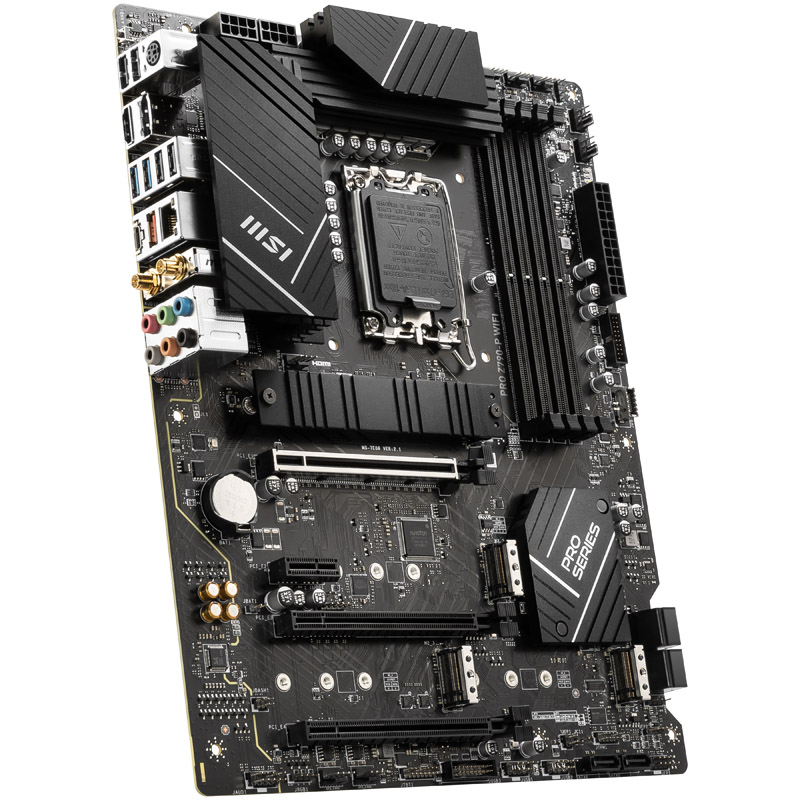

MSI Pro Z790-P WiFi, Socket LGA 1700, Intel Z790, ATX – DDR5
Prekės kodas: 1268084
7E06-001R
233,84 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
ATX motherboard with Z790 chipset, 1x PCIe 5.0 x16 / 1x PCIe 4.0 x4 / 2x PCIe 3.0 x1, 1x USB-C 3.2 / 1x USB-C 3.1 / 2x USB 3.1 / 6x USB 3.0, 4x M.2 (4x PCIe 4.0) / 6x SATA 6G, 8x 4-pin PWM connectors, for DDR5 RAM
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Colour | |
Primary Colour | Black |
Secondary Colour | Silver |
Form Factor | |
Motherboard formfactor | ATX |
CPU | |
CPU Manufacturer | Intel |
CPU Socket | 1700 |
Motherboard | |
Motherboard Chipset | Intel Z790 |
Memory | |
Max. Memory | 128 GB |
Memory Type | DDR5 |
Memory Form Factor | DIMM |
Memory slots | 4x |
Wi-Fi & LAN | |
LAN | Yes |
LAN Ports | 1x 2.5 Gbit/s |
Wi-Fi / Bluetooth | Yes |
Internal Ports | |
CPU Power Supply | 2x 8-Pin |
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
USB 3.0 (internal) Possible Ports | 4 |
RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 2x Digital RGB (3-Pin 5VDG) |

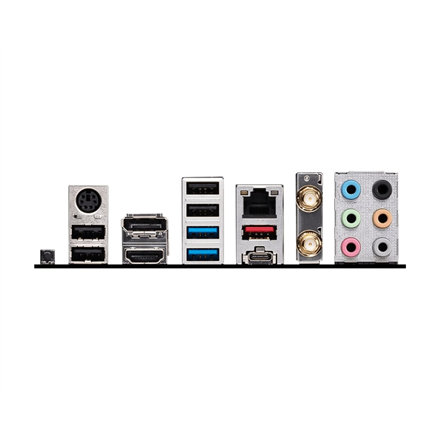

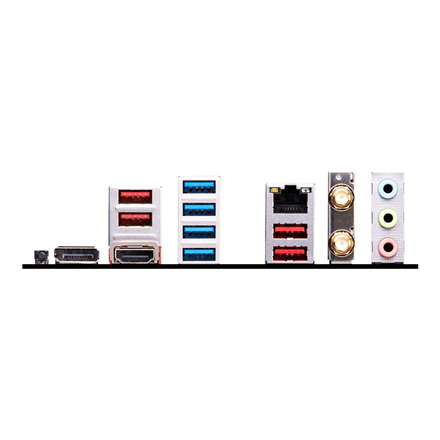

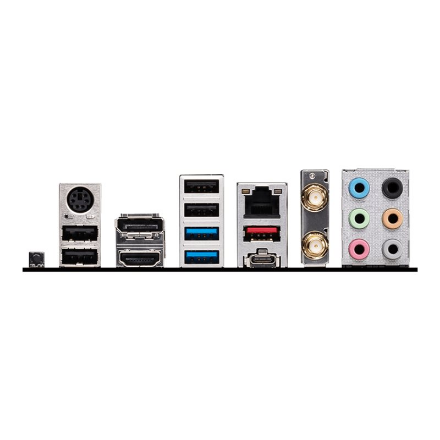

External Ports | |
USB 3.2 (external) Type C | 1 |
USB 3.1 (external) Type A | 1 |
USB 3.0 (external) Type A | 2 |
Display Connectors | Display Port (1x), HDMI (1x), Thunderbolt 3 (1x) |
Storage Ports | |
M.2 PCIe 4.0 x4 | 4 |
M.2 PCIe 4.0 x4 & SATA 6G | 2 |
SATA 6G (internal) | 6 |
Expansion Slots | |
PCIe x16 slots (total) | 3 |
PCIe x1 slots (total) | 1 |
PCIe 5.0 x16 mechanical slot | 1 |
PCIe 4.0 x16 mechanical slot | 1 |
PCIe 3.0 x16 mechanical slot | 1 |
PCIe 3.0 x1 mechanical slot | 1 |
Fan Header | |
4 Pin Fan Connectors | 8 |
Audio | |
Soundchip | Realtek ALC897 |
Lighting | |
Lighting / RGB | No |
