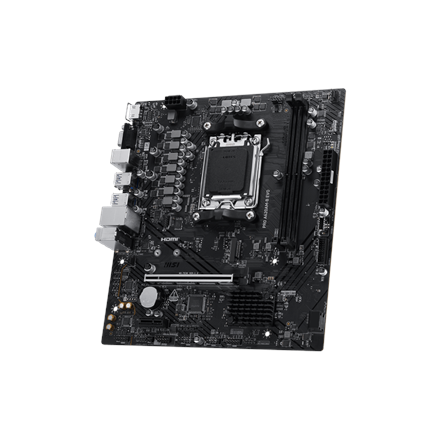

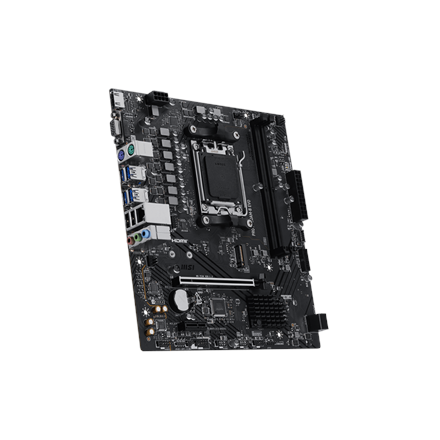

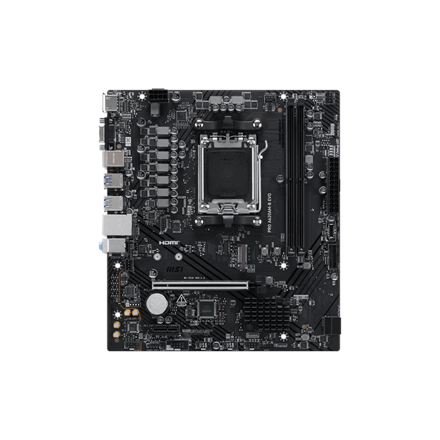

MSI PRO A620AM-B EVO Motherboard, Socket AM5, AMD A620, mATX, DDR5
Prekės kodas: 1680718
7E36-001R
109,38 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-02-27*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Micro-ATX motherboard with A620 chipset, 1x PCIe 4.0 x16, compatible with DDR5 RAM
- 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1
- Supports up to 128 GB DDR5 RAM at 6,800 MHz (OC)
- 1x M.2 PCIe 4.0 / 2x SATA 6G
- 4x USB-A 3.0 and 2x USB 2.0 on the I/O panel
- Supports a total of 3x 4-pin PWM fans
MSI Pro A620AM-B EVO: Micro-ATX motherboard with AMD AM5
The MSI PRO A620AM-B EVO is equipped with the A620 chipset for AMD Ryzen processors of the 7000, 8000, and 9000 series and offers numerous features for gamers. Since the Ryzen 7000 processors require a new socket due to support for PCIe 5.0 and enhanced power delivery, the 600-series motherboards use the AM5 socket (LGA 1718).
Despite the increased number of pins, the actual size of the socket remains identical to older sockets, so most CPU coolers for the AM4 socket can also be mounted on the motherboard.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Width
|
218 mm
|
|
Height
|
243.84 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD A620A
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
No
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
6800 MT/s
|
|
Memory slots
|
2x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
No
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
LAN Chip
|
Realtek 8125
|
|
Wi-Fi / Bluetooth
|
No
|
|
Cooling
|
|
|
Backplate
|
No
|
|
M.2 Heatsinks
|
No
|
|
VRM Heatsinks
|
No
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
4
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
yes
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB 3.0 (external) Type C
|
4
|
|
USB 2.0 (external) Type A
|
2
|
|
Display Connectors
|
HDMI (1x), VGA (D-Sub) (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
SATA 6G (internal)
|
2
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
