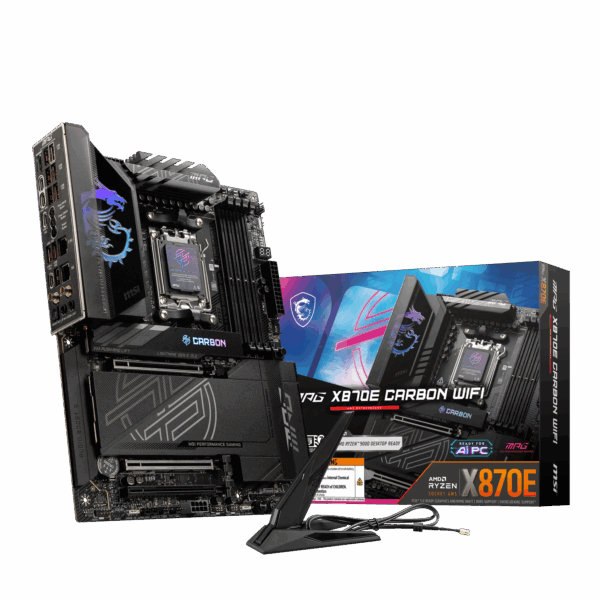

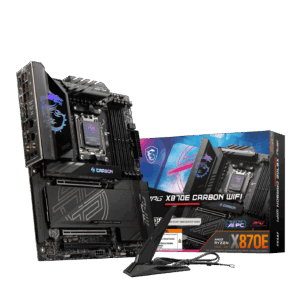

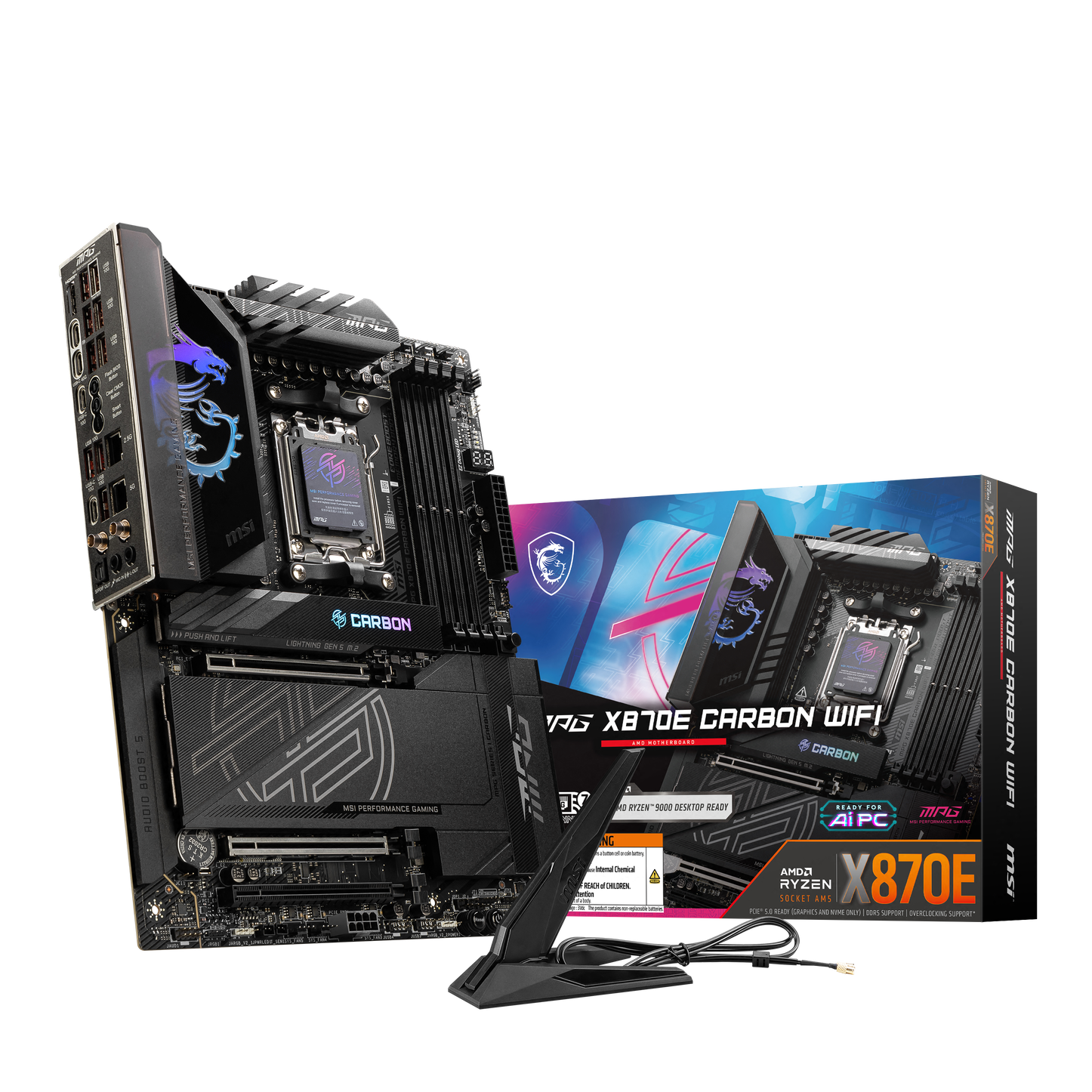

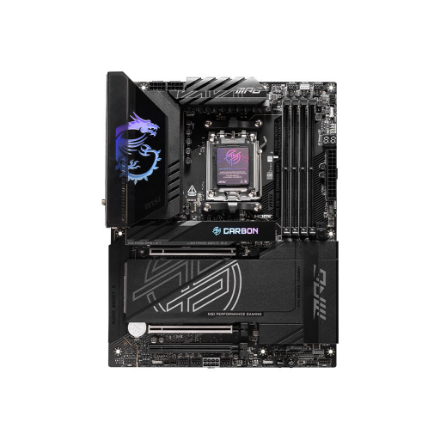

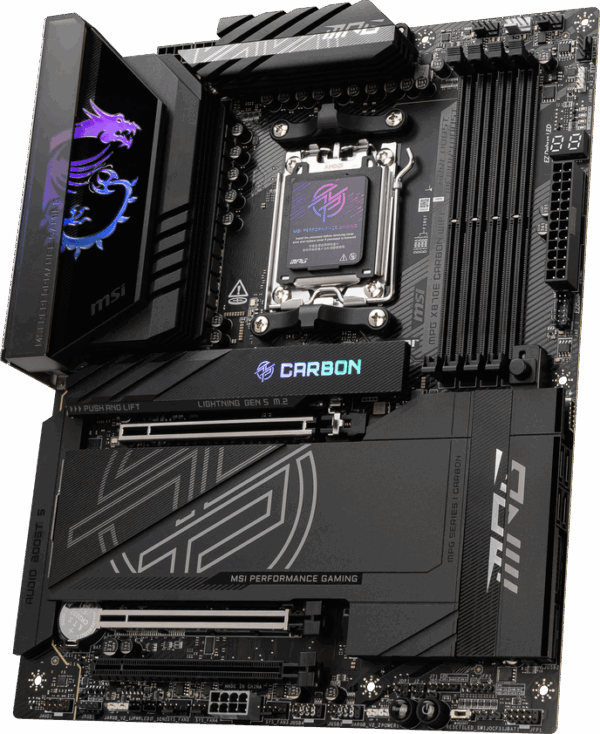

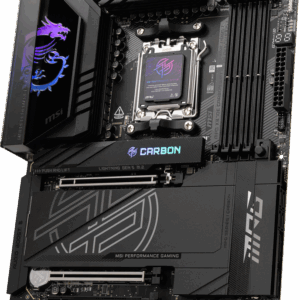

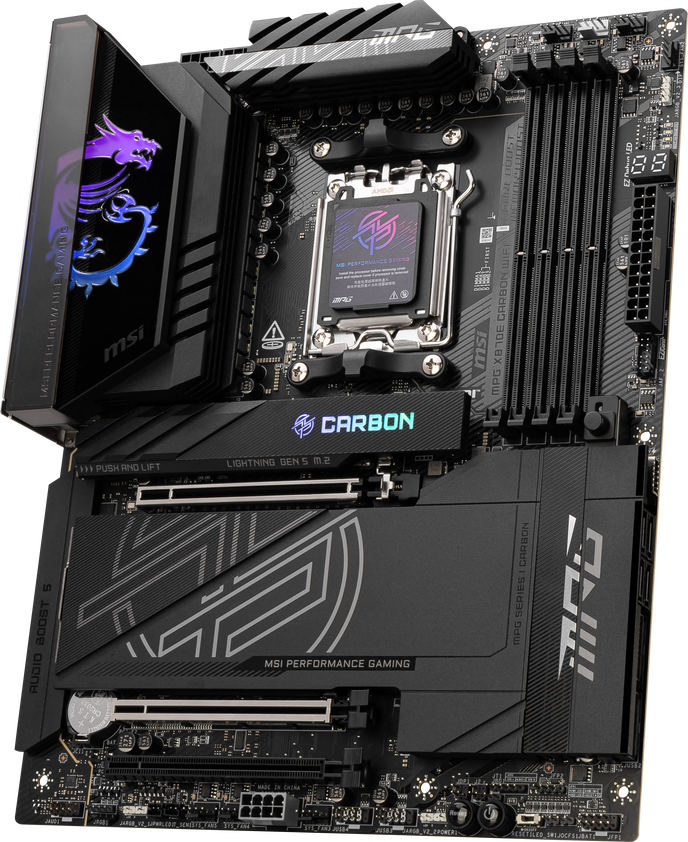

MSI MPG X870E Carbon WiFi motherboard, Socket AM5, AMD X870E, ATX, DDR5

• 1x PCIe 5.0 x16 (x16), 1x PCIe 5.0 x16 (x4), and 1x PCIe 4.0 x16 (x4)
• 4x DIMM slots for a maximum of 256 GB DDR5 RAM up to 8,400 MHz (OC)
• 4x M.2 slots (2x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
• 2x USB4, 11x USB 3.1 on the I/O panel
• OC features: 20-phase VRMs, CMOS reset
• Supports up to 7x 4-pin PWM fans

MSI MPG 870E CARBON WIFI: ATX Motherboard with AMD AM5 Socket and X870E Chipset

The MSI MPG 870E CARBON WIFI is equipped with the high-end X870E chipset, designed for AMD’s Ryzen 9000 series processors, offering a wealth of features tailored for overclockers and gaming enthusiasts. The AM5 socket (LGA 1718) continues to be the choice for the Ryzen 9000 processors.

This AMD X870E motherboard also features USB 4.0, which is now standard, providing data transfer rates up to 40 Gbit/s. Furthermore, the MSI MPG 870E CARBON WIFI supports PCIe 5.0, delivering double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Optimised for Gaming

The motherboard is built for overclocking, ensuring that you can enjoy even the most demanding games. Its 18 native and two virtual phase VRMs provide 110 A of power to keep the CPU running at high clock speeds for extended periods. The Clear CMOS feature allows for easy resetting of settings if needed, and, as usual, the DDR5 RAM can be pushed to higher clock speeds for optimal performance.
