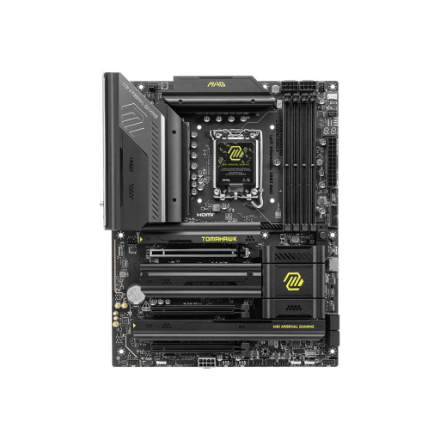

MSI MAG Z890 Tomahawk WiFi Motherboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
Prekės kodas: 1273194
7E32-001R
394,85 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-02-27*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
- Atsiliepimai (0)
Aprašymas
ATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 2x PCIe 4.0 x4, 2x Thunderbolt (USB-C) / 1x USB-C 3.2 / 3x USB 3.1 / 4x USB 3.0, 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) / 4x SATA 6G, 8x 4-pin PWM connectors
- 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x4
- 4x DIMM slots for a maximum of 256 GB DDR5 RAM up to 9,200 MHz
- 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
- USB on the I/O panel: 2x Thunderbolt 4, 1x USB-C 3.2, 3x USB 3.1 and 4x USB 3.0
- A total of 8x 4-pin connectors for fans & pumps
- Supports WiFi 7 and Bluetooth 5.4
MSI MAG Z890 Tomahawk WiFi: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The MSI MAG Z890 Tomahawk WiFi is an ATX motherboard featuring the high-end Intel Z890 chipset and LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40 Gbit/s. Furthermore, the MSI MAG Z890 Tomahawk WiFi impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Designed for demanding gaming
The MSI MAG Z890 Tomahawk WiFi has been specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruptions. The premium voltage regulators ensure stable power supply to the CPU, guaranteeing reliable operation even at high clock rates over extended periods. Additionally, the DDR5 RAM can also be overclocked to higher speeds.
- Form Factor:
ATX (244 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd Generation) - RAM:
4x DDR5 DIMM (up to 9,200 MHz via OC / XMP 3.0)
Dual-Channel
Max. 256 GB - Physical Slots:
1x PCIe 5.0 x16 (electrical x16, CPU)
2x PCIe 4.0 x4 (electrical x4, chipset) - Total Maximum Usable PCIe Lanes: 44
- Internal Connections:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2260 / 2280, CPU)
1x M.2 (PCIe 4.0 x4; 22110 / 2260 / 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, chipset)
1x M.2 (PCIe 4.0 x4 & SATA; 2242 / 2260 / 2280, chipset)
1x USB-C (1 Header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
2x USB 3.0 (1 Header, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 Header, max. 480 Mbit/s)
1x Chassis Intrusion
1x Thunderbolt 5 Card Connector
2x Front Panel
1x Front Audio
1x TPM Header (2.0)
1x ARGB Fan USB 2.0 Header - Fan Headers:
1x CPU Fan (4-Pin)
1x Pump_Sys (4-Pin)
6x Case Fans (4-Pin) - RGB Headers:
3x 3-Pin ARGB (5 V)
1x RGB - External Connections:
2x Thunderbolt 4 (USB-C, max. 40 Gbit/s)
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
3x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x 5 Gigabit LAN (Killer E500)
2x 3.5 mm Jack (Realtek ALC 1220P)
1x HDMI
1x DisplayPort
1x Flash BIOS Button
1x Clear CMOS Button
1x S/PDIF-Out
2x WiFi/Bluetooth Module - Power Supply:
1x 24-Pin ATX
2x 8-Pin +12V CPU
1x 8-Pin PCIe
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
9200 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3×2 (external) Type C
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
4
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC1220
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Product Series
|
|
|
Product Series/Family
|
MAG
|
