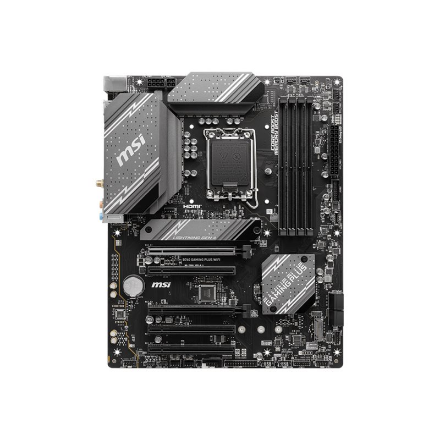

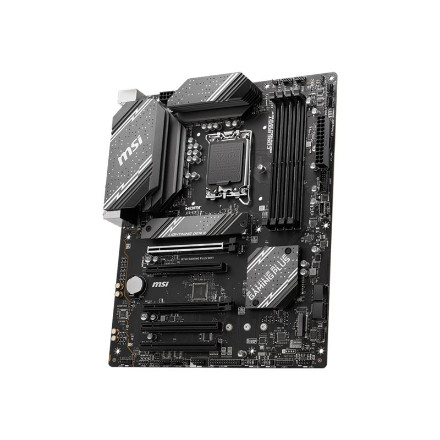

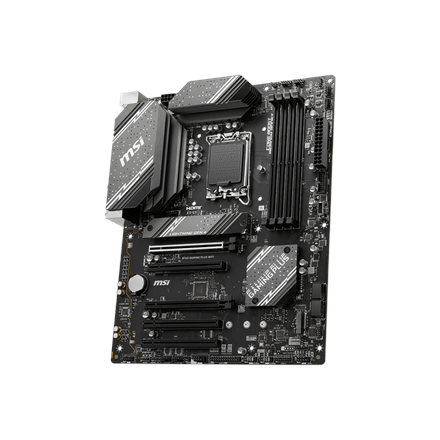

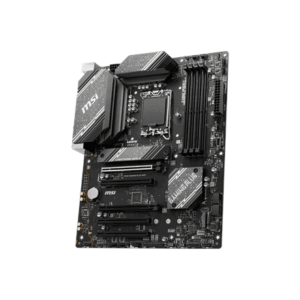

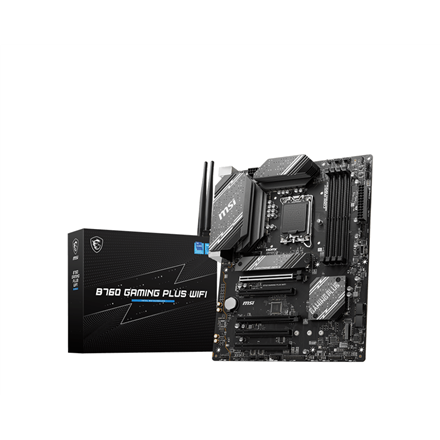

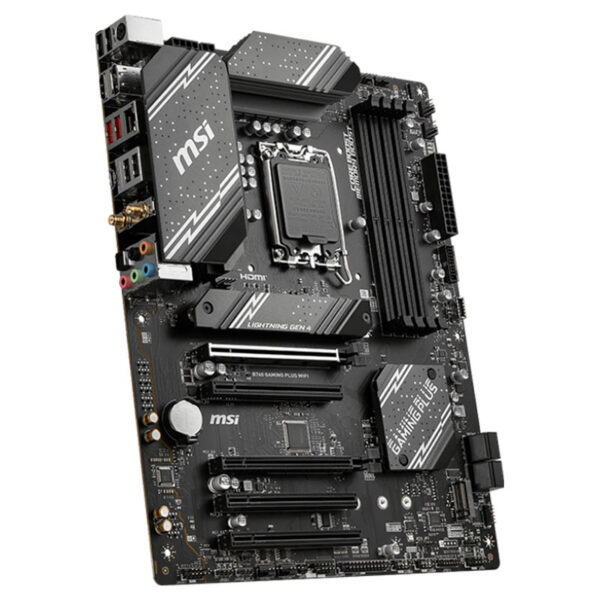

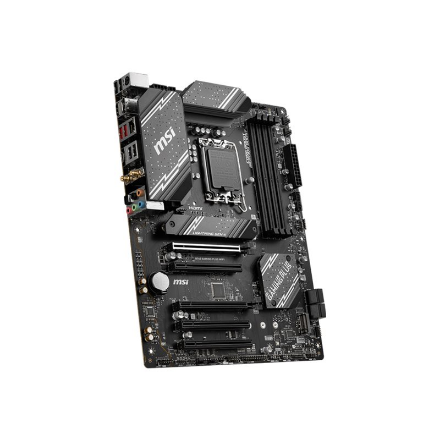

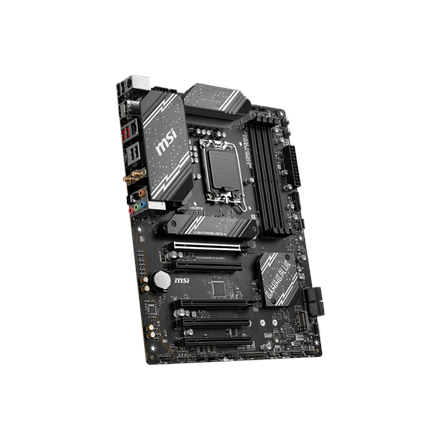

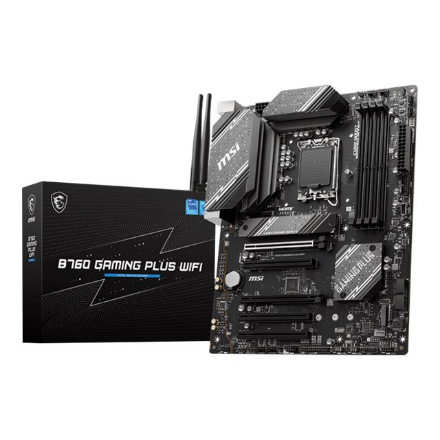

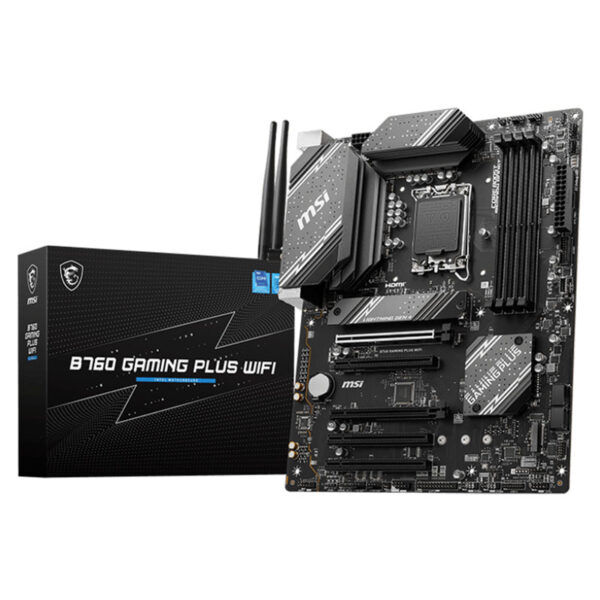

MSI B760 Gaming Plus WiFi motherboard, LGA 1700 socket, Intel B760, ATX, DDR5
7D98-007R
143,43 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-18*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
ATX motherboard with B760 chipset, with Intel socket 1700, PCIe 4.0 for graphics card & SSDs, compatible with DDR5 RAM, 2x M.2 slots, 2.5 Gbit LAN and WLAN 6E including Bluetooth 5.3
- 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4) and 3x PCIe 3.0 x1
- DDR5 memory up to 5,600 MHz, with RAM OC up to 6,800 MHz
- 2x M.2 slots, of which 1x PCIe 4.0 and 1x PCIe 4.0 & SATA

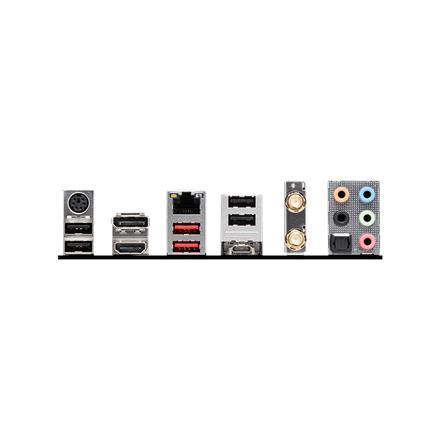

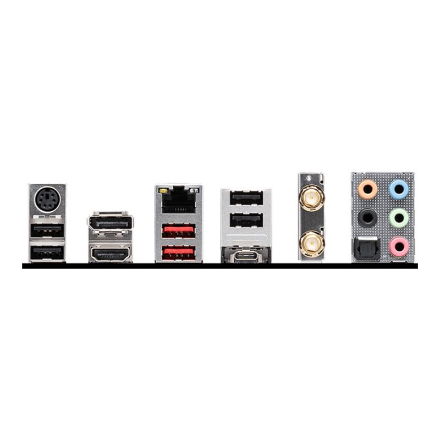

- USB on the I/O panel: 1x USB-C 3.1, 2x USB-A 3.1 and 2x USB 2.0
- A total of 7 connectors for fans and pumps
The ATX motherboard MSI B760 Gaming Plus WiFi with Intel B670 chipset
The MSI B760 Gaming Plus WiFi is an ATX motherboard with the Intel B760 chipset and LGA 1700 socket. The motherboard is suitable for desktop processors of the 12th, 13th, and 14th generation Intel Core CPUs, Codename: Alder Lake and Raptor Lake. It supports DDR5 memory with speeds up to 5,600 MHz and is excellent for RAM overclocking due to its outstanding power supply.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey, Silver
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B760
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 2x Digital RGB (3-Pin 5VDG)
|
|
External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
2
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe x1 slots (total)
|
3
|
|
PCIe 4.0 x16 mechanical slot
|
2
|
|
PCIe 3.0 x1 mechanical slot
|
3
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
