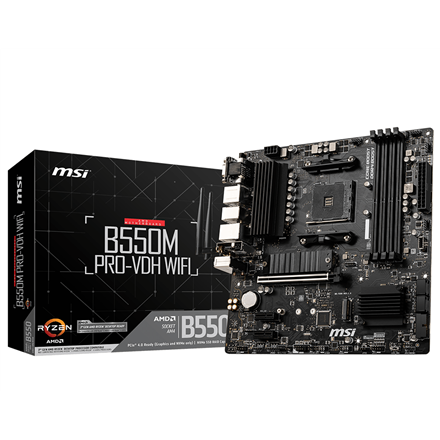

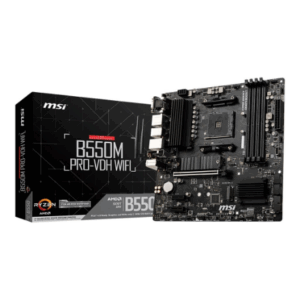

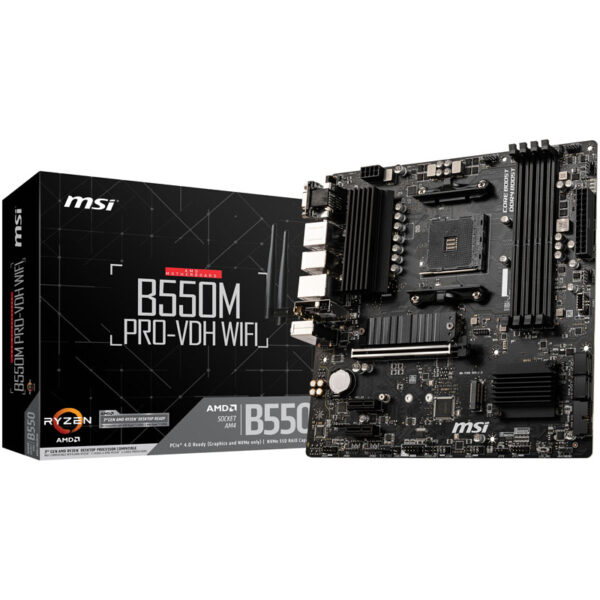

MSI B550M Pro-VDH WiFi, AMD B550 pagrindinė plokštė – Sockel AM4

The B550 chipset is the heart of the MSI B550M Pro-VDH WiFi motherboard and has been specifically optimised for the Ryzen CPUs of the 3000 series „Matisse” and the 5000 series „Vermeer”. B550 motherboards support all features of third and fourth generation Ryzen processors, especially the PCI Express standard in version 4.0 (PCIe 4.0). PCIe 4.0 is backwards compatible and can be used with all expansion cards from previous generations. In addition, the motherboards support up to 128 GB of RAM with a guaranteed clock speed of 3,200 megahertz. Depending on the motherboard, significantly higher clock speeds are also possible via overclocking. The B550 chipset also allows for processor overclocking.

The features of the MSI B550M Pro-VDH WiFi at a glance:

• 1x PCIe 4.0 x16 (x16) and 2x PCIe 3.0 x1
• 7x USB 3.0 / 6x USB 2.0 (internal & external)
• 2x M.2 (1x PCIe 4.0 x4 and SATA 6G / 1x PCIe 3.0 x4) / 4x SATA 6G
• DDR4 memory up to 4,400 MHz via OC
• Ideal for AMD CPUs of the Ryzen 3000 and Ryzen 5000 series (Matisse/Vermeer)
• Supports MSI Mystic Light Sync

The specifications of the MSI B550M Pro-VDH WiFi in detail:

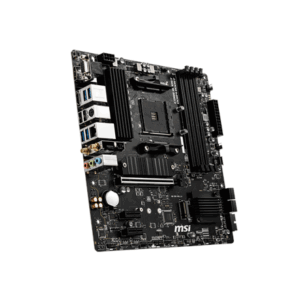

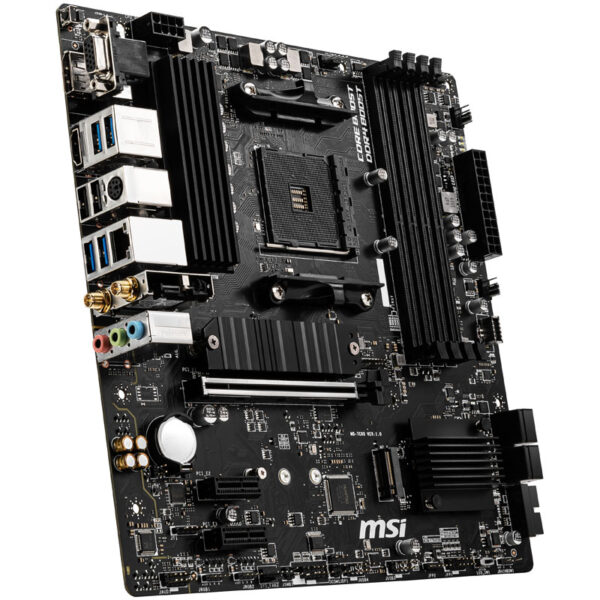

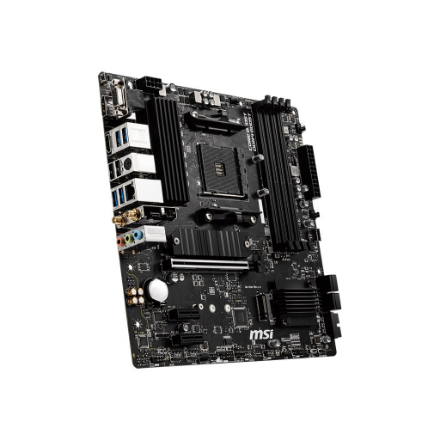

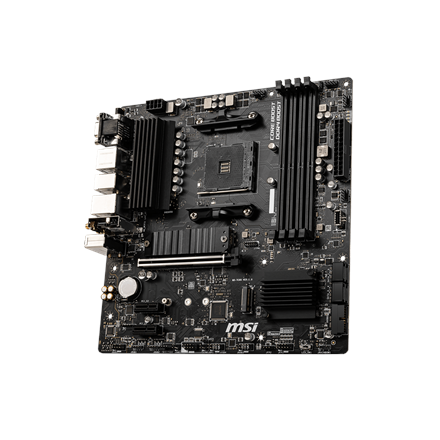

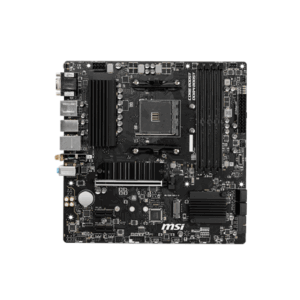

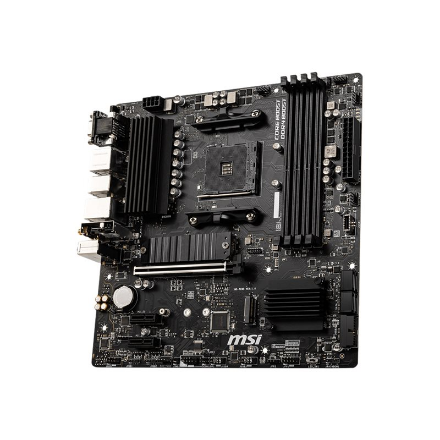

The MSI B550M Pro-VDH WiFi is a micro-ATX motherboard and features a PCI Express 4.0 slot with full x16 connection for the graphics card. For additional expansion cards, the motherboard provides two PCIe 3.0 x1 slots. The four RAM slots support up to 128 GB of DDR4 memory with a clock speed of up to 3,200 megahertz, and can even handle clock speeds up to 4,400 MHz via OC.

The AM4 motherboard offers two M.2 slots. One of the M.2 slots is connected to the CPU with four PCI Express 4.0 lanes. It accommodates plug-in cards up to 80 mm (2280) and supports the SATA protocol. M.2 SSDs with the advanced Non-Volatile Memory Express protocol (NVMe) and a connection via four PCI Express 4.0 lanes support data transfer rates of up to 8 GB/s, which is twice as fast as PCI Express 3.0.

The second M.2 slot is connected to the chipset with four PCI Express 3.0 lanes and supports plug-in cards up to 80 mm (2280). In addition, four SATA 6G connectors are provided for additional drives.

Modern connections and lighting control

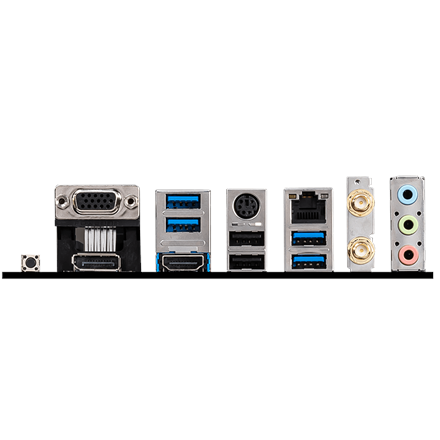

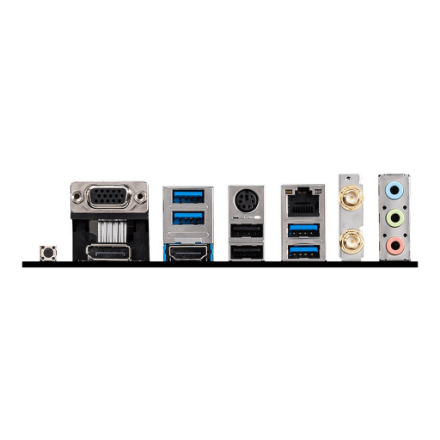

The MSI B550M Pro-VDH WiFi provides four USB 3.0 ports with type-A socket and two USB 2.0 ports on the I/O panel. For CPUs with an integrated graphics unit, a VGA, an HDMI, and a DisplayPort connection are available. A classic PS/2 connection for mouse or keyboard is also present.

Furthermore, this B550 motherboard offers features such as a WLAN/BT module with IEEE 802.11ac and Bluetooth 4.2 (Intel Dualband Wireless-AC 3168), Gigabit LAN (Realtek RTL8111HN), on-board sound (Realtek ALC892 audio codec), a reinforced PCI slot for the graphics card, as well as numerous internal headers.

The MSI B550M Pro-VDH WiFi is not illuminated, but external RGB components can be controlled and synchronised via the manufacturer’s software. The motherboard has two 4-pin RGB headers and two 3-pin RGB headers. Additionally, a total of five fans can be connected directly to the board and controlled.
