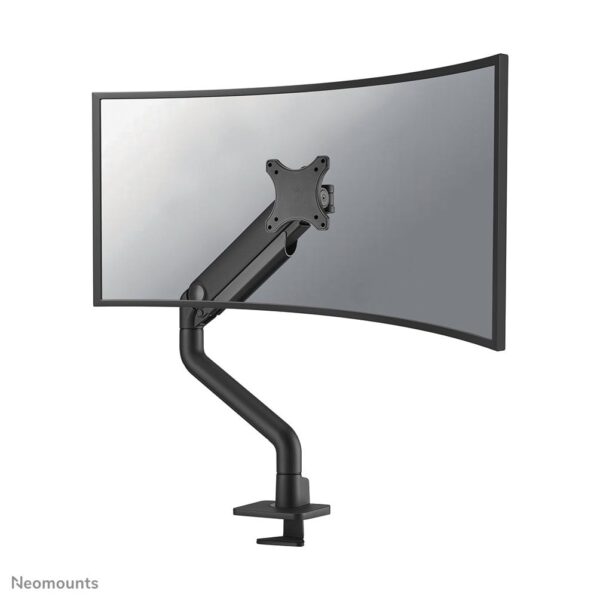

The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49″. The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.
The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75×75 or 100×100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Specifikacija
| Summary | Neomounts DS70S-950BL1 Monitor arm 17-49" – gas spring – Topfix – 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 – 90°, Tilt angle range: -90 – 90°. Product colour: Black |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70S-950BL1 |
| Category Code | MAS |
| CnCode | 83021000 |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.48 |
| Unit Box Width | 0.17 |
| Clamp mount desk thickness (max) | 50 |
| Desk thickness (max) | 55 |
| Desk thickness (min) | 10 |
| Distance to the wall (max) | 656 |
| Distance to the wall (min) | 119 |
| Grommet mount desk thickness (max) | 55 |
| Maximum screen size | 49 |
| Maximum VESA mount | 100 x 100 |
| Maximum weight capacity | 18 |
| Maximum weight capacity (per curved/ultra-wide display) | 15 |
| Maximum weight capacity (per display) | 18 |
| Minimum screen size | 17 |
| Minimum VESA mount | 75 x 75 |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 |
| Adjustable depth | Yes |
| Angle of rotation | 360 |
| Cable management | Yes |
| Depth adjustment range | 88 – 625 |
| Height adjustment | Yes |
| Height adjustment range | 200 – 520 |
| Height adjustment type | Gas spring |
| Number of arms | 1 |
| Pivot angle | -180 – 180 |
| Rotating | Yes |
| Swivel angle range | -90 – 90 |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -90 – 90 |
| Width adjustment | 1074 |
| Easy to install | Yes |
| Housing material | Aluminium |
| Product colour | Black |
| Depth | 656 |
| Height | 579 |
| Weight | 3720 |
| Width | 135 |
| Package depth | 122 |
| Package height | 423 |
| Package net weight | 4300 |
| Package type | Box |
| Package weight | 4300 |
| Package width | 333 |
| Minimum weight | 1 |
| Warranty period | 10 |
| Width adjustment range | 0 – 1074 |
| Country of origin | China |
| Harmonized System (HS) code | 7616991099 |
| Master (outer) case gross weight | 17900 |
| Master (outer) case height | 490 |
| Master (outer) case length | 290 |
| Master (outer) case net weight | 14900 |
| Master (outer) case width | 355 |
| Products per master (outer) case | 4 |
| Products per pallet (EU) | 80 |
| Model | DS70S-950BL1 |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.0131 |
| Unit Calculated Weight | 4.5 |
