MONITOR ACC DESK MOUNT 17-49″/DS70PLUS-450WH1 NEOMOUNTS
163,41 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-04-13*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas

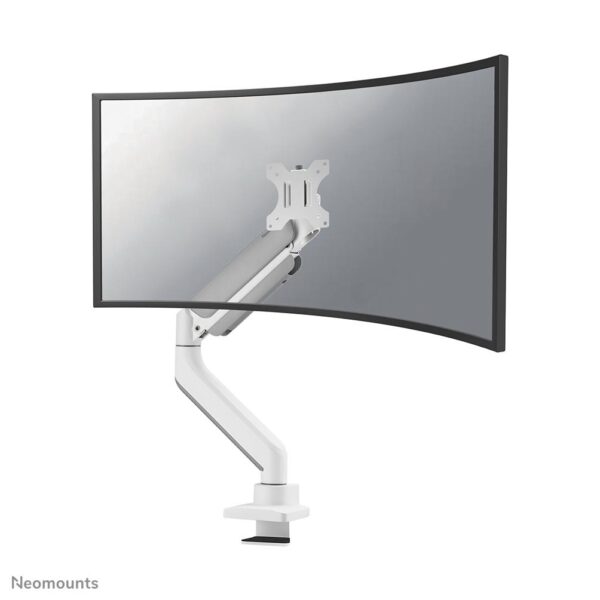

The Neomounts DS70PLUS-450WH1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49″. The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (5,4-49,7 cm), to create the perfect working position.
The DS70PLUS-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it’s placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70PLUS-450WH1 is suitable for screens that meet VESA hole pattern 75×75 or 100×100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Specifikacija
| Summary | Neomounts DS70PLUS-450WH1 Monitor arm 17-49" – gas spring – Topfix – 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 – 90°, Tilt angle range: -45 – 45°. Product colour: White |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70PLUS-450WH1 |
| Category Code | MAS |
| CnCode | 83021000 |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.285 |
| Desk thickness (max) | 45 |
| Desk thickness (min) | 10 |
| Distance to the wall (max) | 568 |
| Distance to the wall (min) | 108 |
| Maximum screen size | 49 |
| Maximum VESA mount | 100 x 100 |
| Maximum weight capacity | 18 |
| Maximum weight capacity (per curved/ultra-wide display) | 14 |
| Maximum weight capacity (per display) | 18 |
| Minimum screen size | 17 |
| Minimum VESA mount | 75 x 75 |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 |
| Adjustable depth | Yes |
| Angle of rotation | 360 |
| Cable management | Yes |
| Depth adjustment range | 54 – 511 |
| Height adjustment | Yes |
| Height adjustment range | 261 – 555 |
| Height adjustment type | Gas spring |
| Pivot angle | -180 – 180 |
| Rotating | Yes |
| Swivel angle range | -90 – 90 |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 – 45 |
| Width adjustment | 920 |
| Housing material | Steel |
| Product colour | White |
| Depth | 568 |
| Height | 653 |
| Weight | 3980 |
| Width | 120 |
| Package depth | 127 |
| Package height | 445 |
| Package net weight | 5100 |
| Package type | Box |
| Package weight | 5100 |
| Package width | 280 |
| Quantity per pack | 1 |
| Minimum weight | 1 |
| Width adjustment range | 0 – 920 |
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 20500 |
| Master (outer) case height | 580 |
| Master (outer) case length | 275 |
| Master (outer) case net weight | 16000 |
| Master (outer) case width | 460 |
| Products per master (outer) case | 4 |
| Products per pallet (EU) | 64 |
| Model | DS70PLUS-450WH1 |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.0183425 |
| Unit Calculated Weight | 5.05 |
