MSI Motherboard X870E GAMING PLUS WIFI AM5 4DDR5 ATX

Aprašymas

Processor :

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 8000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Features :

Motherboard chipset family: AMD

Motherboard form factor: ATX

Motherboard chipset: AMD X870E

Memory :

Number of memory slots: 4

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Ecc сompatibility: Non-ECC

Maximum internal memory: 256 GB

Weight & dimensions :

Depth: 243_8 mm

Width: 304_8 mm

Network :

Ethernet lan: Yes

Top wi-fi standard: Wi-Fi 7 (802_11be)

Wi-fi: Yes

Wi-fi standards: Wi-Fi 4 (802_11n)

Bluetooth version: 5_4

Bluetooth: Yes

Internal I/O :

Cpu fan connector: Yes

Tpm connector: Yes

Number of chassis fan connectors: 6

Usb 3_2 gen 1 (3_1 gen 1) type-a ports quantity: 4

Rgb led pin header: Yes

Number of sata iii connectors: 4

Atx power connector (24-pin): Yes

Usb 3_2 gen 2 (3_1 gen 2) type-c ports quantity: 1

Number of cpu fan connectors: 1

Usb 2_0 connectors: 6

Storage controllers :

Raid levels: 5

Raid support: Yes

Supported storage drive interfaces: M_2, SATA III

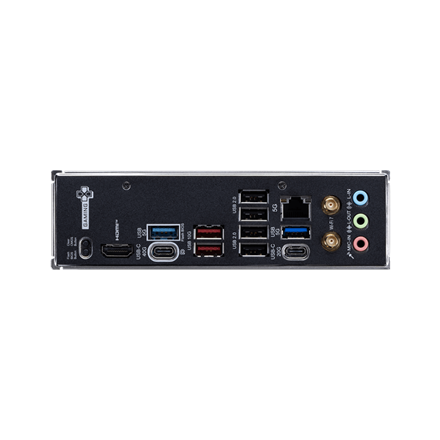

Rear panel I/O ports :

Hdmi version: 2_1

Usb 2_0 ports quantity: 4

Usb 3_2 gen 2 (3_1 gen 2) type-a ports quantity: 2

Hdmi ports quantity: 1

Ethernet lan (rj-45) ports: 1

Usb 3_2 gen 1 (3_1 gen 1) type-a ports quantity: 2

Number of usb 3_2 gen 2×2 (3_1 gen 2×2) type-c ports: 1

Usb4 gen 3×2 ports quantity: 1

Expansion slots :

Pci express x16 (gen 3_x) slots: 3

Pci express x1 slots: 1
