MSI PRO X870E-P WIFI | Processor family AMD | Processor socket AM5 | DDR5 UDIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4

Aprašymas

Processor :

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 8000 Series

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Features :

Motherboard chipset: AMD X870E

Audio output channels: 7_1 channels

Windows operating systems supported: Windows 11 x64

Motherboard form factor: ATX

Product colour: Black

Motherboard chipset family: AMD

Memory :

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Maximum internal memory: 256 GB

Supported memory clock speeds: 8200 MHz

Supported memory clock speed (max): 8200 MHz

Ecc сompatibility: Non-ECC

Weight & dimensions :

Width: 243_8 mm

Depth: 304_8 mm

Network :

Bluetooth: Yes

Wi-fi standards: Wi-Fi 6 (802_11ax)

Wi-fi: Yes

Bluetooth version: 5_4

Top wi-fi standard: Wi-Fi 7 (802_11be)

Ethernet lan: Yes

Internal I/O :

Atx power connector (24-pin): Yes

Number of sata iii connectors: 4

Tpm connector: Yes

Total number of sata connectors: 4

Rgb led pin header: Yes

Cpu fan connector: Yes

Usb 3_2 gen 1 (3_1 gen 1) type-a ports quantity: 4

Usb 3_2 gen 2 (3_1 gen 2) type-c ports quantity: 1

Usb 2_0 connectors: 6

Storage controllers :

Supported storage drive interfaces: M_2, SATA III

Supported storage drive types: HDD & SSD

Raid support: Yes

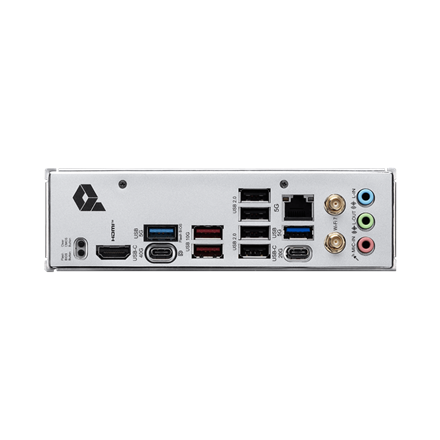

Rear panel I/O ports :

Ethernet lan (rj-45) ports: 1

Usb 3_2 gen 2 (3_1 gen 2) type-a ports quantity: 2

Usb 2_0 ports quantity: 4

Usb 3_2 gen 2×2 type-c ports quantity: 1

Usb4 gen 3×2 ports quantity: 1

Usb 3_2 gen 1 (3_1 gen 1) type-a ports quantity: 2

Hdmi ports quantity: 1

Hdmi version: 2_1

Expansion slots :

Pci express x16 slots: 3

Pci express x1 slots: 1

Number of m_2 (m) slots: 3

1st m_2 largest key size: 2280

2nd m_2 largest key size: 2280

2nd m_2 highest pci express generation: 4_0

3rd m_2 largest key size: 22110

3rd m_2 highest pci express generation: 4_0

1st m_2 highest pci express generation: 5_0
