Mainboard|ASUS|AMD B840|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|PRIMEB840M-AWIFI

Prekės kodas: @2300331

0 out of 5

( Atsiliepimų dar nėra. )

149,95 €

Užsakomoji prekė.

Numatoma atsiėmimo*/išsiuntimo** data:

2026-04-16

*atsiėmimo taške Ozo g. 20, Vilnius

**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo

PRATĘSTA GARANTIJA

Aprašymas
Atsiliepimai (0)

Aprašymas

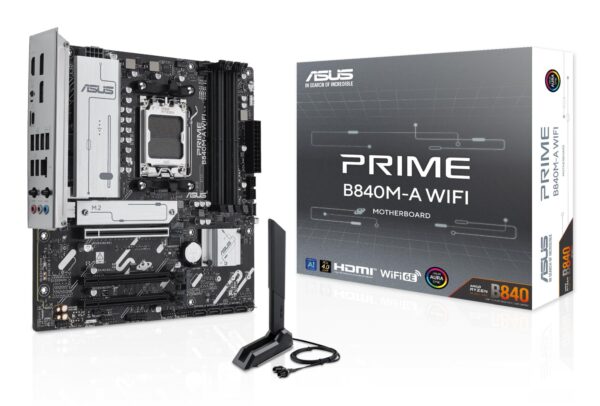

B840M-A WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifikacija

Summary	ASUS PRIME B840M-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Vendor Homepage	https://www.asus.com/motherboards-components/motherboards/all-series/prime-b840m-a-wifi/
Category Code	MBA
CnCode	84733020
Unit Box Height	0.273
Unit Box Length	0.281
Unit Box Width	0.071
Audio output channels	7.1
Component for	PC
Motherboard chipset	AMD B840
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64/Windows 11
Compatible processor series	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer	AMD
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	192
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	7
RAID levels	0/1/10/5
RAID support	Yes
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
Number of chassis fan connectors	3
Number of COM connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
WiFi-AP antenna jack	1
Bluetooth	Yes
Bluetooth version	5.3
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	3.0
3rd M.2 largest key size	2280
Number of M.2 (M) slots	3
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
BIOS memory size	256
BIOS type	UEFI AMI
Package depth	275
Package height	67.5
Package weight	1520
Package width	275
Depth	244
Width	244
Antenna included	Yes
Cables included	SATA
Screws included	Yes
Model	PRIME B840M-A WIFI
Units per Shipping Box	10
Unit Calculated Volume	0.006245
Unit Calculated Weight	1.55
