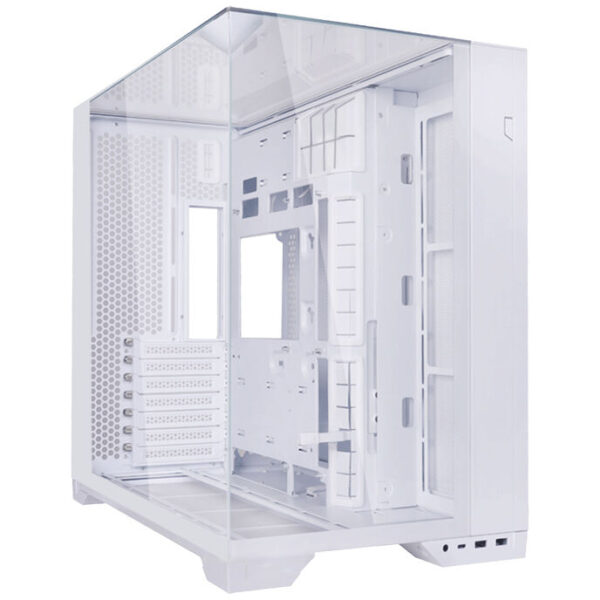

Lian Li O11 Vision Compact PC Case, Mid Tower, E-ATX, Tempered Glass – White
Prekės kodas: @1279897
O11VPW
134,89 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-03*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Compact dual-chamber mid tower, developed by Lian Li and PCMR, seamless tempered glass on three sides, alternative top cover for enhanced cooling, supports 3x 360-mm radiators simultaneously, up to 11x 120-mm fans, 1x USB-C 3.1 and 2x USB-A 3.0 on the front panel
The Lian Li O11 Vision Compact is the perfect case to showcase your gaming PC on your desk. It accommodates powerful hardware and the necessary cooling, while the three glass side panels offer a clear view of your build. As a bonus, the Vision Compact comes with an additional top cover to enhance cooling options.
- Compact Mid Tower in White with Tempered Glass on Three Sides
- Customisable with Two Different Top Covers
- Supports E-ATX, ATX, Micro-ATX, or Mini-ITX Motherboards
- Space for Graphics Cards up to 408 mm in Length and ATX Power Supplies up to 220 mm
- Up to Eleven 120-mm Fans in Mesh Mode or Eight in Vision Mode
- Three Mounting Slots for 360-mm Radiators
- Clever Dual-Chamber Design for Improved Airflow and a Tidy Look
- Space for 2x 2.5-Inch SSDs and 2x 2.5-/3.5-Inch HDDs
- I/O Panel with 2x USB-A 3.0 and 1x USB-C for Quick Access
The Lian Li O11 Vision Compact: A Compact Showcase for Enthusiasts
After the success of the O11 Vision, Lian Li and PCMR teamed up again to create a PC case designed to meet the demands of enthusiasts. The result is the Lian Li O11 Vision Compact.
With a volume reduced by around 10 litres compared to the O11 Vision, the Lian Li O11 Vision Compact brings the hardware closer together and closer to the glass for spectacular builds. With support for back connect, the clever cable management, including routing for hidden AIO tubing, contributes to a sleek modern aesthetic.
For maximum flexibility, the Lian Li O11 Vision Compact offers two different top covers: choose between stylish tempered glass for a fishtank look or a top cover with an integrated mount for an additional radiator and up to three fans.
Mesh Mode or Vision Mode with Interchangeable Top Cover
The standard configuration is called Vision Mode and comes with three tempered glass panels. Three 120-mm fans or up to 360-mm radiators can be installed at the side and bottom of the mid tower. Two 120-mm fans can also be mounted at the rear. In total, this version supports two 360-mm radiators and eight 120-mm fans.
The alternative configuration, called Mesh Mode, expands cooling options. The alternative top cover can hold a radiator up to 98 mm thick in 360- or 280-mm format. Alternatively, three 120-mm or two 140-mm fans can be installed. In this configuration, the case can accommodate three 360-mm radiators and eleven 120-mm fans.
The Lian Li O11 Vision Compact supports CPU coolers up to 167 mm in height. A removable dust filter at the bottom of the case keeps the interior clean.
Room for High-Performance Gaming Hardware
The motherboard tray of the Lian Li O11 Vision Compact supports an E-ATX motherboard up to 280 mm wide. Thanks to specific cutouts, the mid tower also supports back-connect motherboards such as the ASUS BTF or MSI Project Zero for a flawless aesthetic.
The Vision Compact offers seven expansion slots and space for graphics cards up to 408 mm in length, making it ideal for high-end GPUs. It also provides room for a 220-mm-long power supply in the second chamber.
The hard drive cage holds two 3.5- or 2.5-inch drives, and two 2.5-inch SSDs can be mounted on a bracket in the second chamber.
- Dimensions: 287.5 x 446.4 x 447.5 mm (W x H x D)
- Material: Steel (interior), aluminium (front, side), tempered glass (front, side, top)
- Weight: approx. 11.35 kg
- Colour: White
- Form factor: E-ATX (up to 280 mm), ATX, Micro-ATX, Mini-ITX
- Fans supported:
Top: 3x 120 / 2x 140 mm
Side: 3x 120 mm
Bottom: 3x 120 mm
Rear: 2x 120 mm - No pre-installed fans
- Radiator mounts:
Top: 1x max. 360 / 280 mm
Side: 1x max. 360 mm
Bottom: 1x max. 360 mm - Dust filter: Bottom
- Drive bays:
2x 3.5- / 2.5-inch drives (internal)
2x 2.5-inch drives (internal) - Power supply: ATX (optional)
- Expansion slots: 6+1
- I/O panel:
1x USB-C 3.1 (internal)
2x USB-A 3.0 (internal)
1x 3.5 mm jack (4-pole, TRRS, audio in/out)
Power button - Maximum graphics card length: 408 mm
- Maximum CPU cooler height: 167 mm
- Maximum power supply length: 220 mm
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
447.5 mm
|
|
Width
|
287.5 mm
|
|
Height
|
446.4 mm
|
|
Weight
|
11.35 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
167 mm
|
|
Max. GPU Length
|
408 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear side / top
|
|
Fan Support
|
|
|
120 mm fans
|
11
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
3x Triple (360 mm)
|
|
Drive Bays
|
|
|
2.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Card reader
|
No
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Materials
|
|
|
Materials
|
Aluminium, SPCC (steel), Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Included fans
|
None
|
