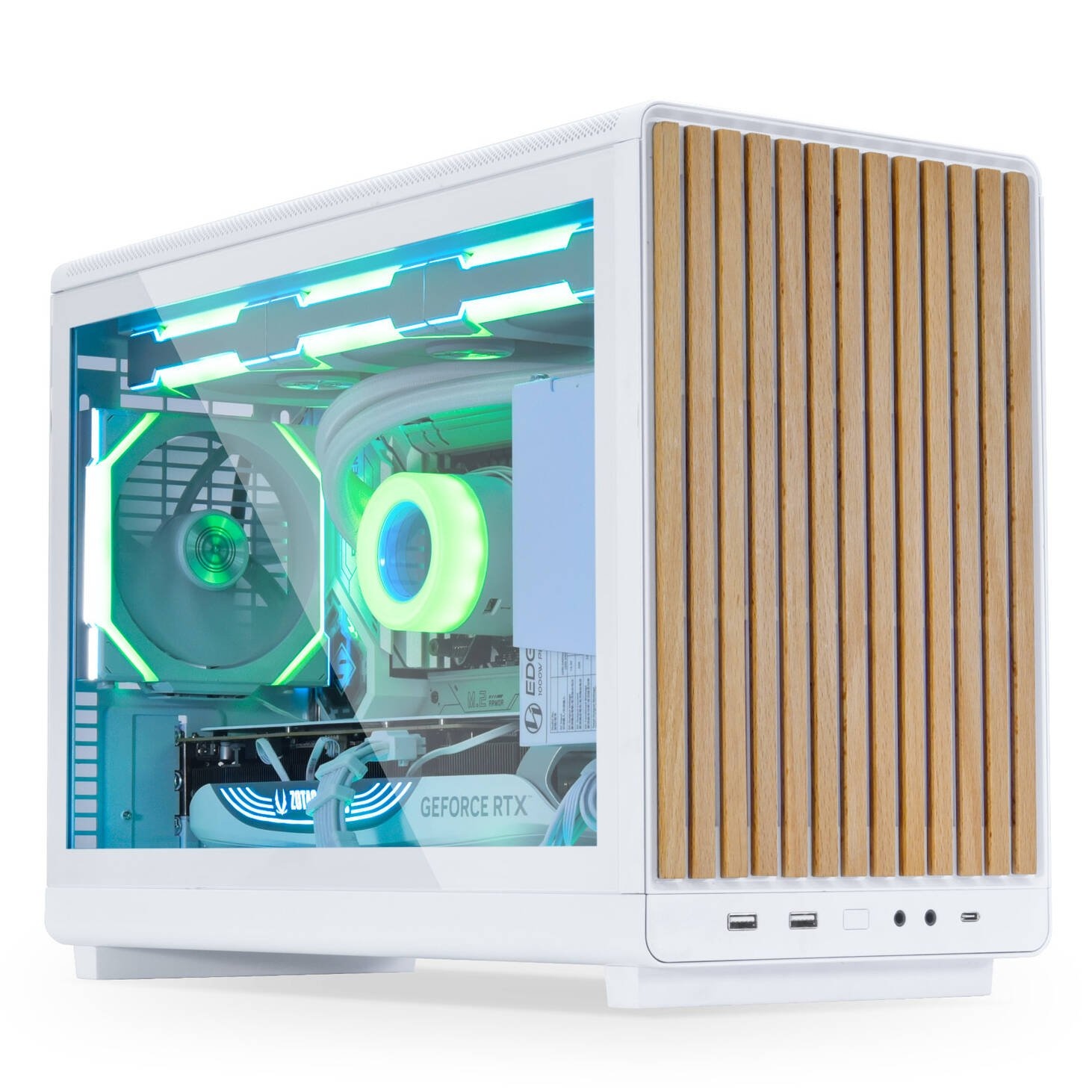

Lian Li DAN kompiuterio korpusass A3-mATX Wood Edition PC-kompiuterio korpusas, Tempered Glass, Micro-ATX – Buche, baltos spalvos
Prekės kodas: 1243213
A3W-WDG
90,75 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
The Lian Li DAN Cases A3-mATX Wood Edition in white combines minimalist design with luxurious functionality. With its elegant beechwood front, excellent airflow through mesh panels, and flexible customisation options, it is the perfect choice if you want a powerful, compact setup.
- White Micro-ATX case by Lian Li in collaboration with DAN Cases
- Elegant front cover made of fine beechwood and tempered glass side panel
- Mesh panel on the top for excellent airflow
- Flexible customisation: let your imagination run free
- Excellent cooling thanks to space for 360 mm radiators
- Suitable for motherboards in Micro-ATX or Mini-ITX form factors
- Supports various power supplies from SFX to ATX
A Touch of Luxury: The Lian Li DAN Cases A3-mATX Wood Edition in White
If you are looking for a small form factor case for high-performance PC hardware, you should take a closer look at the Lian Li DAN Cases A3-mATX Wood Edition. This white case combines minimalist design with luxurious features: the noble beechwood front adds a touch of exclusivity to your setup.
With a capacity of about 26 litres, this white Micro-ATX case is compact and space-saving. At the same time, the A3-mATX Wood Edition is also perfect for high-end PC components, as it provides effective cooling despite its small size. Thanks to ample space for fans and radiators and generous ventilation openings, this mini tower easily meets the demands of powerful hardware.
Flexibility Meets Performance: The Fan and Cooling Options of the Lian Li DAN Cases A3-mATX Wood Edition in White
The white Lian Li DAN Cases A3-mATX Wood Edition offers space for up to 10 fans in the 120 mm format. These are distributed as follows: three on the top, three on the side, three at the bottom, and one at the rear. Alternatively, two 140 mm fans can be mounted on both the top and the side. With 25 mm thick fans at the case bottom, the GPU height is limited to 61 mm (3 slots). CPU air coolers may have a maximum height of 165 mm.
Lian Li and Daniel Hansen from DAN Cases also considered water cooling when developing the A3-mATX: a radiator can be installed in three locations inside the case. At the top or the side, there is space for a maximum 360 mm (triple radiator) or 280 mm (dual radiator), respectively.
You must choose one of these two positions. At the bottom, the white case offers space for an additional 240 mm radiator. If you mount the fans below the radiator, you can even install a 360 mm radiator.
Customisable Configuration: The Versatile Options of the Lian Li DAN Cases A3-mATX Wood Edition
The Lian Li DAN Cases A3-mATX in white is suitable for a motherboard in the Micro-ATX or Mini-ITX form factor. Unlike a Mini-ITX case, this PC case allows the installation of a 4-slot high and up to 415 mm long graphics card thanks to its 4 expansion slots.
The drive cage provides space for two 2.5-inch SSDs. At the bottom of the white case, you can additionally mount a 3.5-inch HDD or another 2.5-inch drive. Choose between an ATX, SFX-L, or SFX power supply and attach it flexibly at the front or on the side to create extra space for your graphics card or radiator – entirely according to your needs. With the A3-mATX, the smaller your power supply, the more room remains for the other hardware.
The I/O panel on the front of the Lian Li DAN Cases A3-mATX Wood Edition – white offers two USB 3.0 Type-A ports, one USB 3.1 Type-C port, two 3.5 mm jack sockets (mic-in/audio-out), and a power button for switching on.
Colour | |
Primary Colour | White |
Dimensions | |
Length / Depth | 443 mm |
Width | 194 mm |
Height | 321.5 mm |
Weight | 5 kg |
Case | |
Case Type | Mini Case |
Motherboard Support | |
Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
Max. Motherboard Format | Micro-ATX |
Internal Dimensions | |
Max. CPU Cooler Height | 165 mm |
Max. GPU Length | 415 mm |
Max. PSU Length / Depth | 220 mm |
Display | |
Display Included | No |
Power Supply | |
PSU included | No |
PSU Format | ATX, SFX, SFX-L |
Power Supply Position | Internal |
Fan Support | |
120 mm fans | 10 |
140 mm fans | 4 |
Radiator Support | |
Max. Radiator Compatibility | 2x Triple (360 mm) |
Drive Bays | |
2.5 inch internal drive bay | 2 |
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) | 1 |
Hot swap drive bays | No |
External Ports | |
USB 3.1 (external) Type C | 1 |
USB 3.0 (external) Type A | 2 |
Audio outputs & inputs | 1x output + 1x input (3.5 mm jack, 3-pin, TRS) |
Card reader | No |
Case Features | |
I/O position | Front |
Side panel | with window |
Front door | No |
Cable Management | Yes |
Filters Included | Yes |
Back Connect | |
Back Connect | No |
Expansion Slots | |
Expansion slots / PCI slots | 4 |
Fan Header | |
Fan Controller / Fan Hub | No |
Materials | |
Materials | Plastic, SPCC (steel), Tempered Glass, Wood |
Lighting | |
Lighting / RGB | No |
