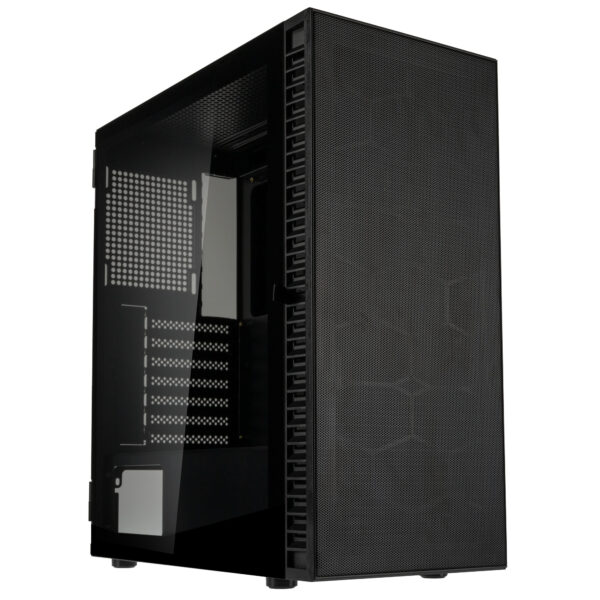

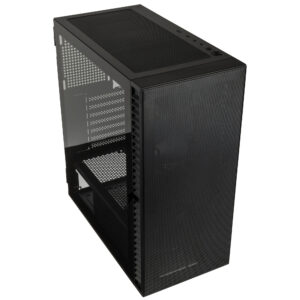

Kolink Observatory HF Mesh Core Mid Tower – black
Prekės kodas: @1750996
OBSERVATORY HF CORE MB
43,30 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Mid Tower PC case in ATX form factor, made of steel and plastic, side panel with magnetic closure, fine mesh front panel, GPU support up to 330 mm, suitable for 360 mm radiator
- Mid Tower PC case with excellent airflow
- Supports ATX motherboards and GPUs up to 330 mm in length
- Stylish glass side panel with air intakes for optimal airflow
- Drive bays for up to four 2.5-inch drives
- Integrated cable management for neat cable routing
- Comprehensive front I/O with fan control support
The Kolink Observatory HF Mesh Core Mid Tower: Focused on Airflow
Enhance the performance of your gaming PC at an affordable price with the Kolink Observatory HF Core PC case. This mid tower offers extensive support for powerful gaming hardware and numerous cooling options. The intelligently designed interior provides maximum flexibility and facilitates the assembly of your new build. The PSU cover and cable grommets ensure a tidy aesthetic – neat and functional!
Thanks to its side air intakes and fine mesh front panel, the Kolink Observatory HF Core features excellent airflow to keep your hardware cool. This mid tower case is made from high-quality materials. The chassis is made of steel, while the right side panel is fully made of tempered glass. The side panel is hinged and thus swivels to provide easy access for installation and upgrades.
Note:This case does not come with pre-installed fans. This saves you costs and gives you complete freedom in fan selection.
Space for Powerful Gaming Hardware
The Kolink Observatory HF Mesh Core offers extensive support for your gaming hardware. It supports ATX, Micro-ATX, and Mini-ITX motherboard form factors, providing broad compatibility. There are seven PCI expansion slots and space for high-end GPUs up to 330 mm in length and CPU coolers up to 160 mm in height.
In addition to space for power supplies up to 180 mm in length, the case also offers four drive bays, allowing versatile storage solutions. Two bays can accommodate either 2.5-inch or 3.5-inch drives, while the other two are exclusively for 2.5-inch SSDs.
Optimized Airflow for Your Gaming PC
At the front, you can mount up to three 120 mm or 140 mm fans or a radiator up to 360 mm. The top supports either two 120 mm or 140 mm fans, and the PSU cover can hold up to two 120 mm fans. At the rear, you can install a 120 mm fan or a 120 mm radiator.
ATX Case with Numerous Connectivity Options
The Kolink Observatory HF Mesh Core features one USB 3.0 and two USB 2.0 ports as part of the front I/O panel for your peripherals or USB drives. This also includes an HD audio jack as well as power and reset buttons. Fan control is managed via the reset button or through a 3-pin ARGB cable on your main fan.
- Dimensions: 200 x 449 x 390 mm (W x H x D)
- Material: Tempered Glass, Steel, Plastic
- Weight: 5.25 kg
- Color: Black
- Form Factor: Mini-ITX / Micro-ATX / ATX
- Total possible fans:
Front: 3x 120 mm / 3x 140 mm
Top: 2x 120 mm / 2x 140 mm
Rear: 1x 120 mm
PSU cover: 2x 120 mm - Pre-installed fans: None
- Possible radiators:
Front: 360 / 240 / 140 / 120 mm
Rear: 120 mm - Dust filters: Bottom / Top
- Drive bays:
2x 3.5-inch / 2.5-inch (HDD cage)
2x 3.5-inch / 2.5-inch (Motherboard tray)
2x 2.5-inch (Motherboard tray) - PCI slots: 7
- I/O panel: 2x USB 2.0
1x USB 3.0
3.5 mm audio jack - CPU cooler: Up to 160 mm height
- Max GPU length: 330 mm
- Max PSU length: 180 mm
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
390 mm
|
|
Width
|
200 mm
|
|
Height
|
449 mm
|
|
Weight
|
5.25 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
160 mm
|
|
Max. GPU Length
|
330 mm
|
|
Max. PSU Length / Depth
|
180 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (2x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
8
|
|
120 mm fans
|
8
|
|
140 mm fans
|
5
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
6
|
|
Max. 3.5 Inch Drives
|
4
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
3.5 inch external drive bay
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type A Ports Total
|
3
|
|
USB 3.0 (external) Type A
|
1
|
|
USB 2.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer’s compatibility information. You can find the latest overview on the manufacturer’s website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
SPCC (steel), Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
