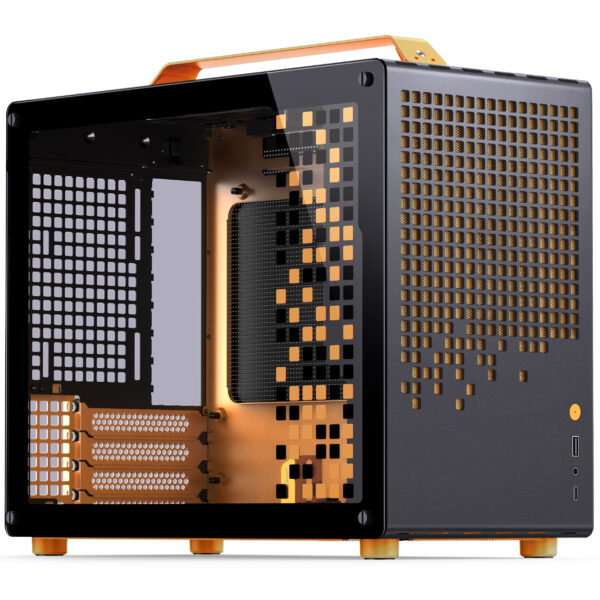

Jonsplus Z20 Micro-ATX kompiuterio korpusas, mit Tragegriff – juodos spalvos/oranžinės spalvos

Aprašymas

• • Compact dimensions, including carrying handle – perfect for on the go
  • High-quality steel, front and lid with fine perforations for airflow
  • Excellent workmanship
  • Space for 240mm radiators
  • Supports full-size gaming graphics cards
  • Supports Mini-ITX and Micro-ATX motherboards
  • Space for powerful SFX power supplies

  Excellent use of space and consistently well-thought-out design

  Assembling a compact desktop mini case is not only fun but also comes with some challenges. As the case size decreases, conflicts such as compatibility, heat dissipation, and assembly experience increase.

  Compact design with high compatibility

  The case material is up to 2 mm thick and features numerous mesh openings to improve heat dissipation while also providing a visual treat.

  The removable handle, 2 mm thick, allows for easy mobility and can be mounted and dismounted effortlessly without affecting internal hardware installation. It is attached to the case via a screwless hook connection, so no screw holes spoil the appearance after removal.

  Space-saving yet powerful

  With a volume of only about 20 litres, it fits easily into various desktop environments. The main dimensions are 370 mm x 186 mm x 295 mm (depth/width/height, without handles/feet or other protrusions) and enable compatibility with full-size Micro-ATX motherboards and long graphics cards, nearly matching the dimensions of an ITX case.

  Top performance even in tight spaces

  It supports 240 mm radiators with a thickness of 30 mm. The pull-out bracket facilitates installation and effectively reduces the difficulty of hardware installation in confined spaces.

  The Z20 case is compatible with CPU coolers up to 164 mm in height. Combined with top-mounted fans and a rear fan, CPU heat can be quickly dissipated.

  Important: When installing an Intel CPU, the cooler height limit is 164 mm; for AMD CPUs, the cooler height limit is 163 mm.

  Technical Details:

  • Dimensions: 370 mm x 186 mm x 295 mm (W x H x D)
  • Colour: Black, Orange
  • Material: 2 mm steel
  • Weight: 3.7 kg
  • Motherboard form factors: Mini-ITX, Micro-ATX
  • Maximum radiator size: 240 mm
  • Drive bays:
    Up to 3x 2.5-inch, up to 1x 3.5-inch
  • Expansion slots: 4
  • I/O panel:
    1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
    1x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
  • Maximum CPU cooler height: 164 mm
  • Maximum graphics card length: 363 mm
  • Note: Due to the compact design, there is limited space for the graphics card power connector. Since it should not be bent, special 12VHPWR adapters such as those from Cablemod are recommended.
  Specification

  Colour
  Primary Colour	Black
  Secondary Colour	Orange
  Dimensions
  Length / Depth	295 mm
  Width	370 mm
  Height	186 mm
  Weight	5 kg
  Case
  Case Type	Mini Case
  Motherboard Support
  Compatible Motherboard Formats	Micro-ATX, Mini-ITX
  Max. Motherboard Format	Micro-ATX
  Internal Dimensions
  Max. CPU Cooler Height	194 mm
  Max. GPU Length	363 mm
  Max. PSU Length / Depth	180 mm
  Display
  Display Included	No
  Power Supply
  PSU included	No
  PSU Format	ATX, SFX, SFX-L
  Power Supply Position	front
  Fan Support
  Max. Number of Fans	5
  92 mm fans	1
  120 mm fans	5
  140 mm fans	4
  Radiator Support
  Max. Radiator Compatibility	1x Dual (240 mm)
  Drive Bays
  Max. 2.5 Inch Drives	3
  Max. 3.5 Inch Drives	1
  Max. 5.25 Inch Drives	0
  Hot swap drive bays	No
  External Ports
  USB 3.1 (external) Type C	1
  USB 3.0 (external) Type A	1
  Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
  Card reader	No
  Case Features
  I/O position	Front
  Side panel	with window
  Vertical GPU Mount	No
  Adjustable Vertical GPU Bracket	No
  Riser Cable Included	No
  Front door	No
  Cable Management	Yes
  Filters Included	Yes
  Noise dampening	No
  Mainboard slide / tray	No
  Transport System	Yes
  Back Connect
  Back Connect	No
  Expansion Slots
  Expansion slots / PCI slots	4
  Features
  Housing Feedthrough	No
  Fan Header
  Fan Controller / Fan Hub	No
  Mounting
  Case VESA Mountable	No
  Internal Monitor Mount	No
  Materials
  Materials	Aluminium, Plastic, SPCC (steel), Tempered Glass
  Lighting
  Lighting / RGB	No
  Additional Contents
  Included fans	None
