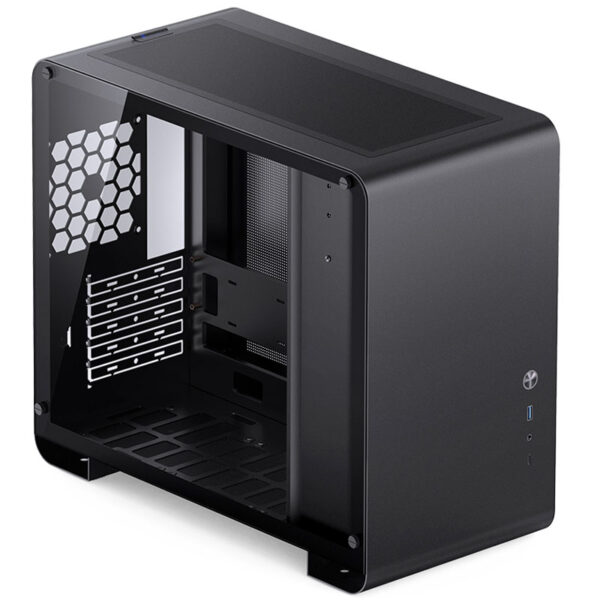

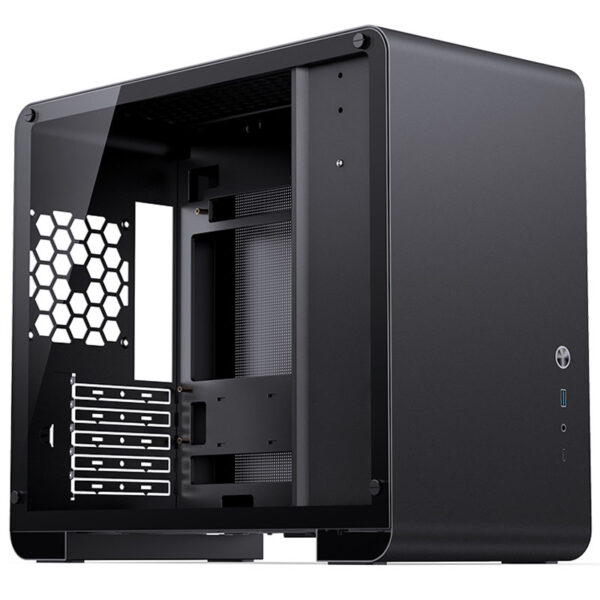

Jonsbo U4 Mini Micro-ATX-kompiuterio korpusas, Tempered Glass – juodos spalvos

Aprašymas

• • Elegant micro-ATX case in black from Jonsbo
  • Stylish side panel made of tempered glass
  • Space for mini-ITX and micro-ATX boards
  • Room for graphics cards from 330 to 429 mm
  • With space for long ATX power supplies up to 200 mm
  • Four slots for graphics and expansion cards
  • For one 2.5-inch and one 3.5-inch drive

  The features of the Jonsbo U4 Mini micro-ATX case in detail

  Externally, the U4 Mini from Jonsbo impresses with its understated and clear design, the stylish side panel made of tempered glass, and its flawless workmanship. The micro-ATX case offers a power switch on the right side, one USB-C 3.1 and one USB 3.0 port, as well as a combined audio jack. The micro-ATX case provides plenty of space for powerful hardware and showcases it effectively.

  With dimensions of 222 by 385 by 440 millimetres, the U4 Mini from Jonsbo is still quite compact, but it can accommodate full-sized gaming hardware inside. In addition to a mini-ITX and micro-ATX motherboard, there is also room for graphics cards up to 420 millimetres long. With four slots, there is enough space for expansion cards such as capture cards or sound cards.

  The U4 Mini can accommodate up to one 2.5-inch and one 3.5-inch drive in total. For cooling, two 140 mm or three 120 mm fans can be mounted at the bottom and one 120 mm fan at the rear. Three additional 120 mm fans can fit in the top of the elegant case and enhance the natural chimney effect, which benefits the cooling of all components. The power supply is housed at the front of the case and can be up to 220 mm long. There is sufficient space of 165 mm for common CPU coolers.

  Specification

  • Dimensions: 222 x 385 x 440 mm (W x H x D)
  • Material: Steel, tempered glass
  • Weight: approx. 6 kg
  • Colour: Black
  • Motherboard form factor: Mini-ITX, micro-ATX
  • Fans (possible):
    3x 120 mm (top)
    1x 120 mm (rear)
    3x 120 / 2x 140 mm (bottom)
  • Fans (pre-installed): none
  • Drive bays:
    1x 2.5 inch
    1x 3.5 inch
  • Power supply: ATX (optional)
  • Expansion slots: 4
  • I/O panel:
    1x USB-C 3.1
    1x USB-A 3.0
    1x HD audio
    1x power switch
  • Maximum CPU cooler height: 165 mm
  • Maximum graphics card length: 420 mm
  • Maximum power supply length: 200 mm

  Colour
  Primary Colour	Black
  Secondary Colour	Transparent
  Dimensions
  Length / Depth	440 mm
  Width	222 mm
  Height	385 mm
  Weight	6 kg
  Case
  Case Type	Mini Case
  Motherboard Support
  Compatible Motherboard Formats	Micro-ATX, Mini-ITX
  Max. Motherboard Format	Micro-ATX
  Internal Dimensions
  Max. CPU Cooler Height	165 mm
  Max. GPU Length	420 mm
  Max. PSU Length / Depth	200 mm
  Display
  Display Included	No
  Power Supply
  PSU included	No
  PSU Format	ATX
  Power Supply Position	Internal
  Fan Support
  120 mm fans	7
  140 mm fans	2
  Radiator Support
  Max. Radiator Compatibility	no
  Drive Bays
  2.5 inch internal drive bay	1
  3.5 inch internal drive bay	1
  Hot swap drive bays	No
  External Ports
  USB 3.1 (external) Type C	1
  USB 3.0 (external) Type A	1
  Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
  Card reader	No
  Case Features
  I/O position	Front
  Side panel	closed
  Front door	No
  Cable Management	No
  Filters Included	No
  Noise dampening	No
  Mainboard slide / tray	No
  Remote included	No
  Transport System	No
  Features
  Housing Feedthrough	No
  Materials
  Materials	Steel, Tempered Glass
  Lighting
  Lighting / RGB	No
  Fan / RGB control	No
  Additional Contents
  Included fans	None
