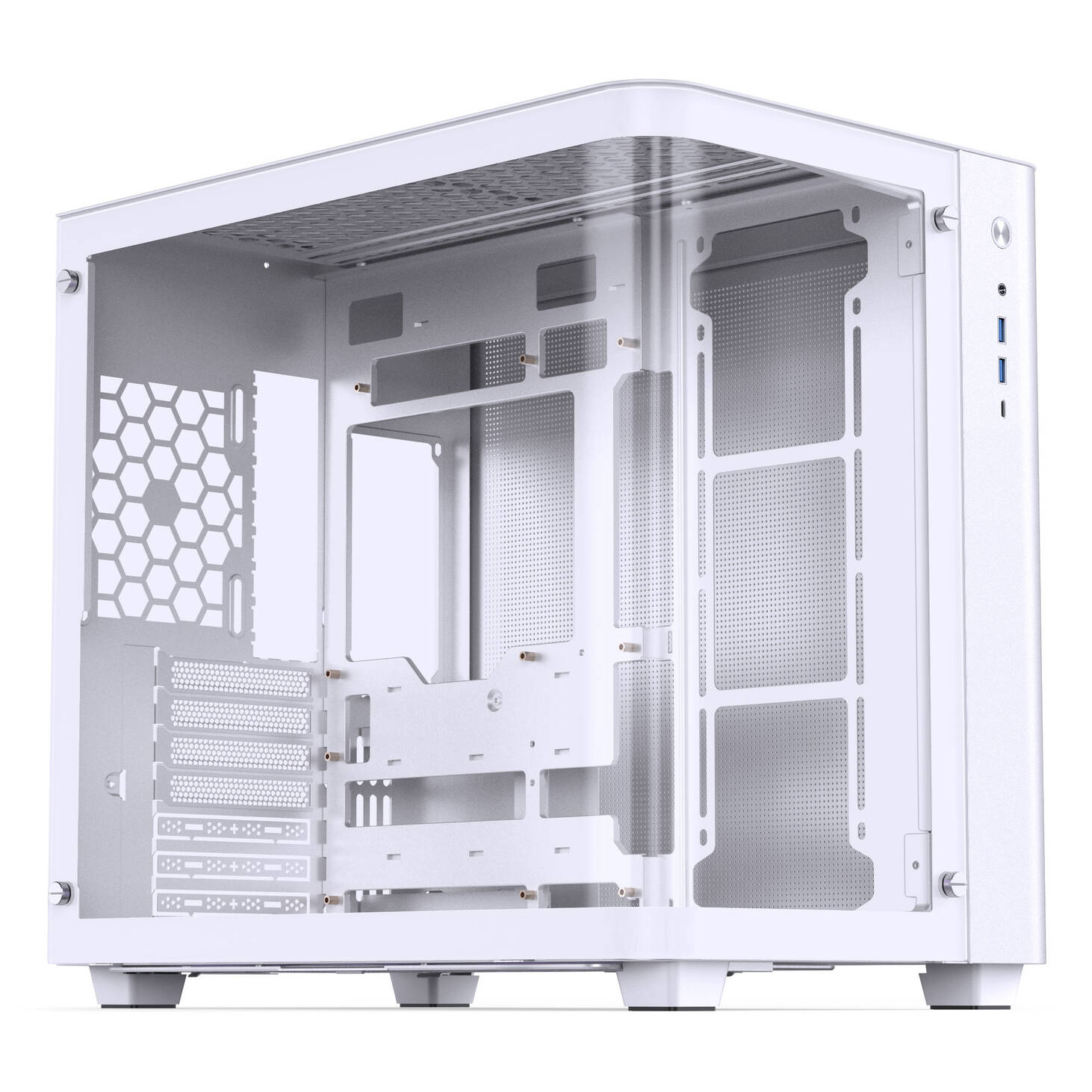

Jonsbo TK-3 – ATX-kompiuterio korpusas, baltos spalvos

Aprašymas

• • Sleek mid-tower with dual-chamber design
  • 270° panoramic view with curved tempered glass
  • Compatible with ASUS BTF and MSI Project Zero back-connect motherboards
  • Space for up to 10 case fans
  • Supports GPUs up to 420 mm in length
  • Supports CPU coolers up to 165 mm in height
  • Up to two 360 mm radiators possible
  • 1x USB-C and 2x USB-A on the front panel

  Jonsbo TK-3: White Mid Tower with Panoramic View

  The Jonsbo TK-3 showcases your gaming hardware beautifully. At first glance, it’s evident that not only the side but also a large part of the front is made of glass. The curved tempered glass offers a 270° panoramic view into your PC, allowing you to display your hardware excellently.

  Ample Space for PC Components

  This PC case supports the installation of graphics cards up to 420 mm in length, giving you the freedom to choose any model. It also accommodates ATX power supplies up to 220 mm in length, offering the necessary space for extremely powerful PSUs. The motherboard tray supports motherboards from Mini-ITX to ATX sizes and includes seven PCI slots for expansion cards.

  This case supports back-connect in the ASUS BTF and MSI Project Zero variants.

  PC Cooling: Space for Fans, CPU Coolers, and Radiators

  High-performance PC parts require excellent cooling, and the Jonsbo TK-3 offers the necessary options for installation. Up to ten 120 mm fans can be accommodated in this mid tower, providing excellent airflow. There’s also space for large CPU coolers up to 165 mm in height. Radiators up to 360 mm can be installed on the top and bottom of the case.

  Drive Options: HDDs and SSDs

  The second chamber can house a total of three SATA hard drives and SSDs. One 3.5-inch HDD and one 3.5-inch or 2.5-inch drive can be installed in the hard drive cage, and one 2.5-inch SSD can be mounted at the bottom of the case.

  The front panel features a fast USB-C port, two USB-A ports, and a combined 3.5 mm jack for your headset.

  Specification

  • Colour: White
  • Materials: Steel, plastic, tempered glass
  • Dimensions: 288 x 415 x 438 mm (W x H x D)
  • Weight: 7.3 kg
  • Form factor: ATX, Micro-ATX, ITX
  • Back connect: Yes (ASUS BTF, MSI Project Zero)
  • Possible fans:
    Top: 3x 120 / 2x 140 mm
    Bottom: 3x 120 mm
    Side: 3x 120 mm
    Rear: 1x 120 mm
  • Possible radiators:
    Top: 1x 360 / 280 mm
    Bottom: 1x 360 mm
  • Drive bays:
    1x 3.5 inch
    1x 3.5 inch / 2.5 inch
    1x 2.5 inch
  • Power supply: 1x ATX (optional)
  • Expansion slots: 7
  • I/O panel:
    1x USB-C 3.1 (3.2 Gen 2, 10 Gbit/s)
    2x USB-A 3.0 (3.2 Gen 1, 5 Gbit/s)
    1x 3.5 mm jack (4-pole, TRRS, audio in/out)
  • Maximum GPU length: 420 mm
  • Maximum CPU cooler height: 165 mm
  • Maximum PSU length: 220 mm

  Colour
  Primary Colour	White
  Dimensions
  Length / Depth	438 mm
  Width	288 mm
  Height	415 mm
  Weight	7.3 kg
  Case
  Case Type	Mid Tower
  Motherboard Support
  Compatible Motherboard Formats	ATX, ITX, Micro-ATX
  Max. Motherboard Format	ATX
  Internal Dimensions
  Max. CPU Cooler Height	165 mm
  Max. GPU Length	420 mm
  Max. PSU Length / Depth	220 mm
  Display
  Display Included	No
  Power Supply
  PSU included	No
  PSU Format	ATX
  Fan Support
  120 mm fans	10
  140 mm fans	2
  Radiator Support
  Max. Radiator Compatibility	360
  Drive Bays
  2.5 inch internal drive bay	1
  3.5 inch internal drive bay	1
  1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)	1
  Hot swap drive bays	No
  External Ports
  USB 3.1 (external) Type C	1
  USB 3.0 (external) Type A	2
  Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
  Card reader	No
  Case Features
  I/O position	Front
  Side panel	with window
  Front door	No
  Cable Management	Yes
  Filters Included	Yes
  Noise dampening	No
  Mainboard slide / tray	No
  Remote included	No
  Transport System	No
  Back Connect
  Back Connect	Yes
  Back-Connect Compatibility	ASUS BTF, MSI Project Zero
  Expansion Slots
  Expansion slots / PCI slots	7
  Materials
  Materials	Steel
  Lighting
  Lighting / RGB	No
  Fan / RGB control	No
  Additional Contents
  Included fans	None
