Jonsbo TK-2 2.0 Midi-Tower, Tempered Glass – juodos spalvos

Aprašymas

• • Modern midi tower in white from Jonsbo
  • U-shaped tempered glass on the side and front
  • Space for Mini-ITX, Micro-ATX, and ATX motherboards
  • Cooling via chimney effect, up to 9x 120 mm fans possible
  • Two 360 mm radiators possible on the top and bottom
  • Room for graphics cards up to 405 mm
  • For two 3.5-inch or 1x 2.5-inch and 1x 3.5-inch storage devices

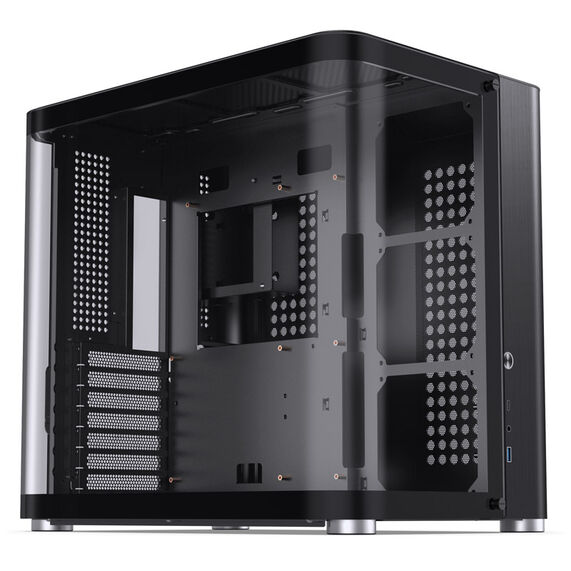

  The Jonsbo TK-2 2.0 Midi Tower: Elegant and Modern

  Externally, the TK-2 2.0 ATX case from Jonsbo impresses with its elegant and modern cube design with rounded edges and flawless workmanship. The U-shaped tempered glass extends from the front over the left side and even covers a small part of the back. The rounded shape gives the TK-2 2.0 Micro-ATX case its unique design and showcases your powerful hardware beautifully.

  Plenty of Space for Hardware

  The TK-2 2.0 Micro-ATX case features a dual-chamber design. In the main chamber, you can showcase your motherboard along with a GPU up to 405 mm in length. The right chamber houses the power supply and either two 3.5-inch drives or one 2.5-inch and one 3.5-inch drive. There is also ample space for cable management.

  With dimensions of 300 by 435 by 408 millimetres, the TK-2 2.0 Micro-ATX case from Jonsbo is still quite compact, but it can accommodate full-sized gaming hardware inside. In addition to a Mini-ITX, Micro-ATX, or ATX motherboard, there is also space for graphics cards up to 405 millimetres long.

  Motherboard Tray for Motherboards with Rear Connections

  The motherboard tray is a special feature of this case. It has cutouts for motherboards with rear connections, such as those from ASUS’s BTF series, GIGABYTE’s Stealth project, or MSI’s Project Zero. The cable routing from the motherboard is therefore direct and invisible into the second chamber for the power supply and drives.

  Chimney Effect for Optimal Cooling

  For cooling, three 120 mm fans can be mounted at the bottom. Three additional 120 mm fans can fit in the top of the elegant case and enhance the natural chimney effect, benefiting the cooling of all components. Alternatively, a 360 mm or 280 mm radiator can be attached to the top, and a 360 mm radiator can be mounted at the bottom. There is also room for three more 120 mm fans on the side. Air intake is provided by holes at the top, right side panel, and back. A dust filter is installed at the bottom, which can be removed and attached as needed. Ventilation holes also ensure cooling for the second chamber.

  Discreet I/O Panel

  The right chamber is finished at the front with an aluminium panel, discreetly housing the power switch, 3.5 mm audio jack, USB-C 3.1, and USB-A 3.0 ports.

  Specification

  • Dimensions: 300 x 435 x 408 mm (W x H x D)
  • Material: Aluminium, steel, tempered glass
  • Weight: approx. 8.5 kg
  • Colour: Black
  • Motherboard form factor: Mini-ITX, Micro-ATX, ATX
  • Fans (possible):
    3x 120 mm (top)
    3x 120 mm (side)
    3x 120 mm (bottom)
  • Fans (pre-installed): none
  • Radiator mountings:
    1x 360 / 280 mm (top)
    1x 360 mm (bottom)
  • Drive bays:
    2x 3.5 inches or 1x 3.5 inches and 1x 2.5 inches
  • Power supply: ATX (optional)
  • Expansion slots: 7
  • I/O panel:
    1x USB-C 3.1
    1x USB-A 3.0
    1x HD audio
    1x power switch
  • Maximum CPU cooler height: 165 mm
  • Maximum graphics card length: 405 mm
  • Maximum power supply length: 200 mm
  • Radiator compatibility bottom: max length 398 mm, sacrificing 2 PCIe slots

  Colour
  Primary Colour	Black
  Secondary Colour	Transparent
  Dimensions
  Length / Depth	408 mm
  Width	300 mm
  Height	435 mm
  Weight	8.5 kg
  Case
  Case Type	Mid Tower
  Motherboard Support
  Compatible Motherboard Formats	ATX, Micro-ATX, Mini-ITX
  Max. Motherboard Format	ATX
  Internal Dimensions
  Max. CPU Cooler Height	165 mm
  Max. GPU Length	280 mm
  Max. PSU Length / Depth	200 mm
  Display
  Display Included	No
  Power Supply
  PSU included	No
  PSU Format	ATX
  Power Supply Position	Internal
  Fan Support
  120 mm fans	9
  Radiator Support
  Max. Radiator Compatibility	1x Dual (280 mm), 2x Triple (360 mm)
  Drive Bays
  3.5 inch internal drive bay	2
  1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)	1
  Hot swap drive bays	No
  External Ports
  USB 3.1 (external) Type C	1
  USB 3.0 (external) Type A	1
  Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
  Card reader	No
  Case Features
  I/O position	Front
  Side panel	closed
  Front door	No
  Cable Management	Yes
  Filters Included	Yes
  Noise dampening	No
  Mainboard slide / tray	No
  Remote included	No
  Transport System	No
  Features
  Housing Feedthrough	No
  Materials
  Materials	Aluminium, Steel, Tempered Glass
  Lighting
  Lighting / RGB	No
  Product Series
  Product Series/Family	TK-2 2.0
  Additional Contents
  Included fans	None
