Jonsbo TB01 Benchtable – black
Prekės kodas: @1745085
TB01 BLACK
129,35 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-03*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
- Atsiliepimai (0)
Aprašymas

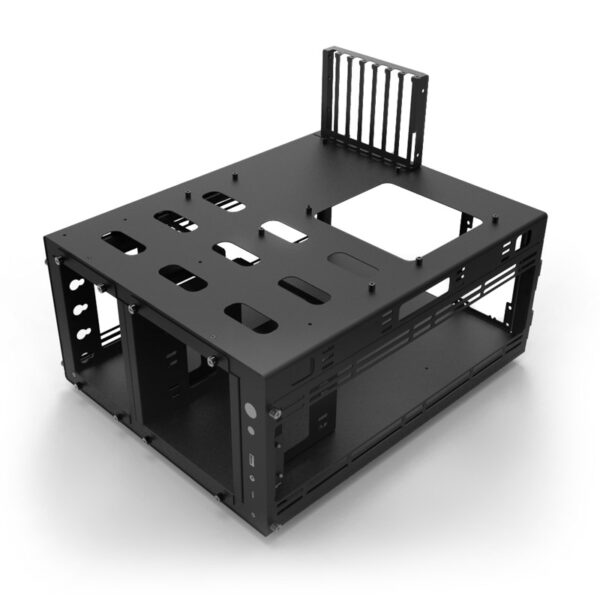

Compact benchtable in black, for motherboards up to E-ATX, 7 PCIe slots for graphics cards, 4x 3.5-inch / 3x 5.25-inch / 2x 2.5-inch slots
- High-quality benchtable from Jonsbo in black
- Compatible with almost all motherboards up to E-ATX
- Seven PCIe slots for graphics cards
- 4x 3.5-inch / 3x 5.25-inch / 2x 2.5-inch slots
- Mostly tool-free installation
- Space for 6x 120 or 140 mm fans
- Water cooling ready with space for radiators up to 420 mm
High-quality benchtable for overclockers and modders
The TB01 from Jonsbo can be used both as a classic benchtable and as a test bench for regular hardware changes. However, the Jonsbo TB01 also performs well as a conventional PC case, as it can accommodate unusual configurations more easily and allows for quicker assembly and a distinctive appearance compared to other cases.
Fast and flexible installation
The TB01 benchtable has a large chassis that can house drives and power supply inside. Thanks to the large mounts on each side, up to six 120 mm or 140 mm fans can be installed.
The Easy also provides optimal conditions for water cooling, as a radiator up to 360/420 mm format can be mounted on the side. The holes are designed as elongated slots, supporting various manufacturers. The motherboard is mounted on the case, which also supports various formats.
- Dimensions: 350 x 323 x 447 mm (W x H x D)
- Material: Steel
- Colour: Black
- Form factor: E-ATX, CEB, ATX, Micro-ATX, Mini-ITX
- Total fans possible:
3x 120/140 mm (left side)
3x 120/140 mm (right side) - Pre-installed: none
- Radiator mountings:
2x 420 / 360 / 280 / 240 / 140 / 120 mm - Drive bays:
3x 5.25 inch
4x 3.5 inch
2x 2.5 inch - Expansion slots: 7
- I/O panel:
1x USB 3.0 + Type C (20-pin combined)
1x Audio (In/Out) - Power supply (optional): ATX, SFX, SFX-L
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
447 mm
|
|
Width
|
350 mm
|
|
Height
|
323 mm
|
|
Case
|
|
|
Case Type
|
Benchtable
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX, SSI-CEB
|
|
Max. Motherboard Format
|
E-ATX
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU Format
|
ATX, SFX, SFX-L
|
|
Fan Support
|
|
|
120 mm fans
|
6
|
|
140 mm fans
|
6
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
2x Dual (240 mm), 2x Dual (280 mm), 2x Single (120 mm), 2x Single (140 mm), 2x Triple (360 mm), 2x Triple (420 mm)
|
|
Drive Bays
|
|
|
2.5 inch internal drive bay
|
2
|
|
3.5 inch internal drive bay
|
4
|
|
5.25 inch external drive bay
|
3
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Front door
|
No
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Materials
|
|
|
Materials
|
Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Fan / RGB control
|
No
|
|
Additional Contents
|
|
|
Included fans
|
None
|
