Jonsbo NV10 PC case, mini case, ITX – black
Prekės kodas: @1280756
NV10 BLACK
96,07 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-04*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Compact mini tower, motherboard up to ITX, 2x low-profile expansion slots / GPU up to 190mm, CPU cooler up to 38mm height, 1U flex power supply up to 150mm
-
- Compact case for simple mini PCs
- Two low-profile expansion slots for graphics cards
- Support for ITX-sized motherboards
- Space for CPU coolers with a height of up to 38 mm
- Minimal I/O panel with one USB-C port
The Jonsbo NV10 PC case in detail

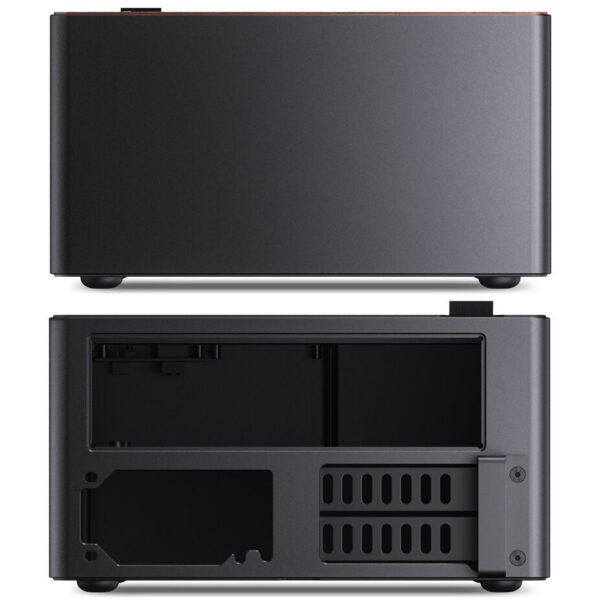

The Jonsbo NV10 is a small case that can be placed on the table due to its lightweight design and fits into any setup with its black, simple design. The practical USB-C port allows for the connection of various external devices.
Hardware options
The mini case supports the installation of motherboards with the ITX form factor. The CPU cooler must not exceed a height of 38 mm. Power is provided by a 1U flex power supply that must not be longer than 150 mm.

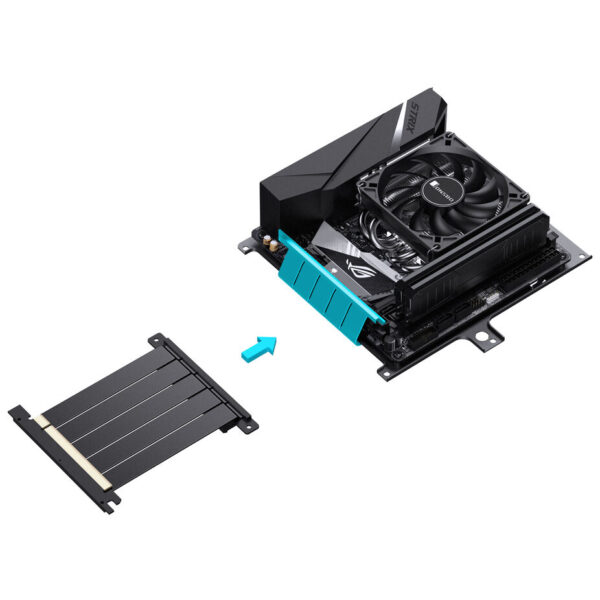

Thanks to the two low-profile expansion slots, the installation of a GPU up to 190 mm long in a low-profile design is possible. With the included PCIe 4.0 x16 riser cable, the graphics card is mounted at the back of the motherboard, next to the power supply. This saves as much space as possible and fully utilises the volume of the case.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
108 mm
|
|
Width
|
205 mm
|
|
Height
|
205 mm
|
|
Weight
|
1.5 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ITX
|
|
Max. Motherboard Format
|
ITX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
38 mm
|
|
Max. GPU Length
|
190 mm
|
|
Max. PSU Length / Depth
|
150 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
other
|
|
Power Supply Position
|
Internal
|
|
Fan Support
|
|
|
Max. Number of Fans
|
0
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
0
|
|
Max. 3.5 Inch Drives
|
0
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
Card reader
|
No
|
|
Case Features
|
|
|
I/O position
|
Cover
|
|
Side panel
|
closed
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Riser Cable Included
|
Yes
|
|
Riser Cable Generation
|
PCIe 4.0
|
|
Front door
|
No
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
2
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium, Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Included fans
|
None
|
