Jonsbo N4 NAS-kompiuterio korpusas – juodos spalvos

Aprašymas

• • Compact case for NAS systems
  • Space for 2x 2.5 inch and 6x 3.5 inch drives
  • Four low-profile slots for expansion cards up to 230 mm
  • Supports CPU coolers up to 70 mm height
  • 1x USB-C and 1x USB-A on the front panel

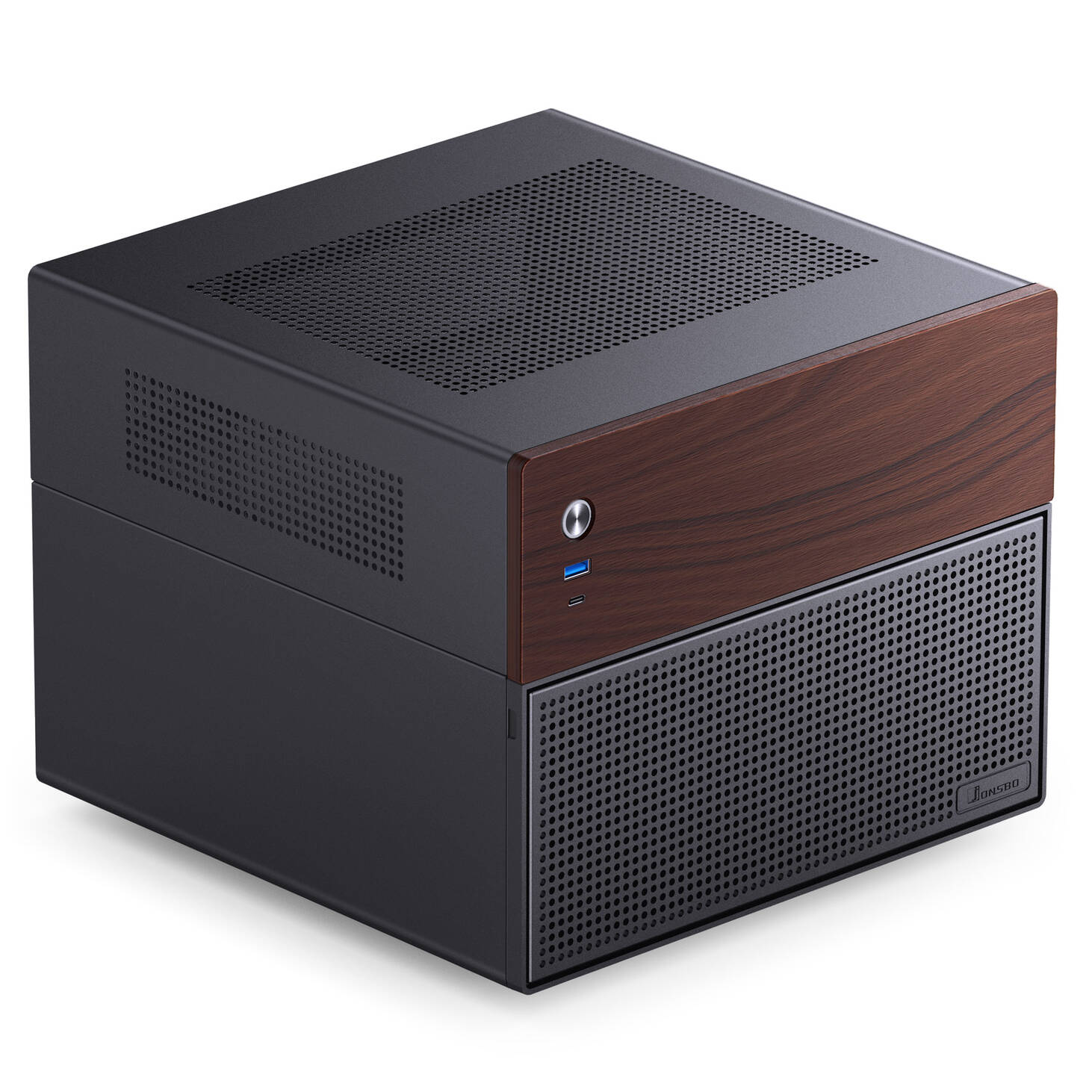

  Jonsbo N4: Black NAS Case with Wood Decoration

  The Jonsbo N4 is a cube-shaped Micro-ATX case for DIY NAS servers. The NAS case features a stylish design with an elegant dark walnut wood trim, enhancing its appeal.

  Hardware Capabilities

  The Jonsbo N4 offers four half-height expansion slots and supports the installation of expansion cards such as RAID controllers, Host Bus Adapters (HBA), and Network Interface Cards (NIC) up to 230 mm in length.

  The key factor is the storage capacity, allowing you to install up to six 3.5-inch hard drives and two 2.5-inch drives simultaneously. Thanks to the pre-installed backplanes, these can be easily slotted in.

  Effective Cooling for Continuous Operation

  The CPU cooler can be up to 70 mm high. An integrated 120 mm fan at the rear ensures optimal cooling for your NAS hardware. The perforated front panel in front of the drive bay and additional perforations on the sides and top also contribute to sufficient cooling of your NAS system, ensuring longevity.

  The wood panel features a USB-C port with 10 Gbit/s and a USB-A port with 5 Gbit/s.

  Specification

  • Dimensions: 286 x 228 x 300 mm (W x H x D)
  • Material: Steel, Wood
  • Weight: 3.75 kg
  • Colour: Black, Brown
  • Form Factor: ITX / Micro-ATX
  • Total possible fans: 1x 120 mm (pre-installed)
  • Drive bays:
    6x 3.5 inch
    2x 2.5 inch
  • Power Supply: 1x SFX (optional)
  • Expansion slots: 4 (Low Profile)
  • I/O Panel:
    1x USB-C 3.1 (USB 3.2, Gen 2, 10 Gbit/s)
    1x USB-A 3.0 (USB 3.2 Gen 1, 5 Gbit/s)
  • Maximum Graphics Card Length: 230 mm
  • Maximum CPU Cooler Height: 70 mm
  • Maximum Power Supply Length: 125 mm

  Colour
  Primary Colour	Black
  Secondary Colour	Dark brown
  Dimensions
  Length / Depth	300 mm
  Width	286 mm
  Height	228 mm
  Weight	3.75 kg
  Case
  Case Type	Server Case
  Motherboard Support
  Compatible Motherboard Formats	ITX, Micro-ATX
  Max. Motherboard Format	Micro-ATX
  Internal Dimensions
  Max. CPU Cooler Height	70 mm
  Max. GPU Length	230 mm
  Max. PSU Length / Depth	125 mm
  Display
  Display Included	No
  Power Supply
  PSU included	No
  PSU Format	SFX
  Fan Support
  Max. Number of Fans	1
  120 mm fans	1
  Radiator Support
  Max. Radiator Compatibility	no
  Drive Bays
  Max. 2.5 Inch Drives	2
  Max. 3.5 Inch Drives	6
  2.5 inch internal drive bay	2
  3.5 inch external drive bay	6
  Hot swap drive bays	Yes
  External Ports
  USB 3.1 (external) Type C	1
  USB 3.0 (external) Type A	1
  Card reader	No
  Case Features
  I/O position	Front
  Side panel	closed
  Vertical GPU Mount	No
  Adjustable Vertical GPU Bracket	No
  Riser Cable Included	No
  Front door	Yes
  Noise dampening	No
  Mainboard slide / tray	No
  Remote included	No
  Transport System	No
  Back Connect
  Back Connect	No
  Expansion Slots
  Expansion slots / PCI slots	4
  Fan Header
  Fan Controller / Fan Hub	No
  Mounting
  Case VESA Mountable	No
  Internal Monitor Mount	No
  Materials
  Materials	Steel, Wood
  Lighting
  Lighting / RGB	No
  Fan / RGB control	No
  Additional Contents
  Included fans	1x 120 mm
