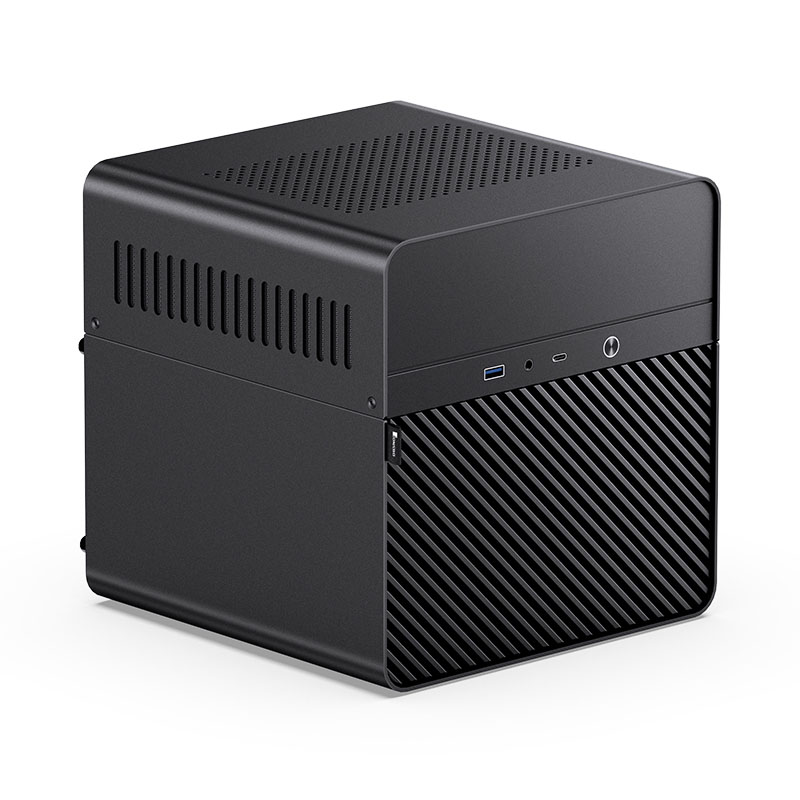

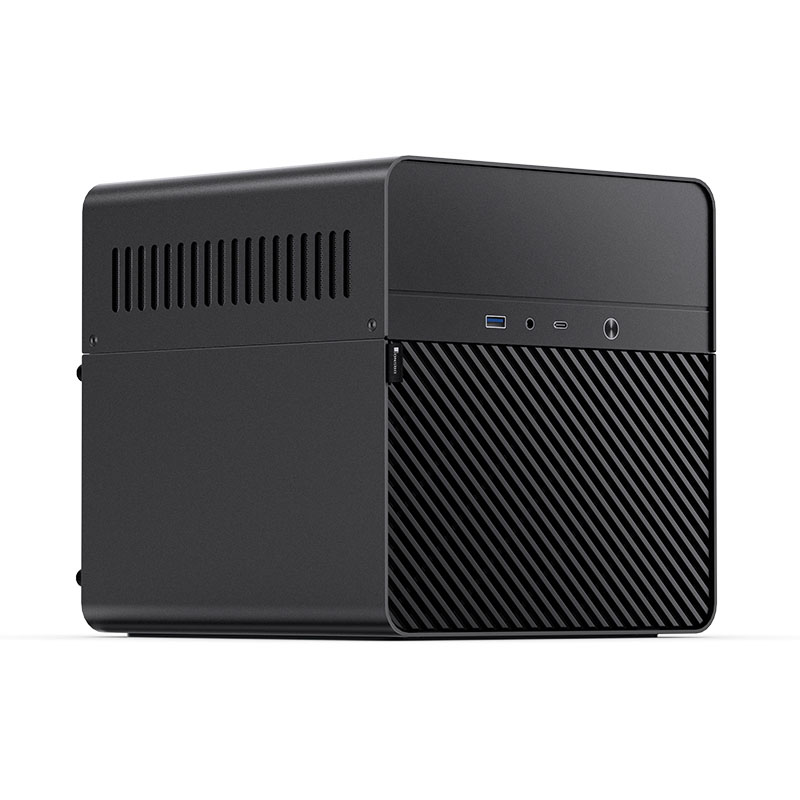

Jonsbo N2 Mini-ITX NAS kompiuterio korpusas – juodos spalvos

Aprašymas

• • Elegant and compact Mini-ITX aluminium case from Jonsbo
  • Graphics cards up to a maximum length of 197 mm
  • Power supply via SFX power supply unit
  • CPU cooler up to 65 mm height
  • One 120 mm fan pre-installed at the front
  • Hard drive cage for 5x 3.5 HDDs
  • With a board for 5x SATA slots, hot-swap capable
  • I/O panel: 1x USB-C 3.1, 1x USB 3.0 Type A, 1x 3.5 mm jack (Audio + Mic)

  The Jonsbo N2 Mini-ITX Case in Detail

  A compact computer for cloud storage or home office systems. The Jonsbo N2 is the small but fine solution for purpose-built systems. It accommodates a 2.5-inch SSD and five 3.5-inch HDDs. A hot-swap capable SATA/SAS board is already installed for the five HDD drives. It is versatile and space-saving, as it can be laid flat or stood upright.

  Organisation and Hardware

  The Jonsbo N2 is a Mini-ITX case and is only compatible with this form factor motherboard size. Only small 1-slot graphics cards with a length of 197 mm will fit inside. The case can be completely removed to facilitate installation. For quick access to optional hot-swap HDDs, the left side panel can be quickly removed.

  Important! There is not much space inside. Graphics cards will only fit with a low-profile bracket. It is advisable to purchase a CPU chipset with an integrated graphics unit instead.

  The power supply of the mini system is ensured by a compact SFX standard power supply unit. The CPU cooler, on the other hand, must not exceed 65 mm in height. For air circulation, a 120 mm fan is installed at the front and is of course included in the delivery.

  Compact Design for Home Use

  For those looking for a small computer for basic tasks such as office programmes or to back up their own local cloud storage, the Jonsbo N2 offers a practical solution. The design is space-saving, clever, and provides capacity for five 3.5-inch HDDs in a hard drive cage. A 2.5-inch drive can be mounted above the power supply unit.

  Functionality is a priority with the Jonsbo N2. Its petite dimensions of 222.5 mm x 222.5 mm x 224 mm (W x H x D) fit into any home and blend seamlessly into any setup or aesthetic with its high-quality aluminium case. If you still can’t find a good spot to place it, you can stand it up. No matter how you position it, the I/O panel with USB-C 3.1, USB 3.0 Type A and 3.5 mm audio jack remains easily accessible from any position.

  Specification

  • Dimensions: 222.5 mm x 222.5 mm x 224 mm (W x H x D)
  • Material: Aluminium, Steel
  • Weight: 3.8 kg
  • Colour: Black
  • Motherboard form factor: Mini-ITX
  • Fan support:
    Front: 120 mm (pre-installed)
  • Drive bays:
    1x 2.5 inch
    5x 3.5 inch
  • Power supply: SFX, max. 150 mm
  • Graphics card: max. 197 mm length (Low Profile)
  • Expansion slots: 1 (Single-Slot, Low Profile)
  • I/O panel:
    1x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
    1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 5 Gbit/s)
    1x 3.5 mm jack (Mic and Headphones)
    1x Power switch

  Colour
  Primary Colour	Black
  Fan Main Colour (Frame)	Black
  Fan Main Colour (Rotor)	Black
  Dimensions
  Length / Depth	224 mm
  Width	222.5 mm
  Height	222.5 mm
  Weight	3.8 kg
  Case
  Case Type	Aluminium Case, Mini Case
  Motherboard Support
  Compatible Motherboard Formats	Mini-ITX
  Max. Motherboard Format	Mini-ITX
  Internal Dimensions
  Max. CPU Cooler Height	65 mm
  Max. GPU Length	197 mm
  Max. PSU Length / Depth	150 mm
  Inner Volume	11 l
  Display
  Display Included	No
  Power Supply
  PSU included	No
  PSU Format	SFX
  Power Supply Position	Internal
  Fan Support
  120 mm fans	1
  Radiator Support
  Max. Radiator Compatibility	no
  Drive Bays
  2.5 inch internal drive bay	1
  3.5 inch internal drive bay	5
  Hot swap drive bays	Yes
  External Ports
  USB 3.2 (external) Type C	1
  USB 3.1 (external) Type C	1
  USB 3.0 (external) Type A	1
  Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
  Card reader	No
  Case Features
  I/O position	Front
  Side panel	closed
  Front door	Yes
  Cable Management	No
  Filters Included	No
  Noise dampening	No
  Mainboard slide / tray	No
  Remote included	No
  Transport System	No
  Features
  Housing Feedthrough	No
  Materials
  Materials	Aluminium
  Lighting
  Lighting / RGB	No
  Fan / RGB control	No
  Additional Contents
  Included fans	1x 120 mm
