Jonsbo FR-505 ARGB Reverse Blade PWM korpuso ventiliatorius, 120mm – baltos spalvos
Prekės kodas: @1248093
FR-505WR
14,40 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-05*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Digitally addressable RGB lighting with infinity effect
- PWM-controlled speed range from 800 to 1,800 RPM
- Including rubber vibration dampers
- High flow rate of 80.19 m³/h
- Inverted fan blade

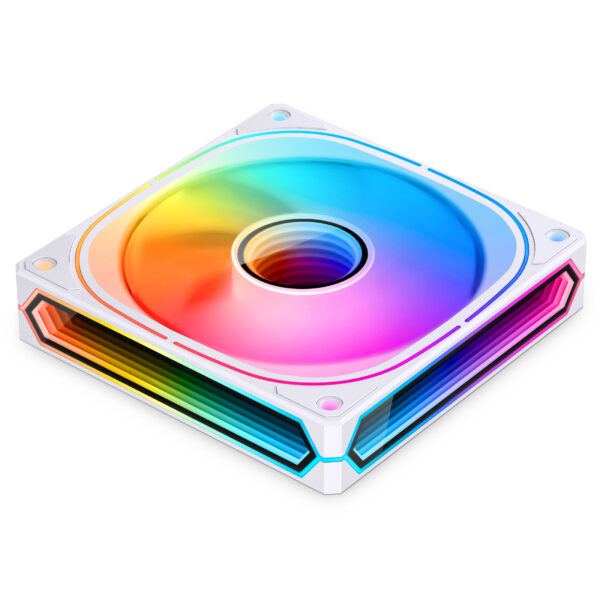

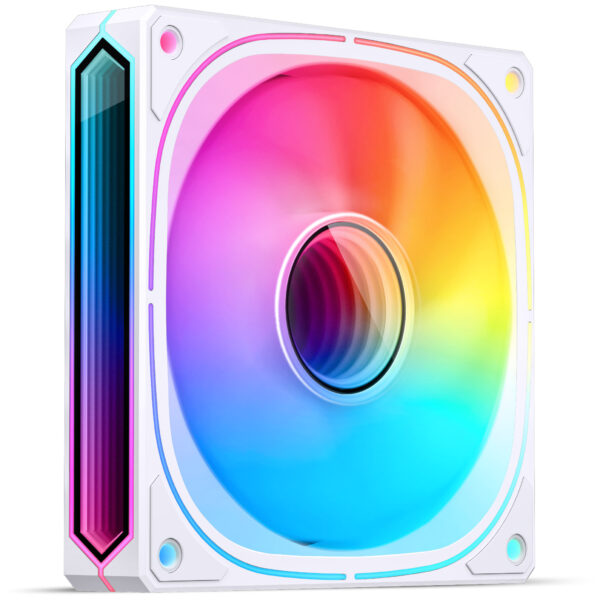

Jonsbo FR-505: High-performance and quiet case fan with RGB
The Jonsbo FR-505 is a high-performance 120 mm fan designed for use as a case fan. Inverted rotor blades provide a flow rate of 80.19 m³/h. The fan is controlled via a PWM signal in a speed range of 800 to 1,800 revolutions per minute.
At maximum speed, the Jonsbo FR-505 produces a low noise level of 30 dB(A). The quiet hydraulic bearing and rubber vibration dampers ensure that no vibrations are transmitted to the case.
Colour wonder with RGB lighting
The Jonsbo FR-505 features a lit frame with an infinity effect and transparent fan blades. The dynamically addressable RGB lighting consists of RGB LEDs located in the rim of the fan.
Technical Details:
- Dimensions: 120 x 120 x 25 mm (W x H x D)
- Material: Plastic, Rubber
- Colour: White
- Noise level: 30 dB(A)
- Speed: 800 – 1,800 RPM (-10 /+5 %)
- Flow rate: 80.19 m³/h
- Lighting: RGB
- Operating voltage: 12 V
- Connections:
4-pin PWM
RGB (3-pin)
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
White
|
|
Fan Main Colour (Rotor)
|
Transparent
|
|
Dimensions
|
|
|
Length / Depth
|
120 mm
|
|
Width
|
120 mm
|
|
Fan height
|
25 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Fan Blade Direction
|
Reverse
|
|
Min. Fan RPM
|
800 rpm
|
|
Max. Fan RPM
|
1800 rpm
|
|
Min. Single Fan Airflow
|
35 m³/h
|
|
Max. Single Fan Airflow
|
80 m³/h
|
|
Min. Static Pressure
|
0.32 mmH2O
|
|
Max. Static Pressure
|
1.6 mmH2O
|
|
Noise
|
|
|
Min. Single Fan Noise dB(A)
|
13.3 dB(A)
|
|
Max. Single Fan Noise dB(A)
|
30 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
