Jonsbo FR-505 ARGB PWM korpuso ventiliatorius, 120mm – juodos spalvos
Prekės kodas: 1245562
FR-505B
14,40 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Digitally addressable RGB lighting with infinity effect
- PWM-controlled speed range from 800 to 1,800 RPM
- Includes rubber vibration dampers
- High airflow volume of 80.19 m³/h

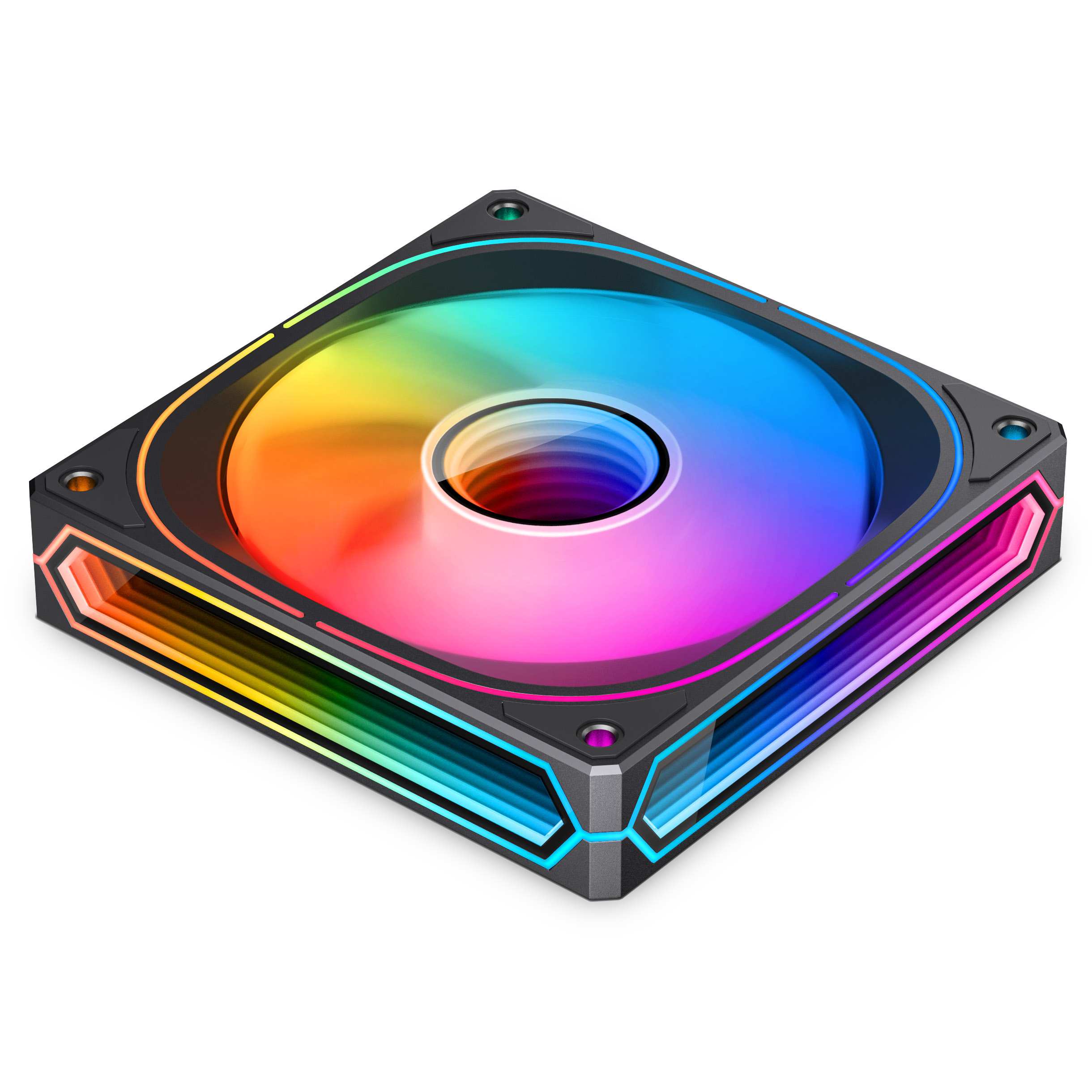

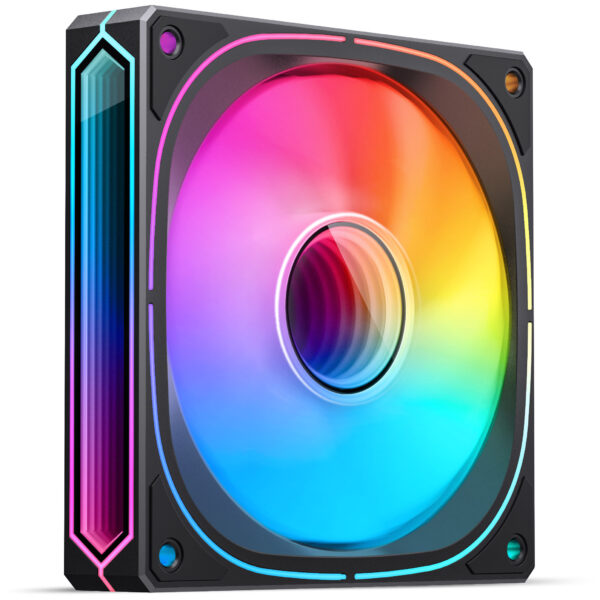

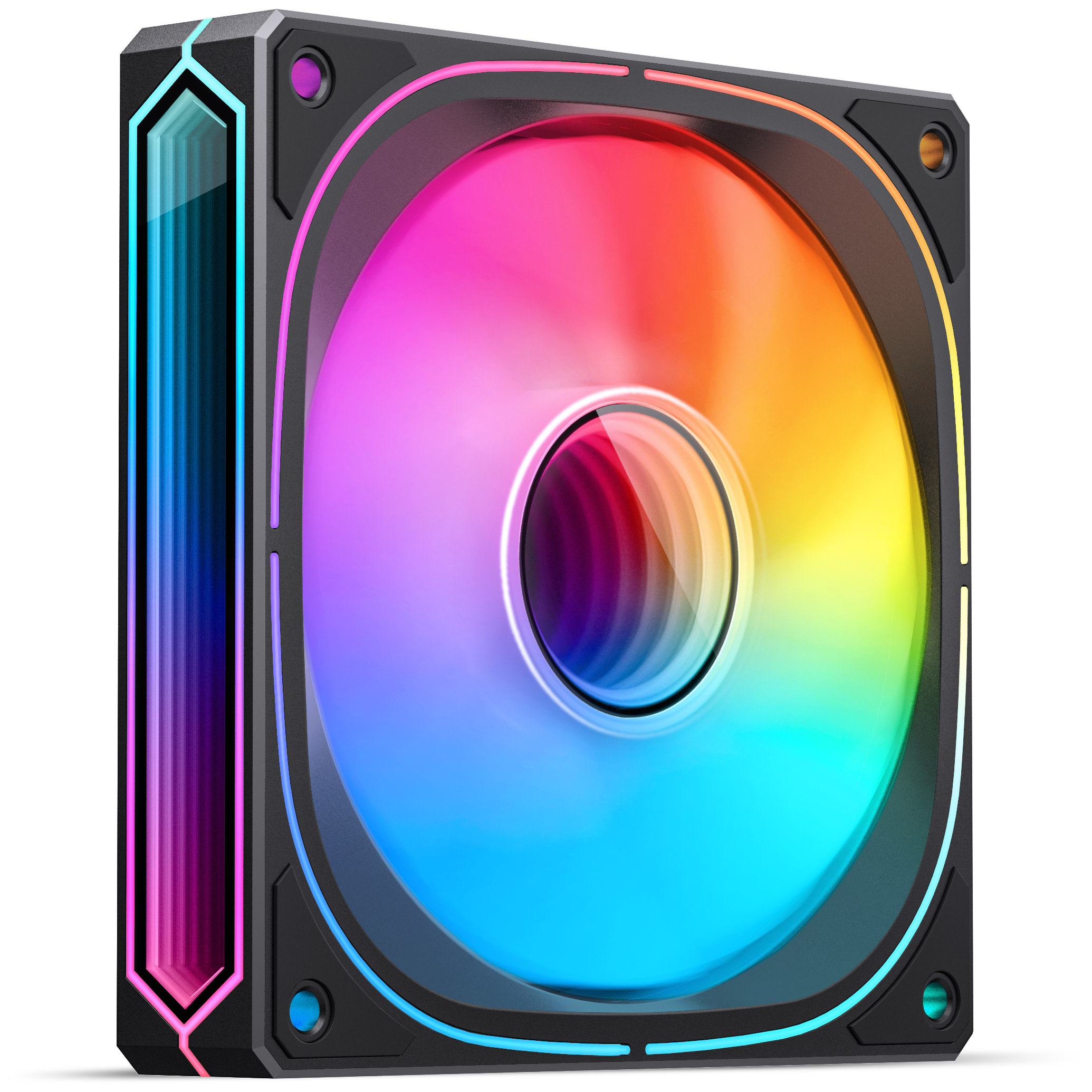

Jonsbo FR-505: High-performance and quiet case fan with RGB
The Jonsbo FR-505 is a high-performance 120 mm fan designed for use as a case fan. The rotor blades provide an airflow volume of 80.19 m³/h. The fan is controlled via PWM signal in a speed range of 800 to 1,800 revolutions per minute.
At maximum speed, the Jonsbo FR-505 generates a low noise level of 30 dB(A). The quiet hydraulic bearing and rubber vibration dampers ensure that no vibrations are transmitted to the case.
Colour wonder with RGB lighting
The Jonsbo FR-505 features a lit frame with an infinity effect and transparent fan blades. The d digitally addressable RGB lighting consists of RGB LEDs located in the rim of the fan.
Technical details:
- Dimensions: 120 x 120 x 25 mm (W x H x D)
- Material: Plastic, rubber
- Colour: Black
- Noise level: 30 dB(A)
- Speed: 800 – 1,800 RPM (-10 /+5 %)
- Airflow volume: 80.19 m³/h
- Lighting: RGB
- Operating voltage: 12 V
- Connections:
4-pin PWM
RGB (3-pin)
Colour | |
Primary Colour | Black |
Fan Main Colour (Frame) | Black |
Fan Main Colour (Rotor) | Transparent |
Dimensions | |
Length / Depth | 120 mm |
Width | 120 mm |
Fan height | 25 mm |
Fan Specifications | |
Fan Size | 120 mm |
Fan Blade Direction | Standard |
Min. Fan RPM | 800 rpm |
Max. Fan RPM | 1800 rpm |
Min. Single Fan Airflow | 35 m³/h |
Max. Single Fan Airflow | 80 m³/h |
Min. Static Pressure | 0.32 mmH2O |
Max. Static Pressure | 1.6 mmH2O |
Noise | |
Min. Single Fan Noise dB(A) | 13.3 dB(A) |
Max. Single Fan Noise dB(A) | 30 dB(A) |
Internal Ports | |
Fan connectors | 4 Pin (PWM) |
RGB / LED connectors | 1x Digital RGB (3-Pin 5VDG) |
Lighting | |
Lighting / RGB | Yes |
Lighting Colour | RGB |
