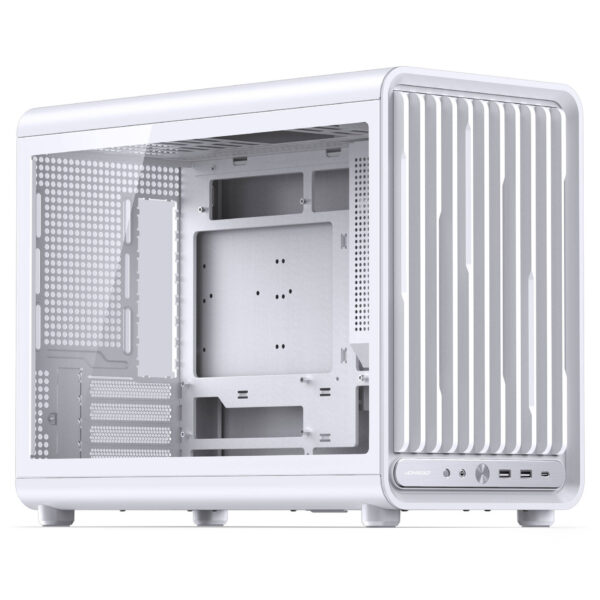

Jonsbo D33 STD PC Case, Mini Case, mATX, Tempered Glass – white
D33 STD WHITE
90,76 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-06-26*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Mini case, up to nine fans, space for radiators up to 360mm, motherboards up to mATX & with back-connect design, GPU up to 435mm and CPU cooler up to 172mm height
With the Jonsbo D33 STD, you get a mini case that can be integrated into any setup.
- White mATX tower
- Numerous fan and radiator slots for effective cooling performance
- Supports motherboards up to mATX with back-connect design
- Space for graphics cards up to 435mm and CPU coolers up to 172mm in height
Jonsbo D33 STD: Space-saving PC case
The Jonsbo D33 STD offers plenty of room for powerful gaming hardware despite its compact size. Ideal for living room setups.
Extensive cooling options with fans and radiators
To keep your hardware cool under any load, the Jonsbo D33 STD can accommodate up to nine fans simultaneously. The case provides space for three 120mm fans at the top and bottom, two 120mm or 140mm fans at the front, and one 120mm fan at the rear. Note that only two 140mm fans are possible at the front if you install an SFX power supply.
An AiO water cooling system can also be easily installed if you prefer to cool your powerful hardware with liquid cooling. There is space for a 360 mm water cooling radiator at the top.
Installing your hardware
The case offers enough space for powerful gaming hardware. It supports the installation of long graphics cards up to 435mm. The CPU cooler should not exceed a height of 172mm.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
455 mm
|
|
Width
|
238.2 mm
|
|
Height
|
368.4 mm
|
|
Weight
|
6.7 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
Micro-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
172 mm
|
|
Max. GPU Length
|
435 mm
|
|
Max. PSU Length / Depth
|
160 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
front
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Front)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x)
|
|
Max. Number of Fans
|
9
|
|
120 mm fans
|
9
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Triple (360 mm)
|
|
Radiator/AIO Support (Top)
|
240mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
2
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
4
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer’s compatibility information. You can find the latest overview on the manufacturer’s website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
