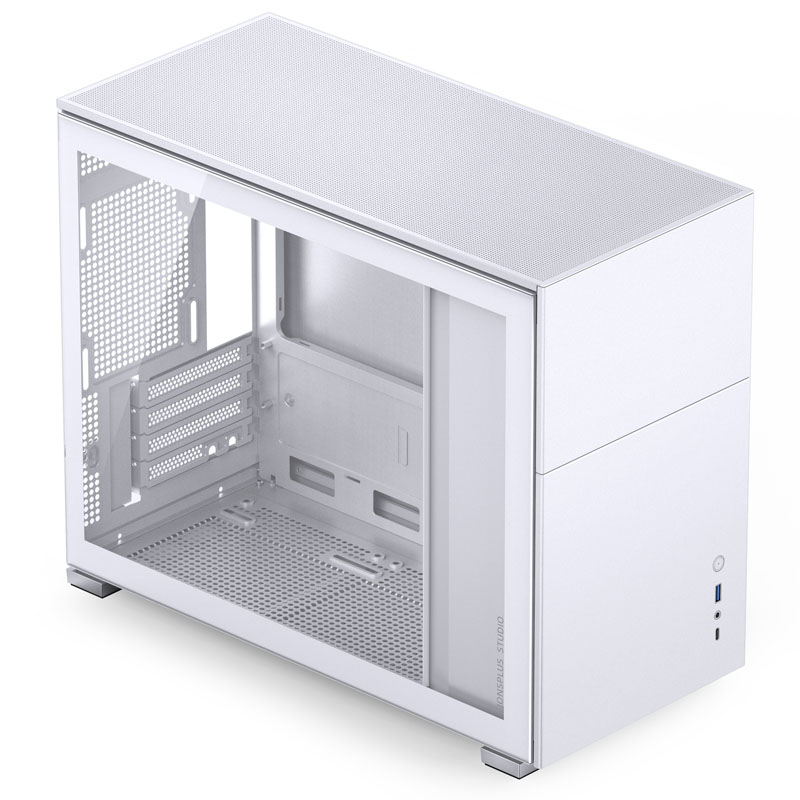

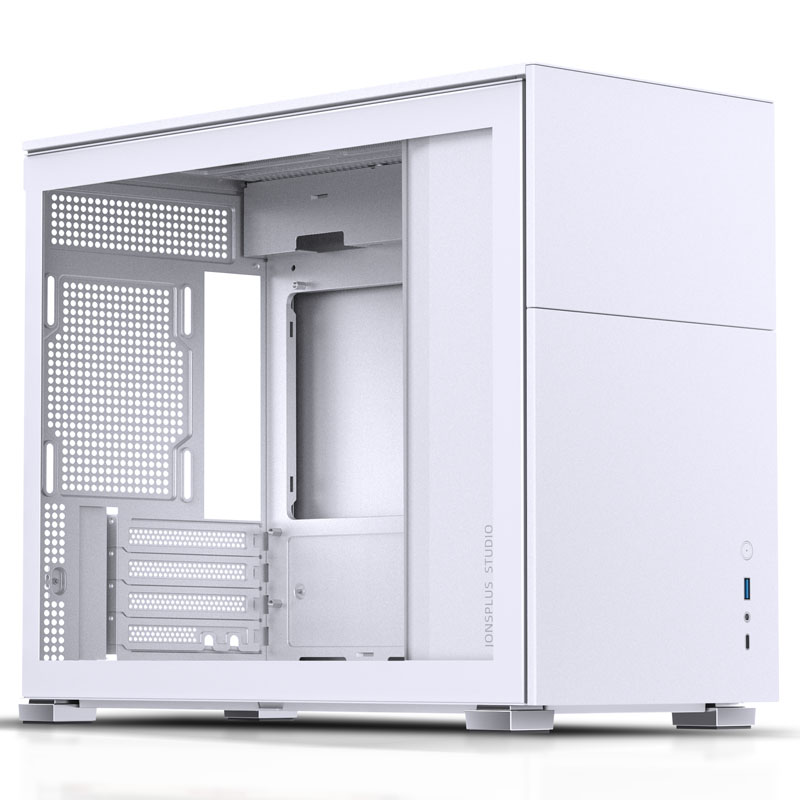

Jonsbo D31 Micro-ATX kompiuterio korpusas, Tempered Glass – baltos spalvos
Prekės kodas: 1235769
D31 STD WHITE
62,04 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Compact and elegant gaming case for Micro-ATX motherboards
- Closed front for silent builds, tempered glass side panel
- Designed for vertical airflow with up to eight possible fans
- Vertically adjustable power supply for longer graphics cards
- GPU’s can be at least 330 mm, and up to 400 mm long
- Room for up to two 360 mm radiators simultaneously
Jonsbo D31: The versatile mATX case
With the D31, Jonsbo presents a micro ATX case from its Pine Cones series that is as compact and elegant as it is versatile. It can easily accommodate the latest gaming hardware. Whether you prefer air or water cooling, the Jonsbo D31 offers plenty of space for both. Depending on the size of your GPU and how many fans you need, you can position the PSU on the front to suit your needs.
Available in different versions, the choice is yours
The Jonsbo is available in several versions, one with and one without mesh and even with a large TFT-LCD at the front, on which you can display system information or animated screensavers. No matter what you prefer, with the Jonsbo D31 you can create your perfect gaming setup. This STD version in white has a closed front panel, perfect for silent builds.
High-end gaming hardware: Well presented
The interior of the Jonsbo D31 is clearly visible through the tempered glass side panel. In addition to the mATX mainboard, a graphics card with a minimum length of 330 mm and a maximum length of 400 mm can be installed inside. The PSU behind a shroud can be moved vertically by 140 mm in four steps. There is space for two SSDs behind the motherboard bracket. There is also plenty of space for cable management. An HDD can be placed on the floor at the front, forfeiting a third fan.
Plenty of room for fans …
The three possible 120 mm fans at the bottom above a dust filter are mounted offset so that the air coming in is directed past the graphics card. Alternatively, you can also install two 140 mm fans here. At the top, another three 120 mm or two 140 mm fans can be installed to convey the heated air to the outside through a fine mesh grille. There is room for one more 120 mm fan at the rear and one at the front.
… and radiators
Alternatively, radiators up to 360 mm in size can be installed at the bottom and at the roof. There is also room for a 280 mm radiator at the top. If you want to use a CPU cooler, it can be up to 168 mm high. The I/O panel at the bottom right on the front panel offers a USB 3.1 port type C, a USB 3.0 port type A as well as a combined 3.5 mm audio jack and the usual power and reset switch.
Technical Details:
- Measurements: 205 x 363 x 452 mm (W x H x D)
- Material: Plastic, tempered glass, steel
- Weight: 5,9 Kg
- Colour: White
- Formfactor: Micro-ATX, DTX, Mini-ITX
- Total fans possible:
Front: 1x 120 mm
Roofl: 3x 120 / 2x 140 mm
Floor: 3x 120 / 2x 140 mm
Rear: 1x 120 mm - Pre-installed fans:
none - Radiator mountings:
Roof: 1x max. 280 / 360 mm
Floor: 1x max. 360 mm
Rear: 1x max. 120 mm - Drives:
2x 2,5 Zoll (motherboard bracket)
1x 3,5 Zoll (floor) - PCI slots: 4
- I/O panel:
1x USB 3.1 (Typ C, USB 3.2 Gen 2, max. 10 Gbit/s)
1x USB 3.0 (Typ A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x 3,5 mm Klinke (4-po, TRRS)
1x Power / Reset - Max. GPU length:
330 to 400 mm (depending on PSU placement) - Max. CPU cooler height: 168 mm
- PSU: ATX, max. 100 – 220 mm length
