Jonsbo D300 Midi-Tower, mATX, 270 Grad, Tempered Glass – juodos spalvos

Aprašymas

• • Spacious Midi Tower for Zero-Cable Builds
  • Up to ten 120mm fans, even mounting spots in the second chamber
  • Space for up to two radiators (up to 360mm on the top, 140mm at the back)
  • For GPUs up to 430mm and CPU coolers up to 180mm
  • Designed for motherboards with connections on the back

  JONSBO D300: Generous Capacity and Perfect Airflow

  The JONSBO D300 supports motherboards up to Micro-ATX and offers you more than enough options to install your hardware. Four built-in fans and the installation of up to six additional fans and up to two radiators ensure optimal cooling.

  The graphics card can be up to 430mm long, and the CPU cooler can have a height of up to 180mm. In addition, there is space for three 2.5-inch and 3.5-inch drives, so you have enough storage for your games and programs.

  Support for Mainboards with Back-Connect Design

  A highlight of the Midi Tower is that you can install motherboards with connections on the back. These include the models of the ASUS BTF and MSI Project Zero series.

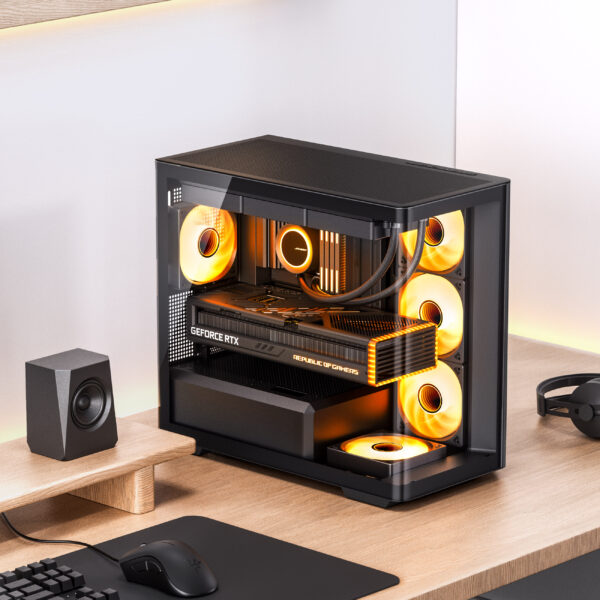

  Good insight into the hardware through 270° glass panel

  The case consists of tempered glass on the side and front. This gives you a perfect view of the interior, and your RGB lighting stands out even more.

  Specification

  • Colour: Black
  • Material: Steel, Tempered Glass
  • Dimensions: 236.4 x 420.9 x 460.2 mm (W x H x D)
  • Weight: approx. 8 kg
  • Form Factor: Micro-ATX / Mini-ITX
  • Total Fan Support:
    3x 120 mm / 2x 140 mm (Top)
    3x 120 mm (Side)
    1x 120 mm / 140 mm (Rear)
    1x 120 mm (Bottom)
    2x 120 / 1x 140 mm (PSU Chamber)
  • Radiator Mountings:
    1x 120 / 140 mm (Rear)
    1x 240 / 360 mm (Top)
  • Drive Bays:
    1x 3.5 inch
    2x 2.5 inch
  • Expansion Slots: 5x
  • I/O Panel:
    1x USB-C (3.2, Gen2, 10 Gbps)
    2x USB-A (3.0, Gen1, 10 Gbps)
    1x Front Audio
  • Maximum GPU Length: 430 mm
  • Maximum CPU Cooler Height: 180 mm
  • Maximum PSU Length: 200 mm

  Colour
  Primary Colour	Black
  Dimensions
  Length / Depth	460.2 mm
  Width	236.4 mm
  Height	420.9 mm
  Weight	8 kg
  Case
  Case Type	Mid Tower
  Motherboard Support
  Compatible Motherboard Formats	Micro-ATX, Mini-ITX
  Max. Motherboard Format	Micro-ATX
  Internal Dimensions
  Max. CPU Cooler Height	180 mm
  Max. GPU Length	430 mm
  Max. PSU Length / Depth	200 mm
  Power Supply
  PSU included	No
  PSU Format	ATX
  Fan Support
  120 mm fans	10
  140 mm fans	4
  Radiator Support
  Max. Radiator Compatibility	360
  Drive Bays
  2.5 inch internal drive bay	2
  3.5 inch internal drive bay	1
  External Ports
  USB 3.2 (external) Type C	1
  USB 3.0 (external) Type A	2
  Audio outputs & inputs	1x output + 1x input (3.5 mm jack, 3-pin, TRS)
  Case Features
  Side panel	with window
  Front door	No
  Filters Included	No
  Back Connect
  Back Connect	Yes
  Back-Connect Compatibility	ASUS BTF, MSI Project Zero
  Expansion Slots
  Expansion slots / PCI slots	5
  Materials
  Materials	Steel, Tempered Glass
  Lighting
  Lighting / RGB	No
  Fan / RGB control	Yes
