Jonsbo C6 PC-kompiuterio korpusas, Mini-Tower, ITX, mit Tragegriff – baltos spalvos

Aprašymas

• • Small case for motherboards up to ITX form factor
  • Installation of up to three fans
  • For GPUs up to 255 mm and CPU coolers up to 170 mm
  • Space for two drives
  • 1x USB-C and 1x USB-A on the front panel

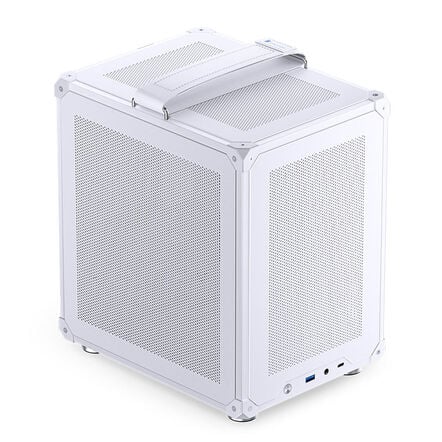

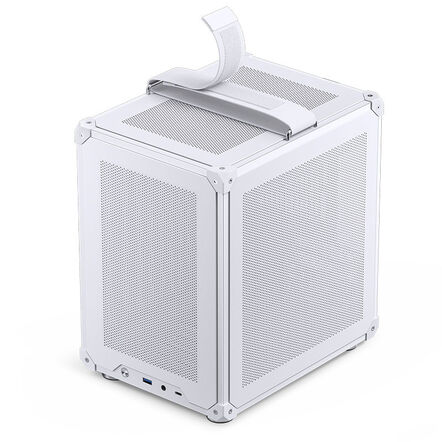

  The Jonsbo C6-ITX Case

  The Jonsbo C6-ITX impresses with its simple white design, which, thanks to its compact mini-tower format, takes up little space while still providing enough room for your hardware. Its light weight makes it easy to place on your desk.

  Hardware Capabilities

  The case supports the installation of graphics cards up to 255 mm in length and CPU coolers up to 170 mm in height. It also accommodates up to two 2.5 / 3.5-inch drives. It supports motherboards up to the ITX standard.

  Effective Cooling through Design and Connectivity

  To ensure optimal cooling of your hardware, you have the option to install up to three fans. Note that the fan at the bottom can only be installed if you forgo the HDD.

  At the front of the case, there is a fast USB-C port, a USB-A port, and an audio jack.

  Specification

  • Colour: White
  • Material: Steel
  • Dimensions: 202 x 295.5 x 266 mm (W x H x D)
  • Weight: 2.5 kg
  • Form factor: ITX, Mini-DTX
  • Fans possible in total:
    1x 120 mm (top)
    1x 120 mm (bottom)
    1x 120 mm (rear)
  • Drive bays:
    1x 2.5 inch
    1x 3.5 inch
  • Expansion slots: 4x
  • I/O panel:
    1x USB-C
    1x USB-A
    1x Audio / Mic
  • Maximum graphics card length: 255 mm
  • Maximum CPU cooler height: 170 mm
  • PSU: ATX (max. 140 mm)

  Colour
  Primary Colour	White
  Dimensions
  Length / Depth	266 mm
  Width	202 mm
  Height	295.5 mm
  Weight	2.5 kg
  Case
  Case Type	Mini Case
  Motherboard Support
  Compatible Motherboard Formats	ITX, Micro-ATX
  Max. Motherboard Format	Micro-ATX
  Internal Dimensions
  Max. CPU Cooler Height	170 mm
  Max. GPU Length	255 mm
  Max. PSU Length / Depth	140 mm
  Display
  Display Included	No
  Power Supply
  PSU included	No
  PSU Format	ATX
  Power Supply Position	rear top
  Fan Support
  Max. Number of Fans	3
  120 mm fans	3
  140 mm fans	2
  Radiator Support
  Max. Radiator Compatibility	no
  Drive Bays
  Max. 2.5 Inch Drives	2
  Max. 3.5 Inch Drives	1
  Max. 5.25 Inch Drives	0
  2.5 inch internal drive bay	2
  3.5 inch internal drive bay	1
  Hot swap drive bays	No
  External Ports
  USB 3.1 (external) Type C	1
  USB 3.0 (external) Type A	1
  Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
  Card reader	No
  Case Features
  I/O position	Front
  Side panel	with mesh
  Vertical GPU Mount	No
  Adjustable Vertical GPU Bracket	No
  Riser Cable Included	No
  Front door	No
  Cable Management	No
  Filters Included	No
  Noise dampening	No
  Mainboard slide / tray	No
  Transport System	Yes
  Back Connect
  Back Connect	No
  Expansion Slots
  Expansion slots / PCI slots	4
  Features
  Housing Feedthrough	No
  Fan Header
  Fan Controller / Fan Hub	No
  Mounting
  Case VESA Mountable	No
  Internal Monitor Mount	No
  Materials
  Materials	Steel
  Lighting
  Lighting / RGB	No
  Fan / RGB control	No
  Additional Contents
  Included fans	None
