Jonsbo C6-ITX PC kompiuterio korpusas, Mini-ITX – juodos spalvos

Aprašymas

• • Small case for motherboards up to ITX form factor
  • Installation of up to three fans
  • For GPUs up to 255 mm and CPU coolers up to 75 mm
  • Space for a 2.5 or 3.5-inch drive
  • 1x USB-C and 1x USB-A on the front panel

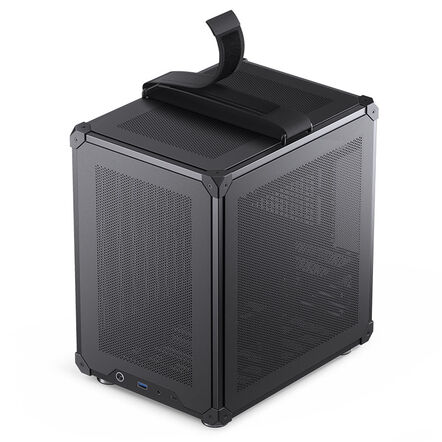

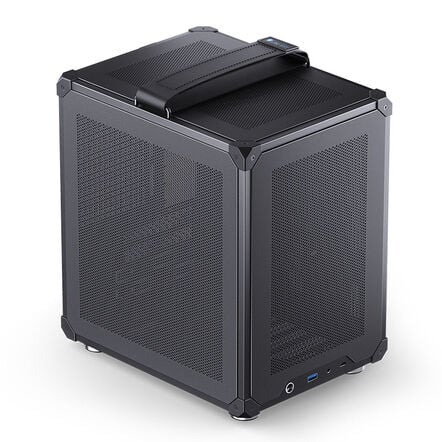

  The Jonsbo C6-ITX Case

  The Jonsbo C6-ITX impresses with its simple black design, which takes up little space due to its compact mini-tower format while still providing ample room for your hardware. You can easily place it on your desk due to its light weight.

  Hardware Options

  The case supports the installation of graphics cards up to a length of 255 mm and CPU coolers up to a height of 170 mm. A 3.5-inch or a 2.5-inch drive can also be installed. It supports motherboards up to the mini-DTX standard.

  Effective Cooling through Design and Connectivity

  To ensure optimal cooling for your hardware, you have the option to install up to three fans. Note that the fan at the bottom can only be installed if you forgo the HDD.

  At the front of the case, there is a fast USB-C port, a USB-A port, and an audio port.

  Specification

  • Colour: Black
  • Material: Steel
  • Dimensions: 202 x 295.5 x 266 mm (W x H x D)
  • Weight: 2.5 kg
  • Form factor: Mini-ITX, Mini-DTX
  • Total fans possible:
    1x 120 (Top)
    1x 120 mm (Bottom)
    1x 120 mm (Rear)
  • Drive bays:
    1x 2.5/ 3.5 inch
  • Expansion slots: 4x
  • I/O panel:
    1x USB-C
    1x USB-A
    1x Audio / Mic
  • Maximum graphics card length: 255 mm
  • Maximum CPU cooler height: 170 mm
  • PSU: ATX (max. 140 mm)

  Colour
  Primary Colour	Black
  Dimensions
  Length / Depth	266 mm
  Width	202 mm
  Height	295.5 mm
  Weight	2.5 kg
  Case
  Case Type	Mini Case
  Motherboard Support
  Compatible Motherboard Formats	ITX, Mini-DTX
  Max. Motherboard Format	Mini-DTX
  Internal Dimensions
  Max. CPU Cooler Height	170 mm
  Max. GPU Length	255 mm
  Max. PSU Length / Depth	140 mm
  Display
  Display Included	No
  Power Supply
  PSU included	No
  PSU Format	ATX
  Fan Support
  120 mm fans	3
  Drive Bays
  1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)	1
  Hot swap drive bays	No
  External Ports
  USB 3.1 (external) Type C	1
  USB 3.0 (external) Type A	1
  Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
  Card reader	No
  Case Features
  I/O position	Front
  Side panel	with mesh
  Front door	No
  Noise dampening	No
  Mainboard slide / tray	No
  Remote included	No
  Transport System	Yes
  Back Connect
  Back Connect	No
  Expansion Slots
  Expansion slots / PCI slots	4
  Materials
  Materials	Steel
  Lighting
  Lighting / RGB	No
  Fan / RGB control	No
  Additional Contents
  Included fans	None
