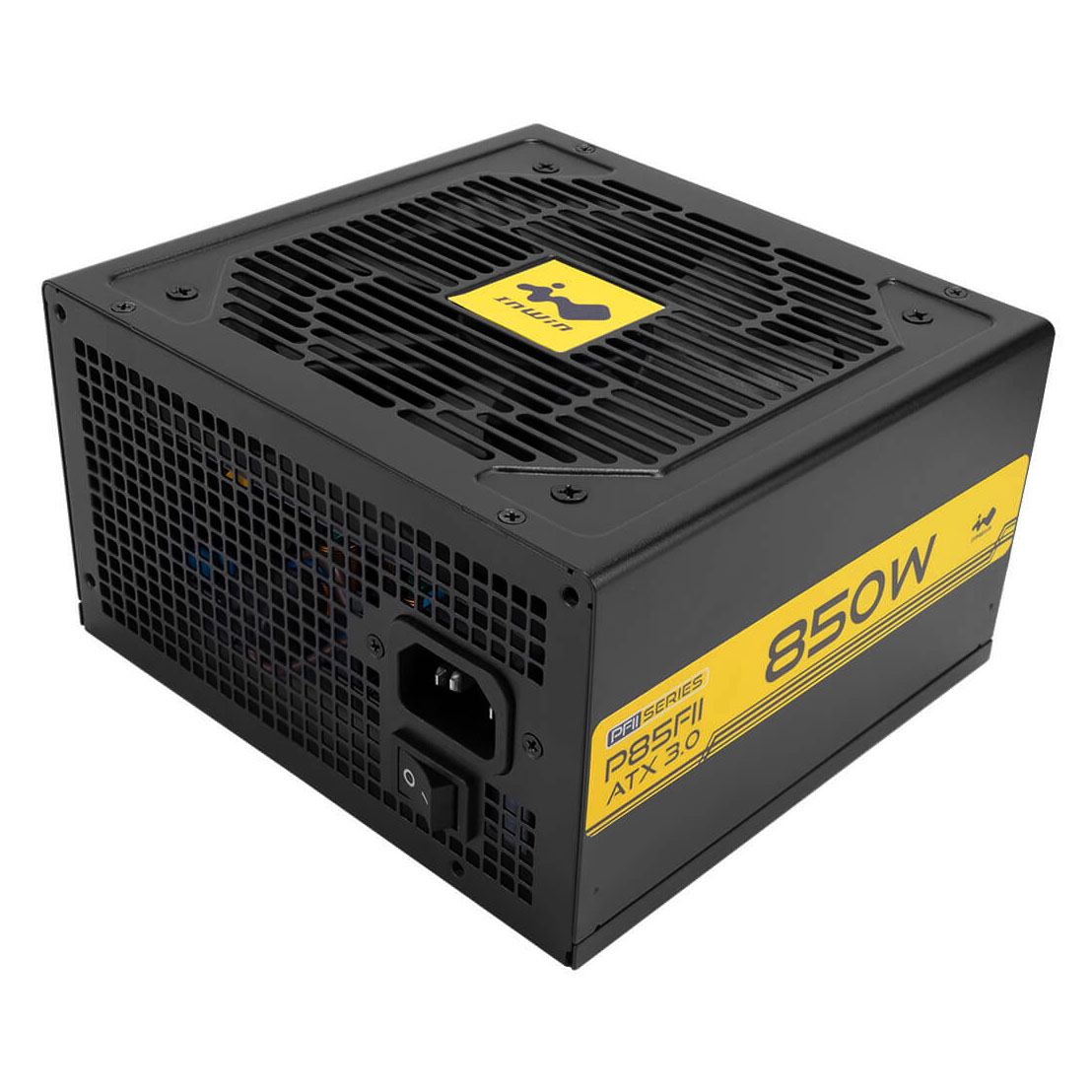

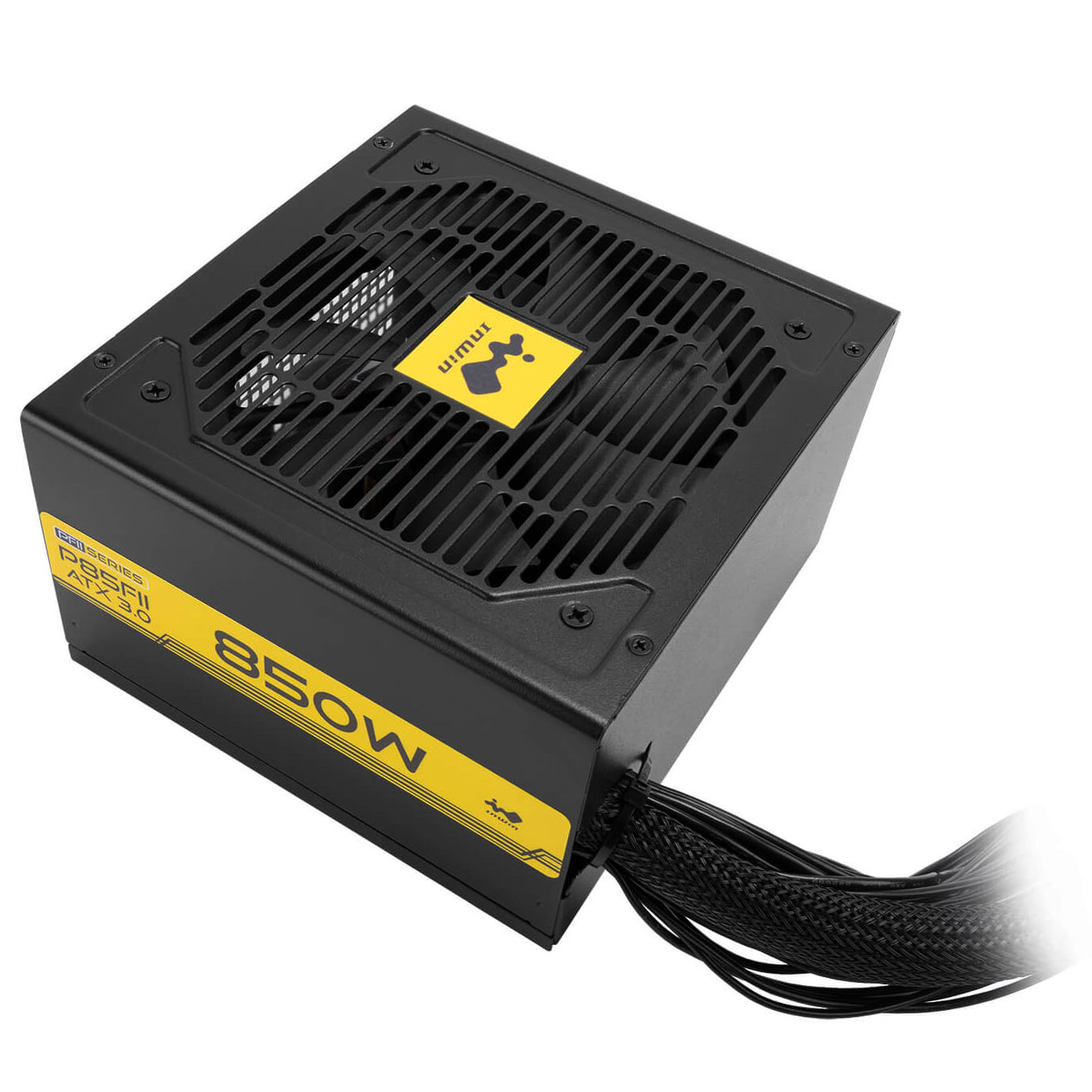

InWin P85FII PSU 80 PLUS Gold, ATX 3.0, PCIe 5.0 – 850 Watt

• 850-watt powerful ATX 3.0 power supply from InWin
• High efficiency with 80 PLUS Gold certification
• Supports PCIe 5.0 16-pin power connector and is certified with Intel’s PSDG (Power Supply Design Guide)
• Strong 12V single rail with 70.8 amps
• Quiet 120 mm fan with semi-passive operation
• Four 6+2-pin PCIe connectors for graphics cards

Features of the InWin P85FII 80 PLUS Gold in detail

InWin’s P-series power supplies represent the manufacturer’s premium range and are offered in various power and efficiency levels. With the P85FII, InWin focuses on 80 PLUS Gold certified power supplies with high efficiency.

The InWin P85FII impresses not only with its minimalist design but especially with its high efficiency of over 90 percent at medium load. The model provides 850 watts of power and a 70.8-amp strong 12V single rail. This allows the crucial +12-volt rail to be loaded with the full rated power if needed – ideal for fast graphics cards and modern processors. The +3.3V and +5V rails can deliver a combined 100 watts – sufficient for numerous drives.

Numerous connections

In addition to the mandatory 20+4-pin and 4+4-pin connectors, there are four 6+2-pin graphics card connectors and a 16-pin PCIe 5.0 connector. This 750-watt power supply is therefore suitable for a multi-GPU setup. Additionally, six SATA, three 4-pin Molex, and one floppy drive connector can be attached.
