    SwitchBot Relay Switch 1 intelligent switch with voltage-free contact

    SwitchBot Relay Switch 1 is a revolutionary solution for anyone who wants modern automation without costly replacement of the electrical system. With Matter certification, you can connect up to two SwitchBot Bluetooth devices and manage them centrally via Apple Home, Alexa, Google Home or SmartThings – all from one convenient app. This is an ideal option for those who value simplicity and versatility in their daily use.

    SwitchBot smart switch in purple case with blue screw terminals and wiring diagram

    Bluetooth over a longer distance

    The built-in Bluetooth repeater is a feature that really makes a difference in larger homes. The SwitchBot can support up to 10 Bluetooth devices from the SwitchBot family simultaneously, extending the network’s range up to 80 meters in open space. This will ensure that your motion sensors, locks, thermometers or reed switches will work seamlessly regardless of the size of your apartment, and Wi-Fi range will reach up to 50 meters in an open area inside the building.

    ESP32 chip mounted on a PCB with blue backlighting, surrounded by other electronic components

    Quick upgrade of traditional devices

    You don’t need to replace switches or rebuild the installation – a 10-minute installation behind an electrical box is enough. SwitchBot Relay Switch 1 works with many types of switches: classic bi-stable switches, monostable buttons used in intercoms, detachable switches, and the Edge Switch function, which changes the state of the device each time it is pressed regardless of the previous position. This makes it easy to transform ordinary lights, outlets or garage doors into full-fledged smart home components.

    Two SwitchBot modules in purple with blue terminals, shown front and back against a white background

    Voice control and schedules

    Do you forget to turn off the lights when leaving the house? SwitchBot Relay Switch 1 allows you to remotely control your devices via Wi-Fi, Bluetooth, Alexa and Google Assistant voice commands and automatic schedules. You can set your garden to be watered on sunny days, automatically turn on the lights at dusk, and many other actions to fit your lifestyle – without having to physically touch the switch.

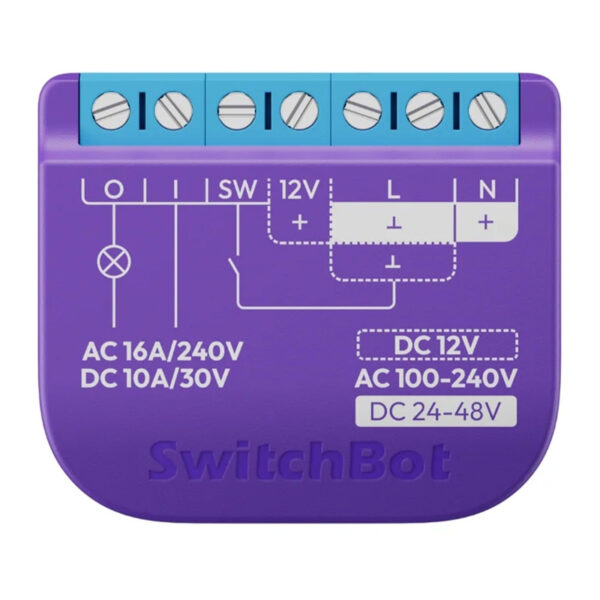

    Front view of the purple SwitchBot with the connections described: AC 16A/240V, DC 10A/30V and DC 12V

    Safety first

    The SwitchBot Relay Switch 1 was designed with users’ peace of mind in mind. With a V0 fire rating enclosure and built-in overheat protection, the device automatically cuts power in an emergency situation – for example, if the temperature exceeds 100°C – protecting the electrical system and your home from potential danger.

    Perspective view of electronic module with chip in blue cover, black components and purple housing



    Manufacturer SwitchBot
    Model Relay Switch 1
    Dimensions 42 × 36 × 16 mm (±0.5 mm)
    Weight 27 g
    Material PC
    AC power supply 100-240 V, 50/60 Hz
    DC power supply 24-48 V, 12 V
    Maximum AC output current 16 A
    Maximum DC output current 10 A
    Connection method Wi-Fi + BLE
    Installation method Flush mounting
    Bluetooth range Up to 10 m indoors / up to 30 m outdoors
    Wi-Fi range Up to 30 m indoors / up to 50 m outdoors
    Certifications US: FCC, EU: CE, ROHS
    Push button function On/off control of connected devices (lights, outlets, access control, etc.)
    Protection against overheating Yes (automatic disconnection when 100°C is exceeded)
    Switch modes Toggle Switch, Momentary Switch, Detached Switch, Edge Switch
    Matter integration Yes (device displayed as a switch in the Home app, ability to add Matter secondary devices)
    Maximum number of Bluetooth SwitchBot devices 10
