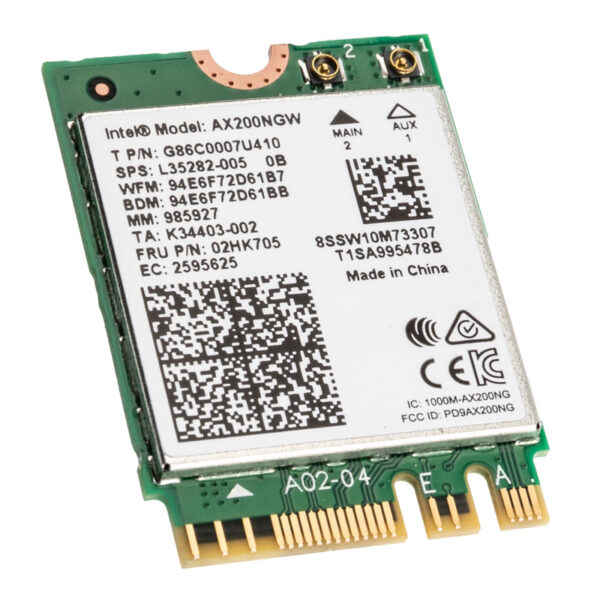

Intel Wi-Fi 6 AX200, WLAN + Bluetooth 5.0 Adapter – M.2/A-E-key
Prekės kodas: @1669414
AX200.NGWG.NV
19,60 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-18*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Intel M.2 expansion card: High-speed WLAN with 802.11ax standard and Bluetooth 5.0, up to 2.402 Gb/s, WEP 64/128 bit, WPA/WPA2/WPA3
- Wireless
- PCI Express WLAN
- 2400 Mbit/s
- Wi-Fi Dual-band (2.4 GHz / 5 GHz) Bluetooth 5
- Internal Component for: PC/Laptop
Orthogonal Frequency-Division Multiple Access (OFDMA)
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low-data-rate transmission from several users.
|
Ports & interfaces
|
|
|
Connectivity technology
|
Wireless
|
|
Host interface
|
PCI Express
|
|
Interface
|
WLAN
|
|
Network
|
|
|
Maximum data transfer rate
|
2400 Mbit/s
|
|
Networking standards
|
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w
|
|
Wi-Fi
|
Yes
|
|
Wi-Fi band
|
Dual-band (2.4 GHz / 5 GHz)
|
|
Top Wi-Fi standard
|
Wi-Fi 6 (802.11ax)
|
|
Wi-Fi standards
|
Wi-Fi 6 (802.11ax)
|
|
Security algorithms
|
64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
|
|
MU-MIMO
|
Yes
|
|
Bluetooth
|
Yes
|
|
Bluetooth version
|
5
|
|
Design
|
|
|
Component for
|
PC/Laptop
|
|
Internal
|
Yes
|
|
Antenna type
|
2×2
|
|
Package size
|
22 x 30 x 2.4 mm
|
|
System requirements
|
|
|
Compatible operating systems
|
Windows 10, 64-bit*|Linux*
|
|
Windows operating systems supported
|
Windows 10 x64
|
|
Linux operating systems supported
|
Yes
|
|
Other operating systems supported
|
ChromeOS
|
|
Operational conditions
|
|
|
Operating temperature (T-T)
|
0 – 80 °C
|
|
Weight & dimensions
|
|
|
Width
|
22 mm
|
|
Depth
|
30 mm
|
|
Height
|
2.4 mm
|
|
Weight
|
2.83 g
|
|
Other features
|
|
|
Minimum operating temperature
|
0 °C
|
|
Maximum operating temperature
|
80 °C
|
|
Supported Under vPro
|
Yes
|
|
Interface type
|
Wi-Fi(PCIe), BT(USB)
|
|
Launch date
|
Q2’19
|
|
Product brief URL
|
https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf
|
|
Product type
|
Wireless
|
|
Status
|
Launched
|
|
Processor family
|
Intel Wi-Fi 6 Products
|
|
Export Control Classification Number (ECCN)
|
5A992CN3
|
|
Commodity Classification Automated Tracking System (CCATS)
|
G165483
|
|
Compliance
|
FIPS, FISMA
|
|
Product series
|
Intel® Wireless Products
|
|
Product codename
|
Cyclone Peak
|
