Intel Arc B580 Limited Edition Grafikkarte, 12288 MB GDDR6
Prekės kodas: 1240963
31P06HB0BA
313,15 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Efficient dual-fan cooler design with semi-passive cooling
- High GPU clock: 2,670 MHz
- 12 GB GDDR6 graphics memory
- Fast VRAM with an effective 19,200 MHz
- Wide memory interface of 192 bits
- Large memory bandwidth of 461 GB/s
- Video outputs: 3x DP 2.1 and 1x HDMI 2.1

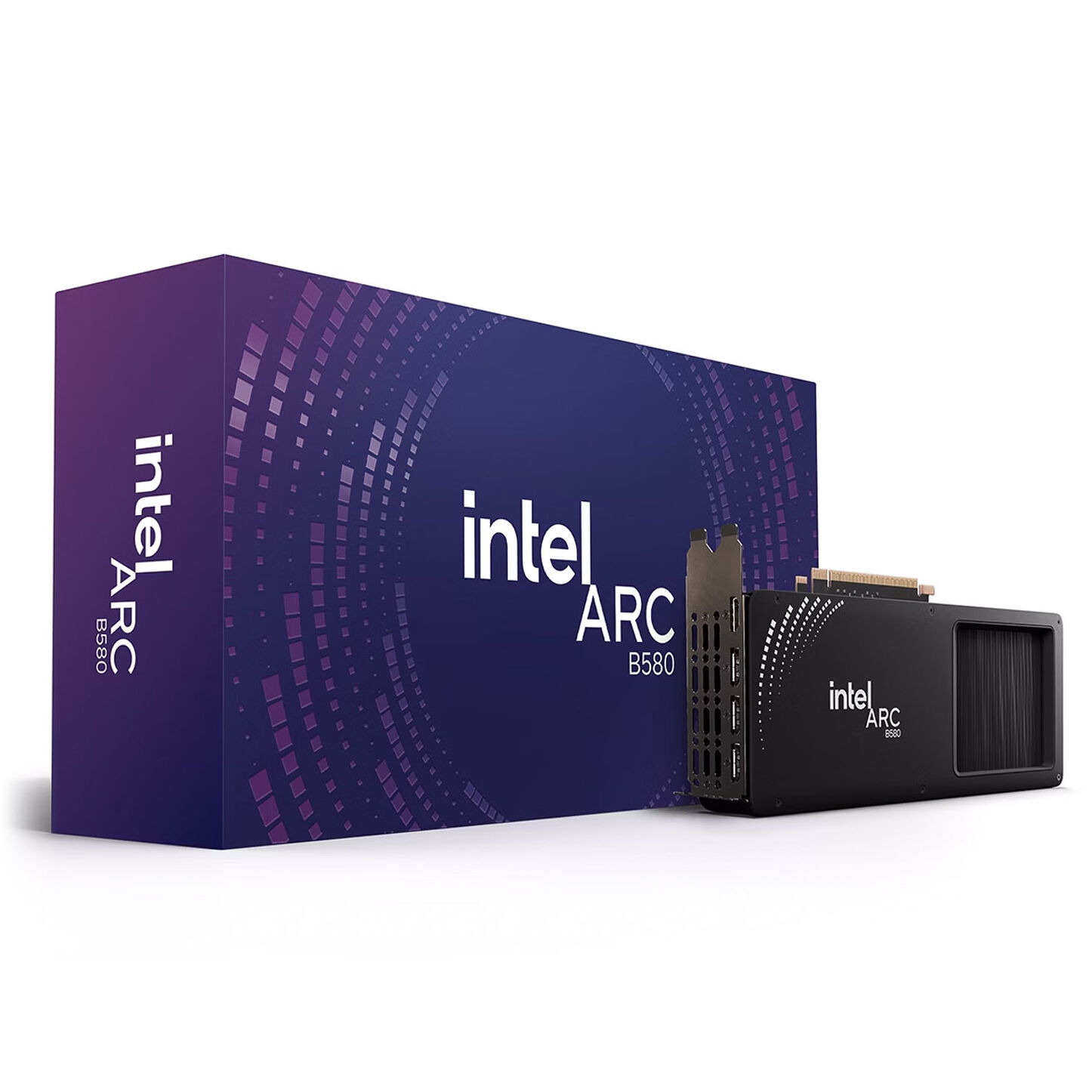

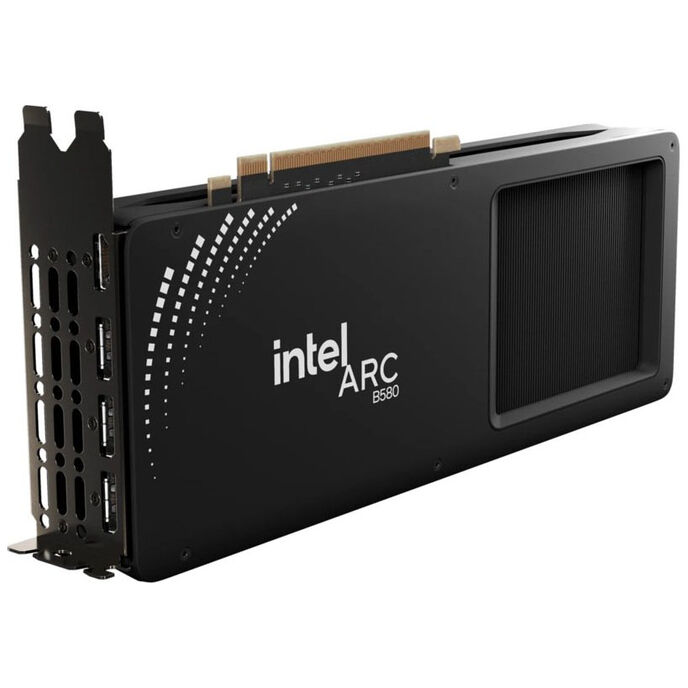

The Arc B580 Limited Edition Intel Battlemage graphics card in detail
The Intel Arc B580 Limited Edition is equipped with a graphics processor specially developed by Intel for gamers and content creators, along with fast GDDR6 graphics memory. This gaming graphics card is the perfect choice for smooth gaming at WQHD resolution with high graphics presets. In addition to high rasterisation performance, the Intel ARC B580 features dedicated ray tracing units that enable the computation of stunning ray tracing effects in real-time.
Powerful graphics with 12 GB GDDR6 and efficient dual-fan cooling system
Intel’s BGM-G21 graphics chip based on the Xe2-HPG GPU architecture ensures high graphics performance. The maximum boost clock of the graphics processor is 2,670 MHz, while the 12 GB GDDR6 memory boasts an effective clock frequency of 19,200 MHz. The Arc B580 Limited Edition is kept at low temperatures by the dual-fan cooling system developed by Intel.
Your case should provide at least three expansion slots for this graphics card. The manufacturer recommends a power supply with a minimum output of 600 watts.
Colour | |
Primary Colour | Black |
Dimensions | |
Length / Depth | 272 mm |
Width | 115 mm |
Height | 44 mm |
Graphics Card | |
GPU Series | Intel ARC |
GPU Model | Intel ARC B580 |
GPU Series Name | Intel ARC B580 |
Graphics Chip | Intel BMG-G21 |
Manufacturing Process | 5 nm |
Shader Units | 2560 |
Raytracing Cores / Ray Acceleratorss | 20 |
GPU Memory Type | GDDR6 |
Slot Type Standard | PCIe 4.0 |
GPU Memory Size (GB) | 12 |
GPU Memory Interface (bit) | 192 |
GPU Memory Bandwidth (GB/s) | 456 |
GPU Effective Memory Clock (MHz) | 2670 |
Xe Cores | 20 |
Clock Speeds | |
Max. GPU Clock (Base) | 1700 MHz |
Max. GPU Clock (Boost) | 2670 MHz |
Max. Memory Clock | 19200 MHz |
Cooling | |
Number of GPU Fans | 2 |
Water Cooling | |
Watercooling | No |
Internal Ports | |
Required Power Connectors | 8-pin PCIe (1x) |
External Ports | |
Display Connectors | Display Port (3x), HDMI (1x) |
Expansion Slots | |
Expansion Slots Required | 2.5 Slots |
Standards / Specifications | |
Adaptive Sync Technology (G-SYNC / FreeSync) | adaptiveSync |
AI | |
AI Acceleration | Yes |
AI Accelerator | XeCores |
Lighting | |
Lighting / RGB | No |
