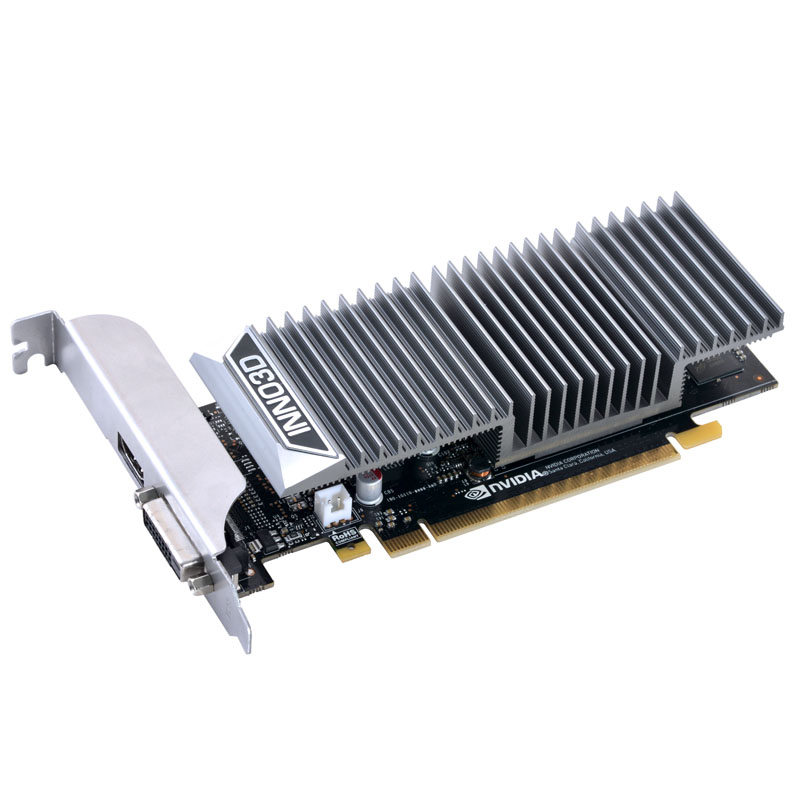

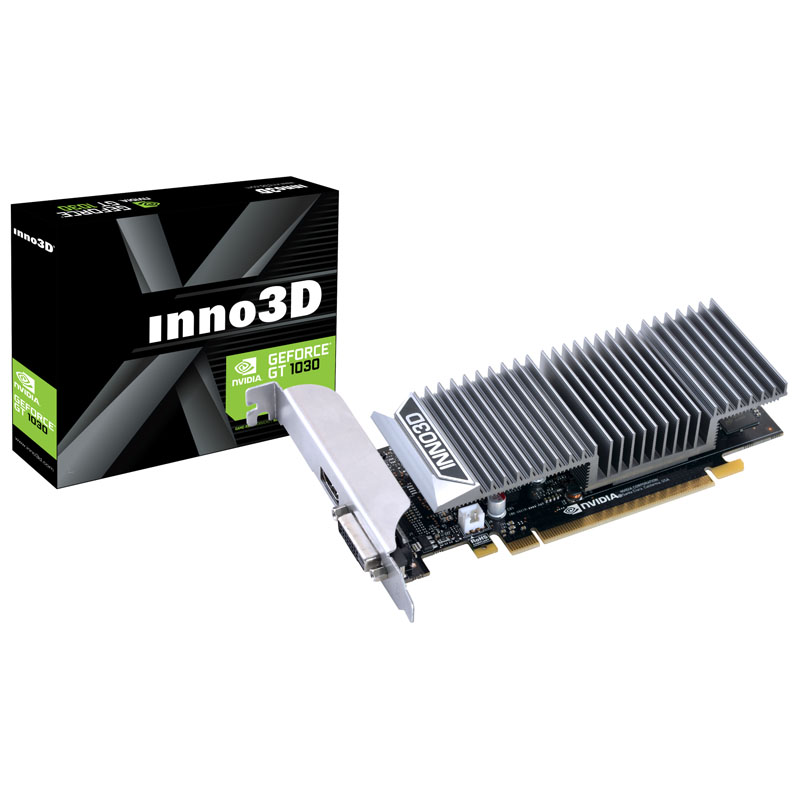

INNO3D GeForce GT 1030 0dB, 2048 MB GDDR5

The INNO3D GeForce GT 1030 0dB is clocked as standard at 1.227 MHz, should additional performance be required GPU Boost 3.0 increases the base clock to 1.468 MHz Boost-Clock angehoben. The 2 GB VRAM is connected to the GPU via a 64-Bit interface and is clocked at 6.000 MHz. The low 30 Watt TDP of the graphics card allows it to be entirely passively cooled, meaning the graphics card is exceptionally quiet.

The Features of the INNO3D GeForce GT 1030 0dB:

• Passive cooler design for whisper-quiet running
• GPU base clock: 1.227 MHz
• GPU boost clock: 1.468 MHz
• Memory frequency: 3.000 MHz (6.000 MHz effective)
• No additional power connector required

NVIDIA’s GeForce GT 1030: Affordable & Efficient Full-HD Performance

The NVIDIA GeForce GT 1030 from the 10-series is, as an entry level graphics card, focused on energy efficiency and is therefore both affordable and efficient. The combination of a 16 nm FinFET manufacturing process, „Pascal” GPU architecture, and its specifications, enable the reference card to run without any additional power connectors while the GPU108 GPU allows the display of many of the most popular online games in Full HD resolution. Apart from the 2 GB GDDR5 VRAM the GeForce GT 1030 also comes with 384 CUDA Cores.

In order to exploit the full potential of the card in the long term, drivers from NVIDIA or INNO3D should be downloaded and installed at regular intervals.

Technical Details:

• Dimensions: 167 × 55 mm (W × H)
  Slot Height: 2-Slot
• GPU: NVIDIA GeForce GT 1030
  Type: Maxwell GP108-300
  Manufacturing Process: 16 nm
  GPU Frequency: 1.227 MHz
  Boost Clock: 1.468 MHz
  Shader Units (CUDA Cores): 384
• VRAM: 2.048 MB
  Memory Frequency: 3.000 (6.000) MHz
  Type: GDDR5
  Memory Bandwidth: 64-Bit
• Slot Type: PCIe x16 (PCIe/PCIe 2.x/PCIe 3.0)
• Ports:
  1× HDMI 2.0
  1× DVI-D (Dual-Link)
• Power Supply: Powered via PCIe-slot
  Typical Power Usage Under Load: 30 Watt
  Recommended Power Supply: min. 300 Watt
