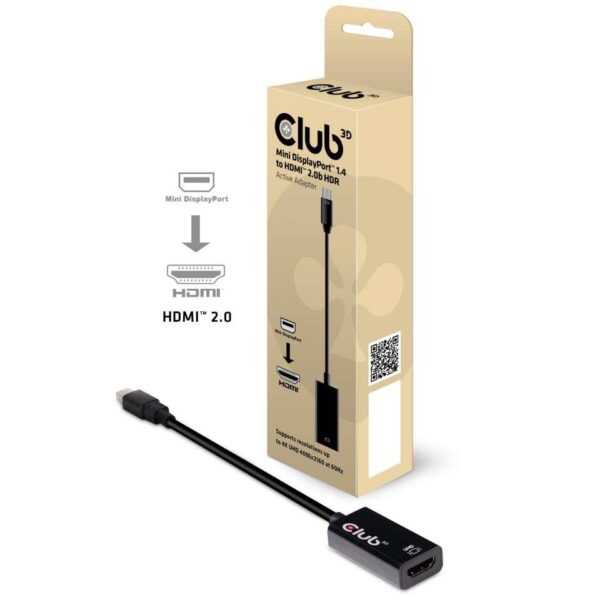

I/O ADAPTER MINI DP TO HDMI/ACTIVE M/F CAC-1180 CLUB3D
35,02 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
Mini DisplayPort 1.4 to HDMI 2.0b HDR
CAC-1180 – The Club3D is a Mini DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The Mini DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b.Supports up to 4K UHD Resolutions. The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:2:2 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:2:2 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and / or HDMI™ 2.0 a or b.
Specifikacija
| Vendor Homepage | www.club-3d.com/en/detail/2443/mini_displayport_1.4_to_hdmi_2.0b_hdr/ |
| Category Code | IOC |
| CnCode | 84733080 |
| Unit Box Height | 0.035 |
| Unit Box Length | 0.215 |
| Unit Box Width | 0.065 |
| HDMI | 1 |
| Mini DisplayPort | 1 |
| Model | CAC-1180 |
| Product Type | Adapter |
| Dimensions | 168.6 x 20 x 11 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0004891 |
| Product Net Weight | 0.03 |
| Unit Calculated Weight | 0.05 |
