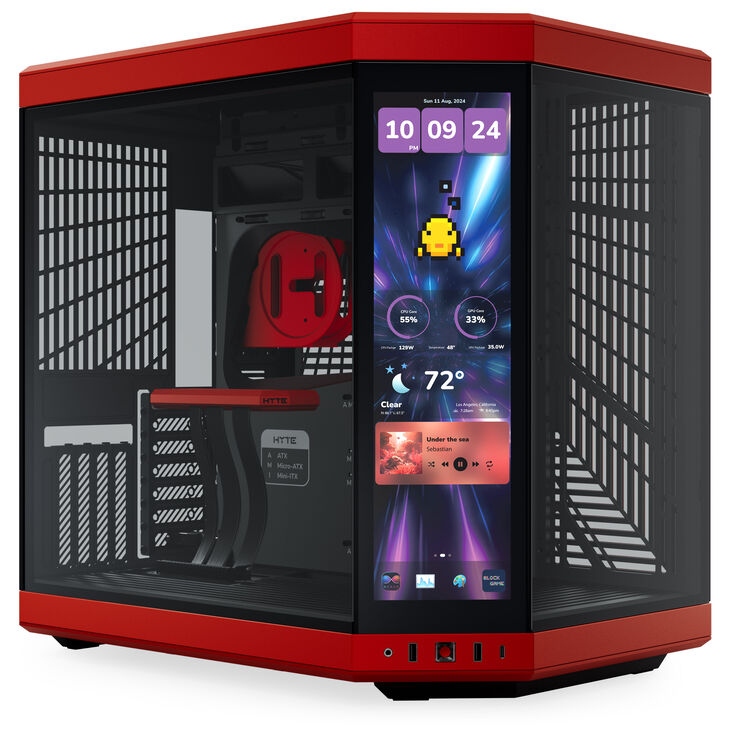

Hyte Y70 Touch Infinite kompiuterio korpusas, Mid Tower, ATX, Tempered Glass – Black Cherry

• Midi tower with improved integrated 2,5K screen including touch function
• 688 x 2,560 (2.5K) resolution and 60Hz refresh rate
• Tempered Glass side panel and front
• Fresh air supply at the bottom
• Vertical mounting of the graphics card possible
• PCIe 4.0 riser cable included
• Radiators possible on the side, top, or rear
• Graphics cards up to a length of 390mm possible
• Maximum CPU cooler height of 180mm

Exceptional design and functionality

With the Hyte Y70 Touch Infinite, you enter new territory when it comes to the look of your PC build. The midi tower offers you a 360-degree view of your hardware with its front and large, three-part Tempered Glass panoramic window, allowing you to see not only from the side. With built-in ventilation slots at the bottom and side of the case, you optimally supply your hardware with cool air.

Furthermore, it is up to you whether you prefer water or air cooling for your components. Due to the exceptional layout, the Y70 is well prepared for both options.

The horizontal PCI slots are low-profile. You can optionally mount your graphics card vertically using the PCIe 4.0 riser cable included in the delivery, showing it off to everyone.

Good airflow through Cold Floor Cooling

In the Hyte Y70 Touch Infinite, large components with high power requirements find their place. Therefore, the case is designed to be very open and focused on unobstructed airflow. Through the Cold Floor, fresh air is drawn in from below and unhindered into the interior of the case. There, it then meets the most important and warmest components like the CPU and GPU, providing very good cooling. With many fan options, the heated air is quickly and efficiently expelled from the case.

At the bottom, either 3x 120mm fans or 2x 140mm fans can fit. On the top, three 120mm fans can fit, on the side three 120mm or two 140mm fans, and on the rear 1x 120mm or 1x 140mm fan. Additionally, easily cleanable dust filters are attached to the top, bottom, and side to prevent dust build-up.

For those planning to install a water cooling system, there is ample space on the side for a 280mm or 360mm radiator with a maximum height of 125mm. Radiators up to 280mm or 360mm can be placed on the top of the case. The rear offers the option to use a 120mm or 140mm radiator, for example, for small all-in-one water cooling systems.

Space for components and vertical GPU

The Y70 Touch Infinite offers the possibility to install E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards. This provides a wide range of platforms and configurations. Moreover, CPU coolers up to a height of 180mm and high-end graphics cards up to a maximum length of 390mm can be accommodated. If you wish to showcase your graphics card in the large window, you can optionally mount it vertically. The required riser cable is already included in the delivery.

With its positioning behind the motherboard, the power supply unit is shielded from the rest of the case. This ensures that the heat generated by the power supply does not enter the main chamber of the case, where the other warm components are located, resulting in lower temperatures inside the case. By directing the power supply unit to draw fresh air from the side rather than the bottom, it helps prevent dust build-up and ensures a longer life for your power supply unit. For power-hungry hardware, optional ATX power supplies up to a size of 235mm (with cables) can be placed under the cover.

Mounting options for storage and I/O panel

In the Y70 Touch Infinite, there are plenty of mounting options for storage drives. You can choose to accommodate two 3.5-inch or four 2.5-inch drives. This provides you with enough storage for your games and applications.

The sleek, aquarium-like design of the Y70 Touch Infinite allows for building inconspicuous builds with good cooling performance. The side panel and front are made of Tempered Glass, allowing for a good view of the internal components. This also paves the way for a show-stopping RGB build. The I/O panel does not disappoint fans of mobile storage. It features a power button, reset button, 3.5mm combined audio and microphone jack, two USB 3.0 Type-A ports, and a USB 3.1 Type-C port for faster file transfers. Moreover, it is angled and facing towards you.
