Habotest HT206A Digital Clamp Meter

Prekės kodas: @472654

19,35

Užsakomoji prekė.

Numatoma atsiėmimo*/išsiuntimo** data:

*atsiėmimo taške Ozo g. 20, Vilnius

**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo

Pranešti kai prekė vėl bus prekyboje

PASITEIRAUTI APIE PREKĘ

    PARAŠYKITE MUMS:

    Aprašymas

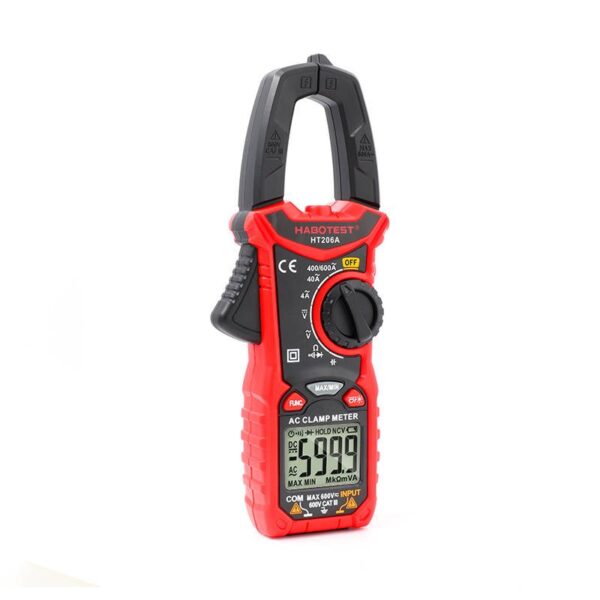

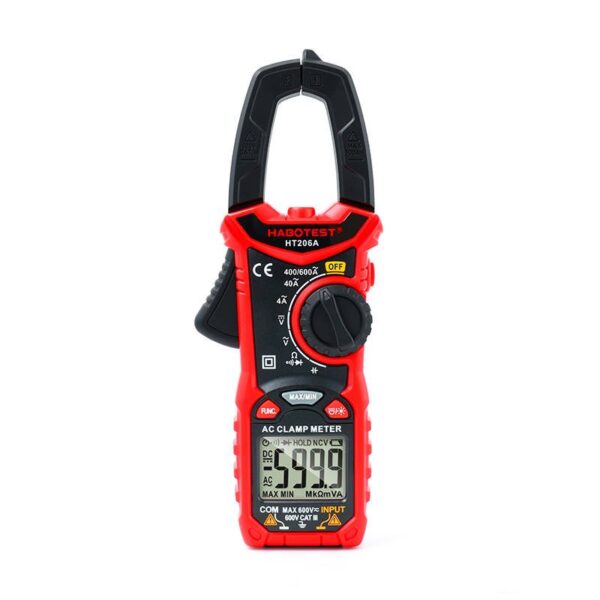

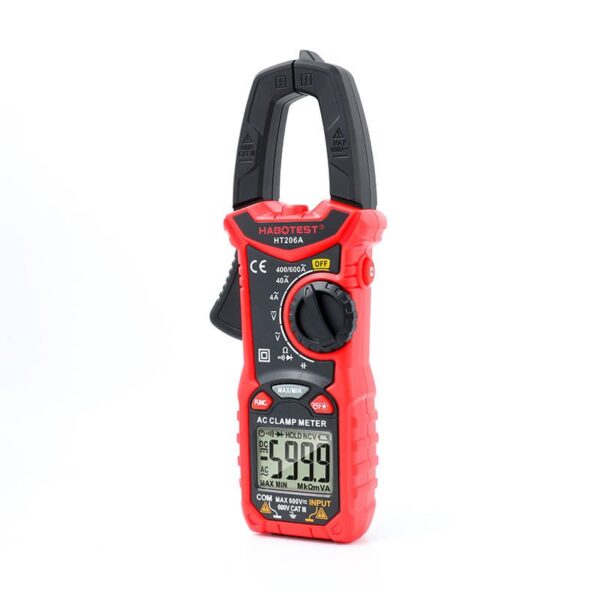

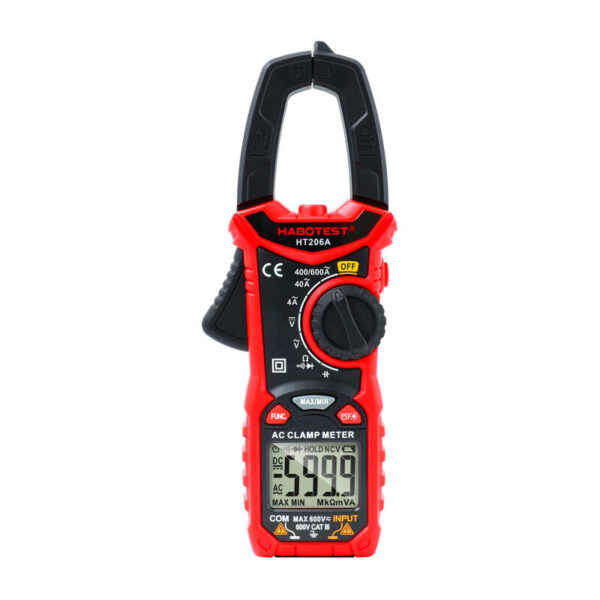

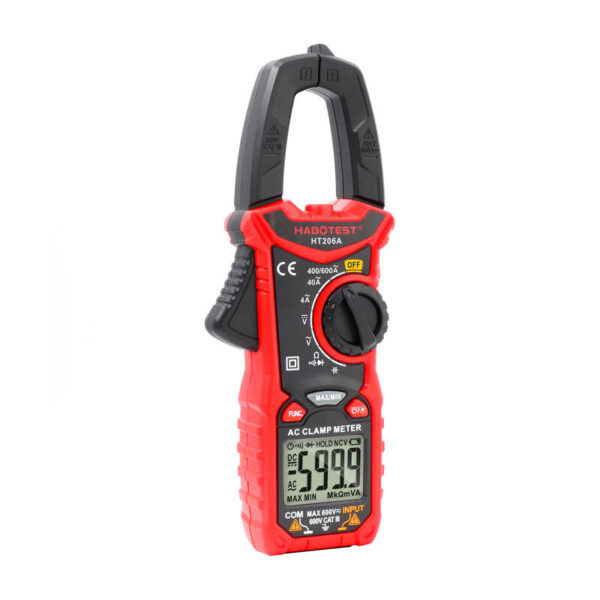

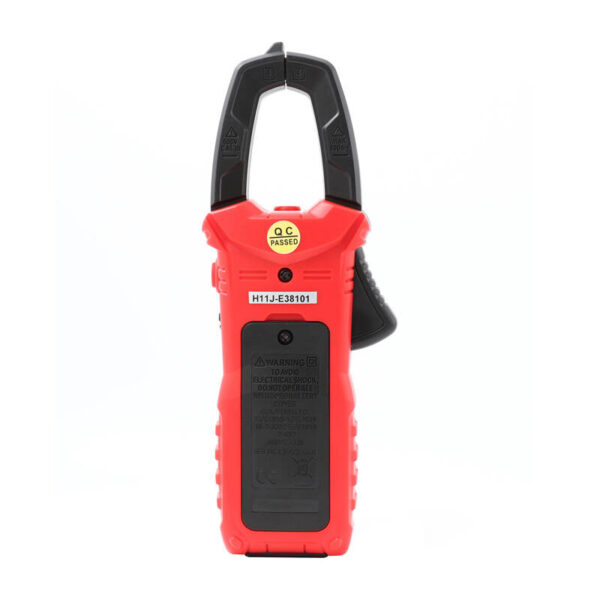

    Habotest HT206A digital clamp meter

    The functional clamp meter by Habotest guarantees precise measurement, the results of which are displayed on an easy-to-read, backlit LCD screen. The size of the jaws is up to 26mm, which allows for comfortable operation of the device. The HT206A is also equipped with a flashlight, which makes it easier to work in dark rooms.

    Measures various parameters

    With this universal meter you can check the value of many different parameters. Using the HT206A, you can measure AC voltage, AC current and resistance, among other things. But that’s not all! You can also easily check continuity and true RMS.

    Clear, practical display

    The meter is equipped with an LCD display with backlight in 2 colors. You will find on it not only the measurement results, but also for example a low battery indicator. This way you can comfortably use the HT206A. What’s more, the backlight will turn orange when the measured voltage exceeds 80V and the measured current exceeds 3A.

    Easy to use in all conditions

    The built-in flashlight provides bright illumination, so you can work even in dark places with ease. The operation of the device is also facilitated by intuitive buttons, with which, among other things, you can quickly and conveniently select the function, use the MAX/MIN measurement option, as well as turn the light on or off. An additional advantage of the meter is the option of storing data.

    Brand Habotest
    Model HT206A HT206D
    DC voltage measurement range 400mV/4V/40V/400V/600V ±(0,5%+5) 600mV/6V/60V/600V ±(0,5%+5)
    AC voltage measurement range 4V/40V/400V/600V ±(1.0%+5) 6V/60V/600V ±(0.8%+5)
    DC current measurement range Not applicable 60A/600A ±(2.5%+5)
    AC current measurement range 4A/40A/600A ±(2,5%+8) 60A/600A ±(2,5%+5)
    Resistance measurement range 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+5) 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+5)
    Capacitance measurement range 4nF/40nF/400nF/4μF/40μF/400μF/4mF ±(4.0%+5) 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF ±(4.0%+3)
    Frequency measurement range Not applicable 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3)
    Duty measurement range Not applicable 1%-99% ±(3,0%+3)
    Temperature measurement range Not applicable -40°C-1000°C ±(1.0%+2);
    -40°F-1832°C ±(1.0%+2)
    Counts 4000 6000
    Auto/manual range Auto Auto
    Continuity Yes, sound and light alarm Yes, sound and light alarm
    Diode test Yes Yes
    Data hold Yes Yes
    NCV No Yes, audible and light alarm
    Backlight Yes Yes
    Flashlight Yes Yes
    DCA Zero No Yes
    Low Battery Indicator Yes Yes
    Auto power off Yes Yes
    True RMS Yes Yes
    LPF No Yes
    MAX/MIN Yes Yes
    LowZ No Yes
    Power supply 2x AAA 1.5V batteries (included) 2x AAA 1.5V batteries (included)
    Weight About 260g About 260g
    Dimensions 193x73x34mm 193x73x34mm
    Size of jaws 26x44mm 26x44mm
    Safety EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V
