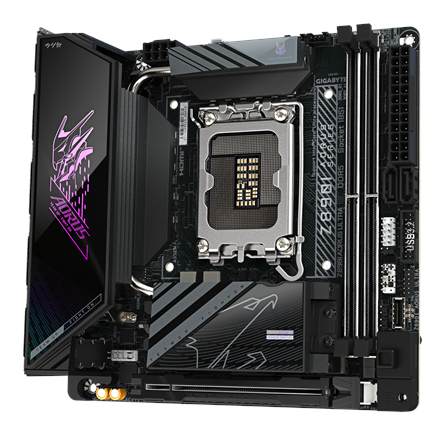

GIGABYTE Z890I AORUS Ultra pagrindinė plokštė, Intel Z890 – Sockel 1851, DDR5

Prekės kodas: 1240218

Z890I AORUS ULTRA

383,21

LIKUTIS: Turime
2025-10-08
PASITEIRAUTI APIE PREKĘ

    PARAŠYKITE MUMS:

    Aprašymas

    This motherboard is perfect for compact high-end systems.

    • 1x PCIe 5.0 x16 (x16)
    • 2x DIMM slots for max. 128GB DDR5 RAM up to 8,800MHz)
    • 2x M.2 (of which 1x PCIe 5.0 and 1x PCIe 4.0) / 2x SATA 6G
    • USB on the I/O panel: 1x USB4, 3x USB 3.1 and 2x USB 3.0
    • A total of 3x 4-pin connectors for fans & pumps

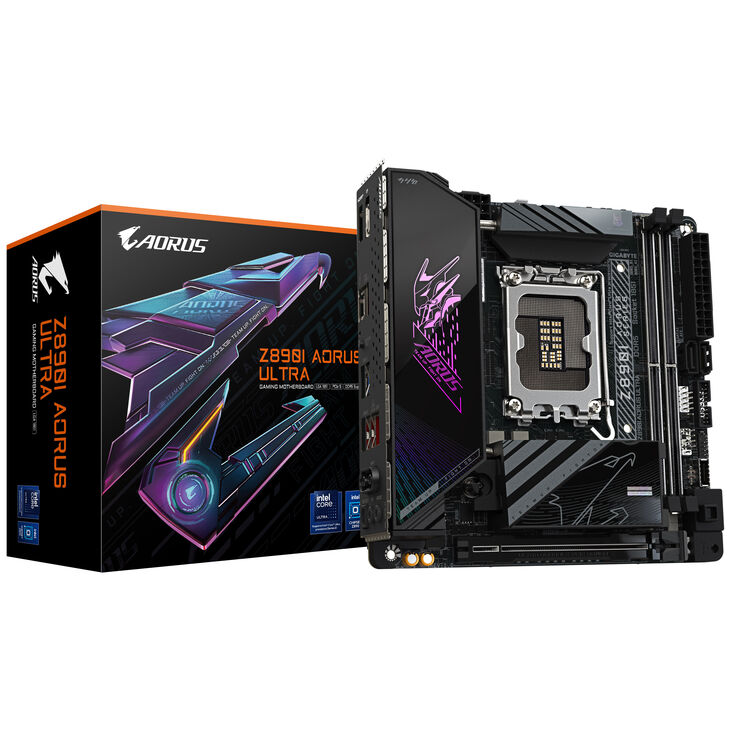

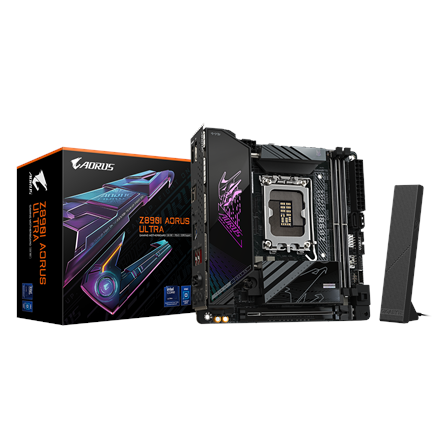

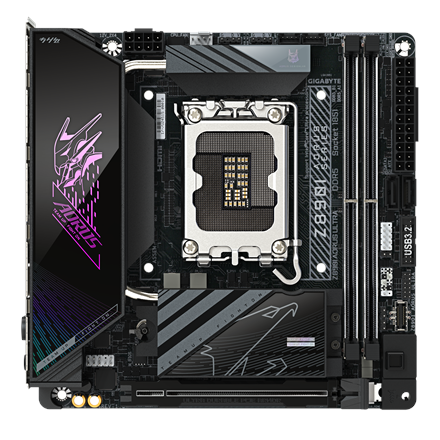

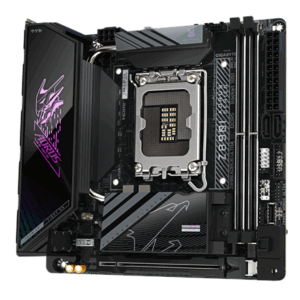

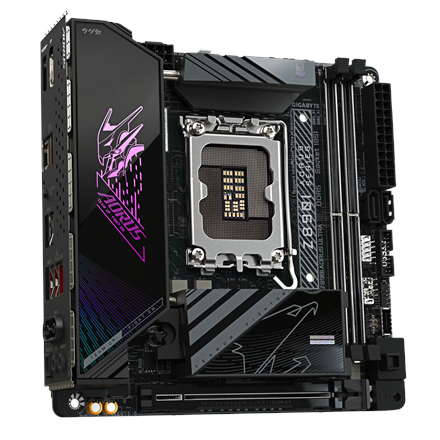

    GIGABYTE Z890I AORUS Ultra: Mini-ITX motherboard with Intel LGA 1851 socket and Z890 chipset

    The GIGABYTE Z890I AORUS Ultra is a Mini-ITX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40Gbit/s. In addition, the GIGABYTE Z890I AORUS Ultra impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

    Designed for demanding gaming

    The GIGABYTE Z890I AORUS Ultra has been specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruptions. Nevertheless, its form factor also fits into smaller cases that require less space on your desk.

    • Form factor:
      Mini-ITX (170 x 170 mm)
    • Chipset:
      Intel Z890
    • Socket:
      LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation)
    • RAM:
      2x DDR5 DIMM (6,400 MHz, up to 8,800 MHz via OC)
      Dual-Channel
      Max. 128 GB
    • Slots (physical):
      1x PCIe 5.0 x16 (electrical x16, CPU)
    • Total maximum usable PCIe lanes: 44
    • Internal connections:
      2x SATA 6G (max.)
      1x M.2 (PCIe 5.0 x4/x2; 2280, CPU)
      1x M.2 (PCIe 4.0 x4/x2; 2280, chipset)
      1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
      2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
      2x USB 2.0 (1 header, max. 480 Mbit/s)
      1x Thunderbolt header
      1x Front Panel Audio header
      1x Front Panel
      1x Noise Detection header
      1x Speaker header
      1x Q-Flash Plus Button
      1x Reset Jumper
      1x Clear CMOS Button
    • Fan headers:
      1x CPU-Fan (4-Pin)
      1x CPU-Fan / Pump (4-Pin)
      1x Case Fan (4-Pin)
    • RGB headers:
      3x 3-Pin ARGB (5 V)

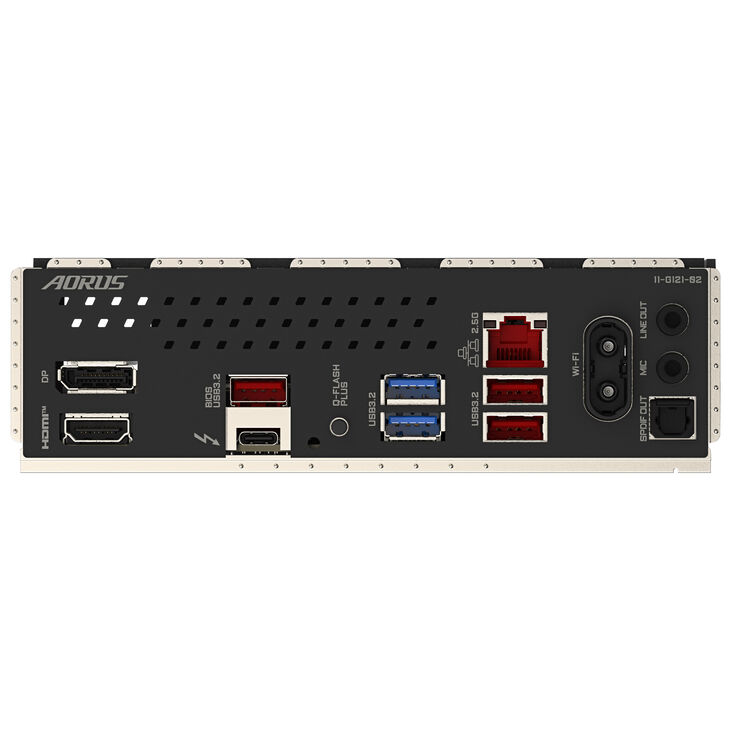

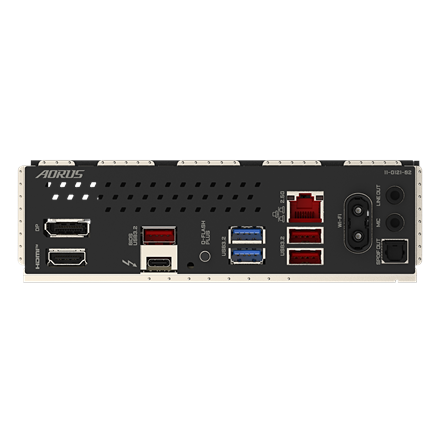

    • External connections:
      1x USB4 (Type C, USB 3.2 Gen 3×2, max. 40 Gbit/s)
      3x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
      2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
      1x HDMI
      1x DisplayPort
      1x 2.5 Gigabit LAN (Intel I219V)
      2x 3.5 mm jack

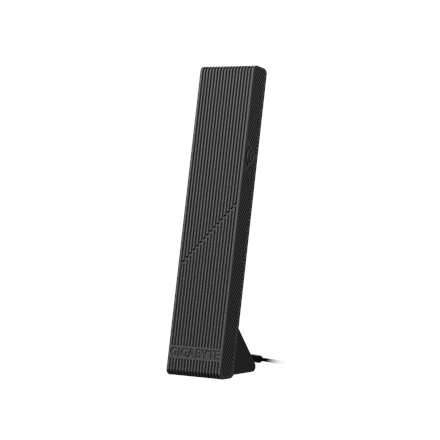

      1x WiFi/Bluetooth module
      1x S/PDIF Audio
    • Power supply:
      1x 24-Pin ATX
      1x 8-Pin +12V CPU
    Colour
    Primary Colour
    Black
    Form Factor
    Motherboard formfactor
    Mini-ITX
    CPU
    CPU Manufacturer
    Intel
    CPU Socket
    1851
    Motherboard
    Motherboard Chipset
    Intel Z890
    Memory
    Max. Memory
    128 GB
    Memory Type
    DDR5
    Memory Form Factor
    DIMM
    Max. Memory Speed (Standard)
    6400 MT/s
    Max. Memory Speed (OC)
    8800 MT/s
    EEC Support
    Yes
    Memory slots
    2x
    Performance Profile
    Intel XMP 3.0
    Wi-Fi & LAN
    LAN
    Yes
    LAN Ports
    1x 2.5 Gbit/s
    Wi-Fi / Bluetooth
    Yes
    Wi-Fi Standard
    Wi-Fi 7
    Bluetooth Standard
    5.4
    Cooling
    M.2 Heatsinks
    Yes
    VRM Heatsinks
    Yes
    Internal Ports
    CPU Power Supply
    1x 8-Pin
    USB 3.0 / 3.1 / 3.2 (internal) Type C Header
    1
    USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
    1
    USB 3.0 (internal) Header
    1
    USB 3.0 (internal) Possible Ports
    2
    USB 2.0 (internal) Header
    1
    USB 2.0 (internal) Possible Ports
    2
    RGB / LED connectors
    2x Digital RGB (3-Pin 5VDG)
    Front Panel Audio Header
    Yes
    SPI TPM Header
    No
    External Ports
    USB4 Gen 2×2 (external) Type C
    1
    USB 3.1 (external) Type A
    3
    USB 3.0 (external) Type A
    2
    Display Connectors
    Display Port (1x), HDMI (1x)
    Storage Ports
    M.2 PCIe 4.0 x4
    1
    M.2 PCIe 5.0 x4
    1
    SATA 6G (internal)
    2
    Back Connect
    Back Connect
    No
    Expansion Slots
    PCIe x16 slots (total)
    1
    Fan Header
    4 Pin Fan Connectors
    3
    Audio
    Soundchip
    Realtek ALC897
    Lighting
    Lighting / RGB
    Yes
