GIGABYTE Z890 UD WiFi6E motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
Prekės kodas: 1680778
Z890 UD WIFI6E
260,19 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
Pranešti kai prekė vėl bus prekyboje
- Aprašymas
- Atsiliepimai (0)
Aprašymas
ATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 3x PCIe 4.0 x16, 1x USB4 / 1x USB 3.1 / 4x USB 3.0 / 4x USB 2.0, 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) / 4x SATA 6G, 6x 4-pin PWM connectors
This motherboard is excellent for your high-end build.
- 1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x16 (x4) and 1x PCIe 4.0 x16 (x1)
- 4x DIMM slots for max. 256GB DDR5 RAM up to 8,800MHz)
- 33x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
- USB on the I/O panel: 1x USB4, 1x USB 3.1, 4x USB 3.0 and 4x USB 2.0
- A total of 6x 4-pin connectors for fans & pumps

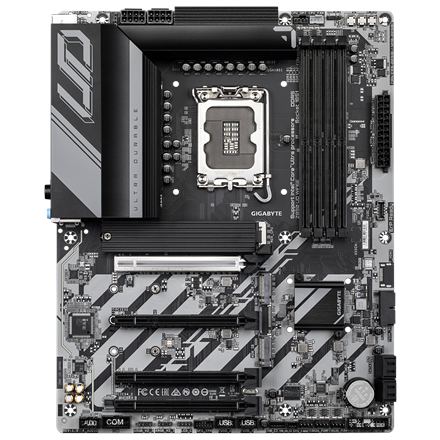

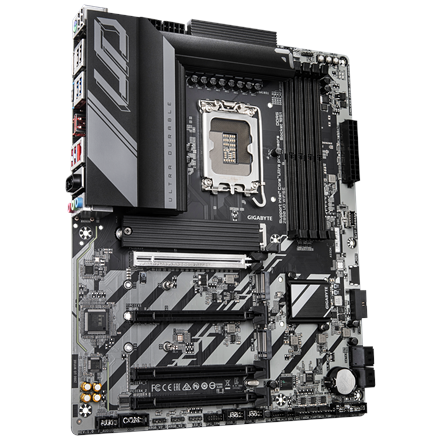

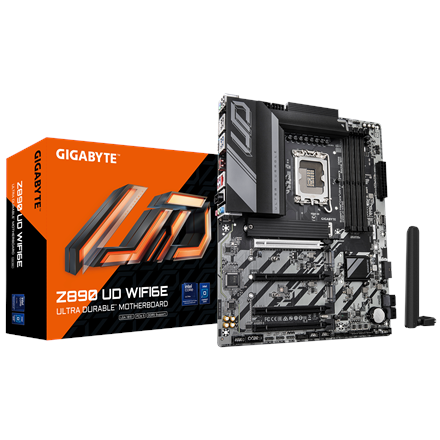

GIGABYTE Z890 UD WiFi6E: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The GIGABYTE Z890 UD WiFi6E is an ATX motherboard with the high-end chipset Intel Z890 and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40 Gbit/s. In addition, the GIGABYTE Z890 UD WiFi6E impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
- Form Factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (6,400 MHz, up to 8,800 MHz via OC)
Dual-Channel
Max. 256 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU)
2x PCIe 4.0 x16 (electrical x4, Chipset)
1x PCIe 4.0 x16 (electrical x1, Chipset) - Total maximum usable PCIe lanes: 44
- Internal connections:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4/x2; 2280 / 2580 / 22110 / 25110, CPU)
1x M.2 (PCIe 4.0 x4/x2; 2280 / 2580 / 22110 / 25110, CPU)
1x M.2 (PCIe 4.0 x4/x2 & SATA; 2280 / 2580 / 22110 / 25110, Chipset)
1x USB-C (1 Header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
2x USB 3.0 (1 Header, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 Header, max. 480 Mbit/s)
2x Thunderbolt Header
1x Front Panel Audio Header
1x Front Panel
1x Serial Port Header
1x Q-Flash Button
1x Power Button
1x Reset Button
1x Reset Jumper
1x Trusted Platform Module Header
1x Clear CMOS Button - Fan headers:
1x CPU-Fan (4-Pin)
1x CPU-Fan / Pump (4-Pin)
2x Case Fans (4-Pin)
2x Case Fans / Pump (4-Pin) - RGB headers:
3x 3-Pin ARGB (5 V)
1x RGB Header - External connections:
1x USB4 (Type C, USB 3.2 Gen 3×2, max. 40 Gbit/s)
1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (Type A, max. 480 Mbit/s)
1x DisplayPort
1x 2.5 Gigabit LAN (Intel I219V)
2x 3.5 mm Jack (Realtek ALC 1220)
1x WiFi/Bluetooth Module (RTL8852CE)
1x S/PDIF Audio - Power Supply:
1x 24-Pin ATX
2x 8-Pin +12V CPU
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
6400 MT/s
|
|
Max. Memory Speed (OC)
|
8000 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Cooling
|
|
|
M.2 Heatsinks
|
No
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3×2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
4
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
