Gigabyte X870 Gaming Motherboard, Sockel AM5, AMD X870, ATX, DDR5

Prekės kodas: 1273106

X870 GAMING WIFI6

0 out of 5
( Atsiliepimų dar nėra. )

265,31 €

LIKUTIS: Turime
2025-10-16
PASITEIRAUTI APIE PREKĘ

    PARAŠYKITE MUMS:

    Aprašymas

    ATX motherboard with X870 chipset, 1x PCIe 5.0 x16 / 2x PCIe 3.0 x16, 2x USB4 / 1x USB 3.1 / 5x USB 3.0 / 12x USB 2.0 / 1x USB-C 3.2, 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) / 4x SATA 6G, 6x 4-pin PWM connectors



    • 1x PCIe 5.0 x16 (x16) and 2x PCIe 3.0 x16 (x1)
    • 4x DIMM slots for up to 192 GB DDR5-RAM at 8000 MHz (OC)
    • 3x M.2 (1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
    • 2x USB4, 1x USB 3.1, 3x USB 3.0, and 4x USB 2.0 on the I/O panel
    • OC features: 20-phase VRMs, BIOS Flashback
    • Total support for 6x 4-pin PWM fans

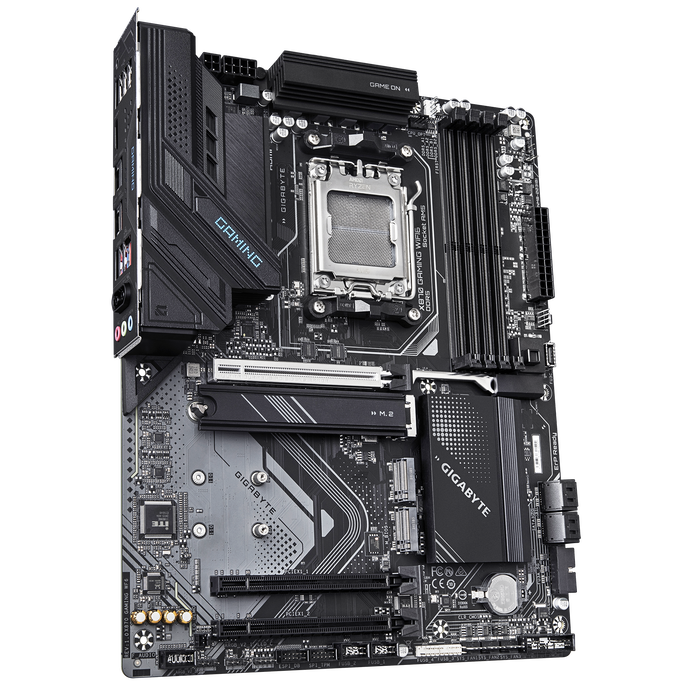

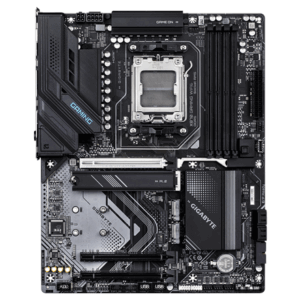

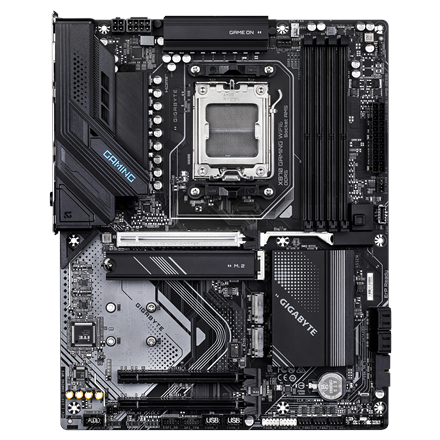

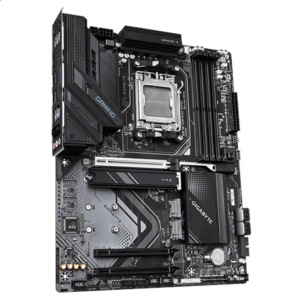

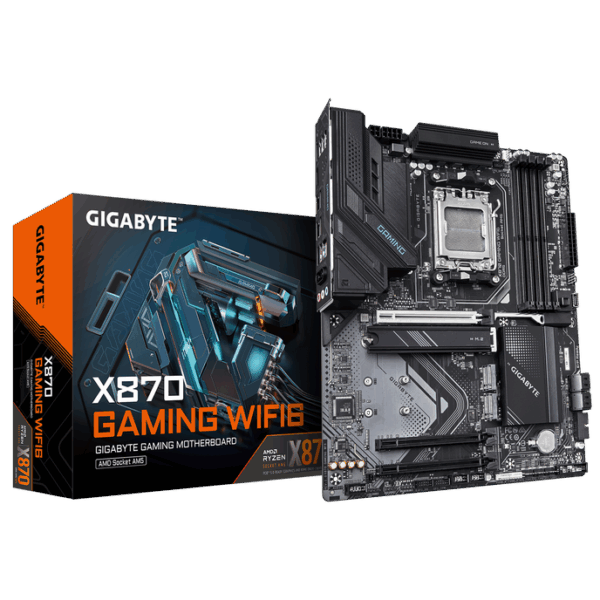

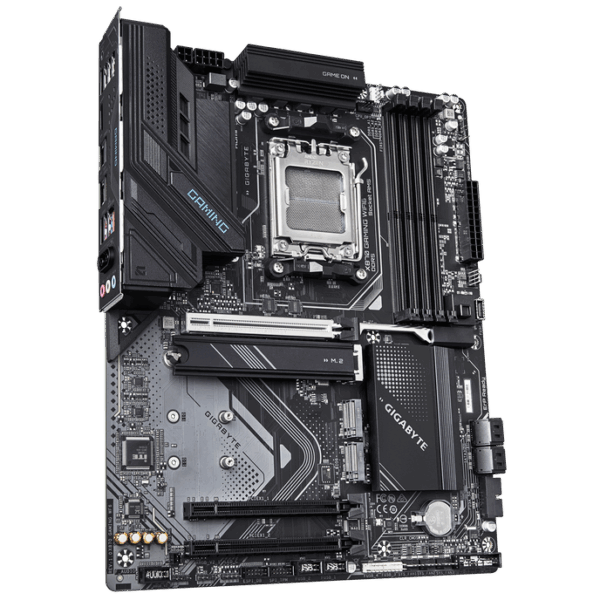

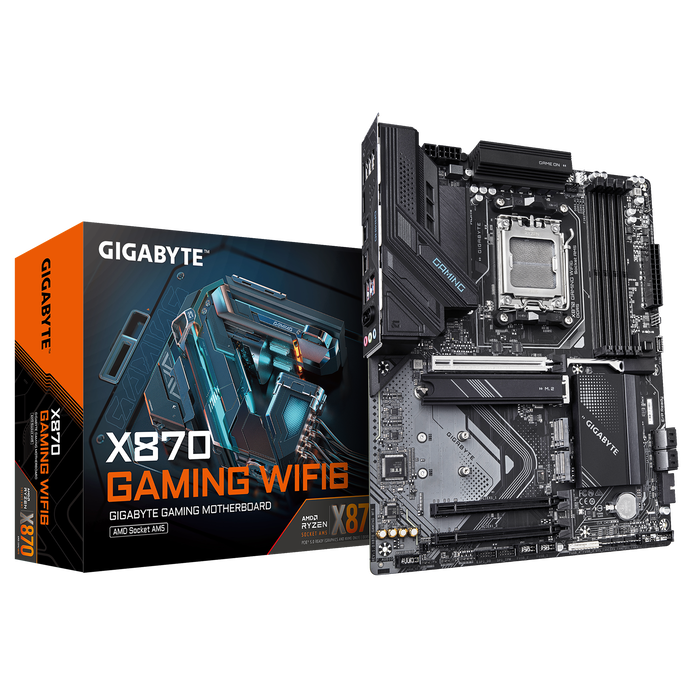

    GIGABYTE X870 GAMING WIFI6: ATX Motherboard with AMD AM5 Socket and X870 Chipset

    The GIGABYTE X870 GAMING WIFI6 is equipped with the mid-tier X870 chipset for AMD’s Ryzen 9000 series processors and comes with numerous features aimed at gamers. The proven AM5 socket (LGA 1718) is also used for the Ryzen 9000 series processors.

    Additionally, the AMD X870 motherboard offers USB 4.0, now available as a standard feature, reaching data transfer rates of up to 40 Gbit/s. Furthermore, the GIGABYTE X870 GAMING WIFI6 supports PCIe 5.0, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

    Optimised for Gaming

    The GIGABYTE X870 GAMING WIFI6 is designed for high-end gaming, allowing you to enjoy even the most demanding games smoothly. The high-quality voltage regulators offer stable power delivery to the CPU, ensuring its high clock rates can be sustained over longer periods. Additional features like BIOS Flashback allow you to restore your PC in case of issues, and, as expected, the DDR5-RAM can also be pushed to higher clock speeds.

    • Format:
      ATX (305 x 244 mm)
    • Chipset:
      AMD X870 (Single Promontory 21)
    • Socket:
      AM5 (LGA 1718)
    • RAM:
      4x DDR5 DIMM (up to 8000 MHz via OC)
      Dual-Channel
      Max. 192 GB
    • Slots (physical):
      1x PCIe 5.0 x16 (electrical x16, CPU)
      2x PCIe 3.0 x16 (electrical x1, Chipset)
    • Internal Connectors:
      Total usable PCIe lanes: 36 (24 CPU and 12 PCIe)
      4x SATA 6G (max.)
      1x M.2 (PCIe 5.0 x4; 2280 / 2580 / 22110 / 25110, CPU)
      1x M.2 (PCIe 4.0 x2; 2280 / 2580 / 22110 / 25110, Chipset)
      1x M.2 (PCIe 4.0 x4; 2280 / 2580 / 22110 / 25110, Chipset)
      1x USB-C (1 Header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
      2x USB 3.0 (1 Header, USB 3.2 Gen 1, max. 5 Gbit/s)
      8x USB 2.0 (4 Header, max. 480 Mbit/s)
      1x Front Panel Audio Connector
      1x WiFi/Bluetooth Module
      1x Start Button
      1x Reset Button
    • Fan Connectors:
      1x CPU-Fan Header (4-Pin)
      1x CPU-Fan/Pump Header (4-Pin)
      4x Fan Header (4-Pin)
    • RGB Headers:
      2x 3-Pin ARGB Header (5 V)
      1x 4-Pin RGB Header (12 V)

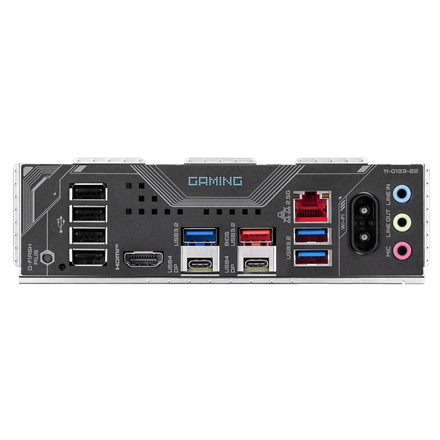

    • External Ports:
      2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s with DisplayPort)
      1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
      3x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
      4x USB 2.0 (Type A, max. 480 Mbit/s)
      1x HDMI 2.1
      1x 2.5 Gigabit LAN (Realtek)
      3x 3.5 mm Jack (Realtek ALC1220)
      2x Antenna Connection RP-SMA Quick Connect
      1x Reset
      1x BIOS Flashback
    • Power Supply:
      1x 24-Pin ATX
      2x 8-Pin 12V
    Colour
    Primary Colour
    Black
    Form Factor
    Motherboard formfactor
    ATX
    CPU
    CPU Manufacturer
    AMD
    CPU Socket
    AM5
    Motherboard
    Motherboard Chipset
    AMD X870
    Dual BIOS
    No
    Built-In I/O Shield
    Yes
    Memory
    Max. Memory
    256 GB
    Memory Type
    DDR5
    Memory Form Factor
    DIMM
    Max. Memory Speed (OC)
    8000 MT/s
    EEC Support
    No
    Memory slots
    4x
    Performance Profile
    AMD EXPO
    Wi-Fi & LAN
    LAN
    Yes
    LAN Ports
    1x 2.5 Gbit/s
    Wi-Fi / Bluetooth
    Yes
    Bluetooth Standard
    5.3
    Cooling
    Backplate
    Yes
    M.2 Heatsinks
    Yes
    VRM Heatsinks
    Yes
    Water Cooling
    Watercooling
    No
    Internal Ports
    CPU Power Supply
    1x 4-Pin + 1x 8-Pin
    USB 3.0 / 3.1 / 3.2 (internal) Type C Header
    1
    USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
    1
    USB 3.0 (internal) Header
    1
    USB 3.0 (internal) Possible Ports
    2
    USB 2.0 (internal) Header
    4
    USB 2.0 (internal) Possible Ports
    8
    RGB / LED connectors
    1x RGB (4-Pin 5050 12VGRB), 2x Digital RGB (3-Pin 5VDG)
    Front Panel Audio Header
    Yes
    SPI TPM Header
    No
    External Ports
    USB4 Gen 3×2 (external) Type C
    2
    USB 3.1 (external) Type A
    1
    USB 3.0 (external) Type A
    3
    USB 2.0 (external) Type A
    4
    Display Connectors
    HDMI (1x)
    Storage Ports
    M.2 PCIe 4.0 x2
    1
    M.2 PCIe 4.0 x4
    1
    M.2 PCIe 5.0 x4
    1
    SATA 6G (internal)
    4
    Back Connect
    Back Connect
    No
    Expansion Slots
    PCIe x16 slots (total)
    3
    PCIe 5.0 x16 mechanical slot
    1
    PCIe 3.0 x16 mechanical slot
    2
    Fan Header
    4 Pin Fan Connectors
    6
    Lighting
    Lighting / RGB
    Yes
    Lighting Compatibility
    GIGABYTE RGB Fusion
