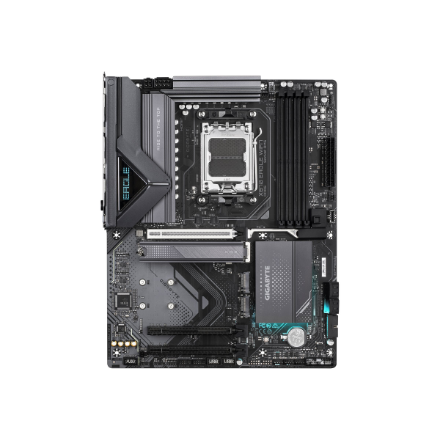

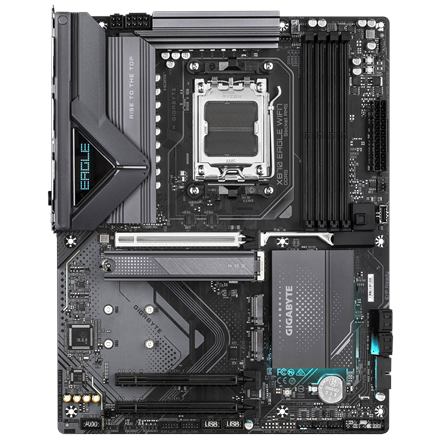

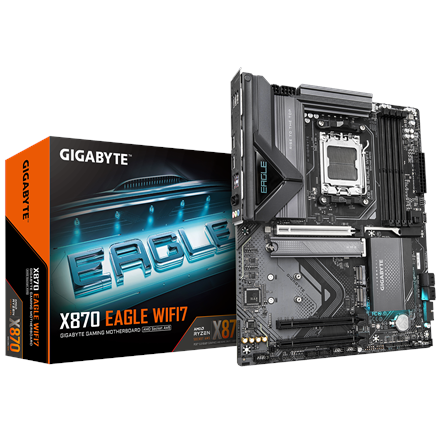

Gigabyte X870 Eagle WiFi7 motherboard, Socket AM5, AMD X870, ATX, DDR5
Prekės kodas: 1680977
X870 EAGLE WIFI7
301,82 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
Pranešti kai prekė vėl bus prekyboje
- Aprašymas
- Atsiliepimai (0)
Aprašymas
ATX motherboard with X870 chipset, 1x PCIe 5.0 x16 / 2x PCIe 3.0 x1, 2x USB4, 1x USB-C 3.2 Gen 2×2 / 1x USB 3.1 / 3x USB 3.0 / 4x USB 2.0, 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) / 4x SATA 6G, 5x 4-Pin PWM connectors
- 1x PCIe 5.0 x16 and 1x PCIe 3.0 x1
- 4x DIMM slots for max. TBA GB DDR5 RAM up to TBA MHz (OC)
- 3x M.2 (1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
- 2x USB4, 3x USB 3.1, 3x USB 3.0, and 4x USB 2.0 on the I/O panel
- OC features: 14+2+2 phase VRMs
- Total of 5x 4-Pin PWM fan connectors
Gigabyte X870 Eagle WiFi7: ATX Motherboard with AMD AM5 Socket and X870 Chipset
The Gigabyte X870 Eagle WiFi7 features the mid-tier X870 chipset for AMD’s Ryzen 9000 series processors and comes with numerous features for gamers and content creators. The Ryzen 9000 series also utilizes the proven AM5 socket (LGA 1718).
Additionally, the AMD X870 motherboard offers USB 4.0, now standard, providing data transfer rates of up to 40 Gbps. The Gigabyte X870 Eagle WiFi7 also supports PCIe 5.0, offering double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Ready for Gaming
The Gigabyte X870 Eagle WiFi7 is geared toward high-end gaming, ensuring smooth performance even in demanding games. The high-quality VRMs provide stable power delivery to the CPU, maintaining high clock speeds over extended periods.
- Form Factor:
ATX (305 x 244 mm) - Chipset:
AMD X870 (Single Promontory 21) - Socket:
AM5 (LGA 1718) - RAM:
4x DDR5 DIMM (TBA MHz, validated up to TBA MHz via OC)
Dual-Channel
Max. TBA GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16 CPU)
2x PCIe 3.0 x16 (electrical x1) - Internal Connectors:
Total PCIe lanes: 36 (24 CPU and 12 PCIe)
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4)
2x M.2 (PCIe 4.0 x4)
1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbps)
1x System Panel Header
1x Front Panel Audio Connector
1x Start Button
1x Reset Button - Fan Connectors:
1x CPU Fan Header (4-Pin)
4x Fan Headers (4-Pin) - RGB Headers:
3x 3-Pin ARGB Headers (5V)
1x 4-Pin RGB Header (12V) - External Connectors:

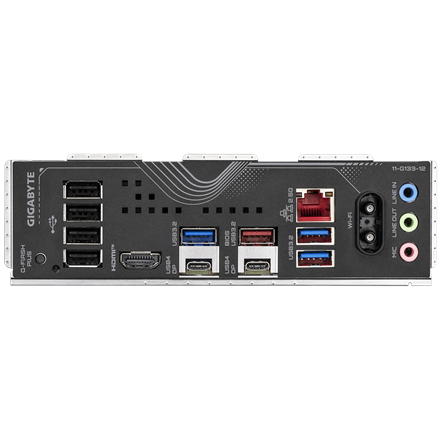

2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbps)
1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbps)
3x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbps)
4x USB 2.0 (Type A, max. 480 Mbps)
1x DisplayPort 1.4
1x HDMI 2.1
1x 2.5 Gigabit LAN
1x WiFi 7/Bluetooth Module
5x 3.5 mm Audio Jacks and 1x S/PDIF Audio - Power Supply:
1x 24-Pin ATX
2x 8-Pin 12V
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD X870
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x (in total)
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Cooling
|
|
|
Backplate
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
External Ports
|
|
|
USB4 Gen 3×2 (external) Type C
|
2
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
3
|
|
USB 2.0 (external) Type A
|
4
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 5.0 x4
|
1
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
5
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
