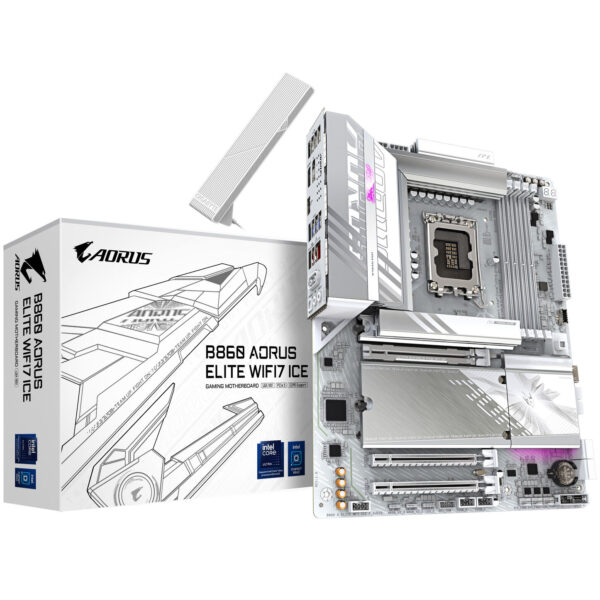

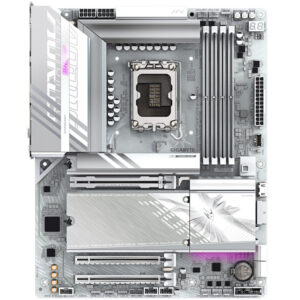

Gigabyte B860 Aorus Elite WiFi7 ICE motherboard, socket LGA 1851, Intel B860, ATX, DDR5

• Slots: 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x1
• RAM: 4x DIMM slots for a maximum of 256 GB DDR5 RAM up to 9,200 MT/s
• Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
• USB: 1x USB-C 4.0, 2x USB-C 3.1, 4x USB 3.0 and 4x USB 2.0
• Cooling: 6x 4-pin PWM connectors for fans and radiators
• Connectivity: Wi-Fi 7 and Bluetooth 5.4

Gigabyte B860 Aorus Elite WiFi7 ICE: ATX motherboard with Intel LGA 1851 socket and B860 chipset

The B860 Aorus Elite WiFi7 ICE is an ATX motherboard featuring the mid-range Intel B860 chipset and the Intel LGA 1851 socket. It supports Intel processors from the Arrow Lake generation and is suitable for gamers/content creators who can forgo CPU overclocking.

Additionally, the B860 motherboards support USB4, achieving very high data transfer rates of up to 40 GBit/s. The B860 Aorus Elite WiFi7 ICE also offers PCIe 5.0 for graphics cards and M.2 SSDs. The DDR5 RAM can be overclocked, allowing you to get the most out of your RAM.

The voltage regulators with 14 virtual phases provide stable power to the CPU, ensuring high clock rates can be maintained over extended periods. Features such as EZ-Latch Plus and a Sensor Panel Link are included, enabling you to easily swap M.2 SSDs and connect sensor panels directly to the motherboard.
