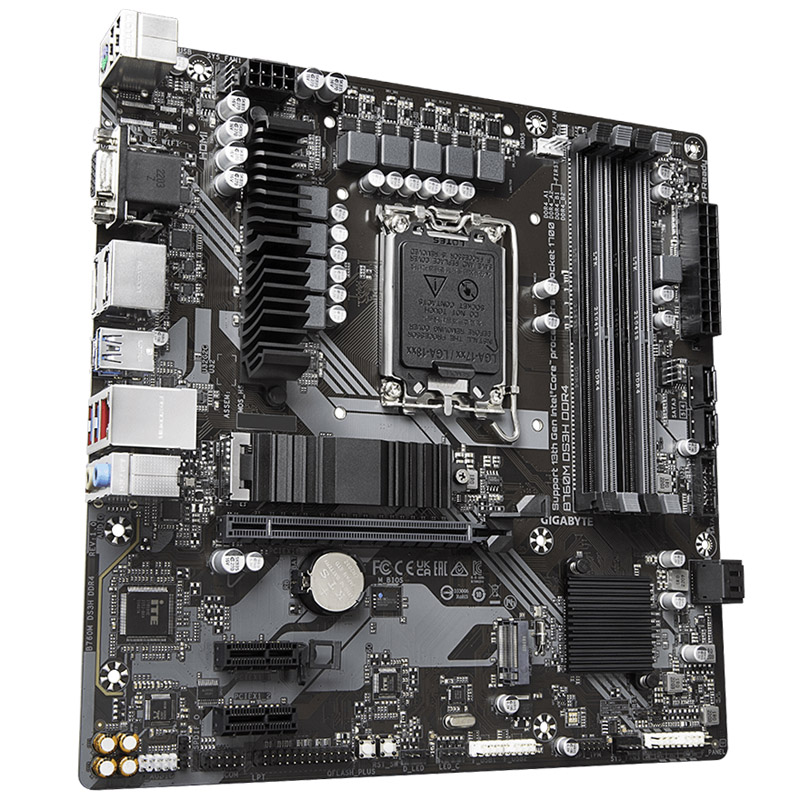

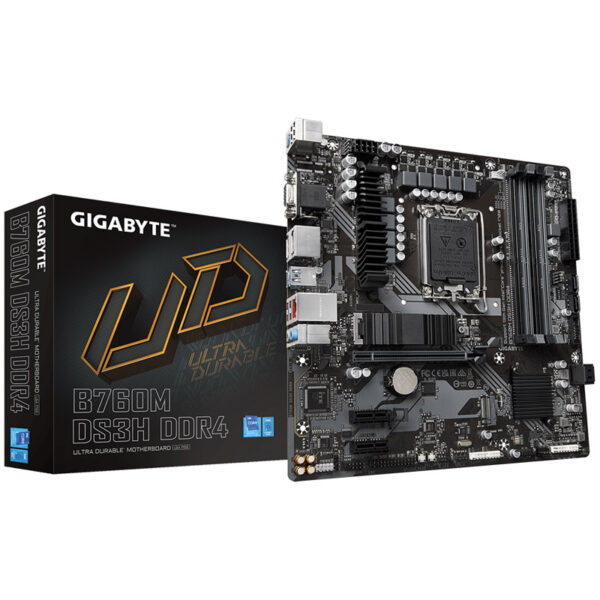

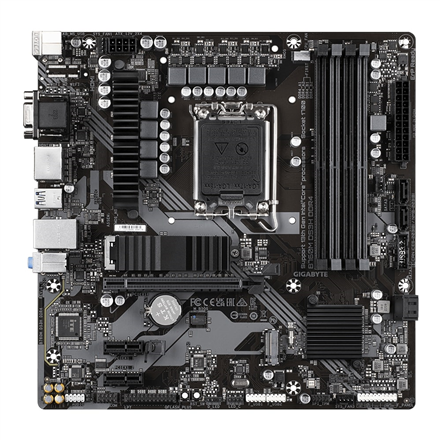

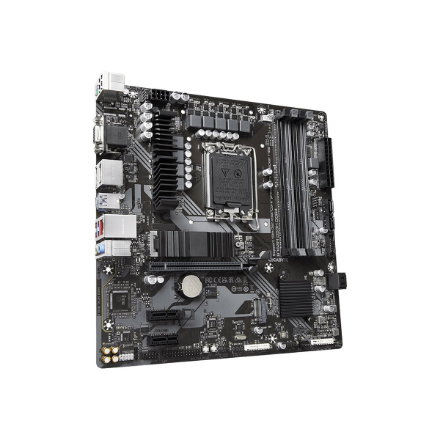

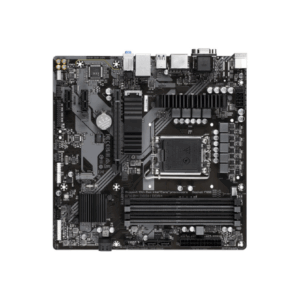

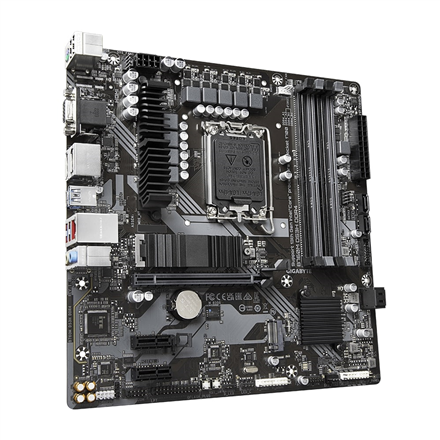

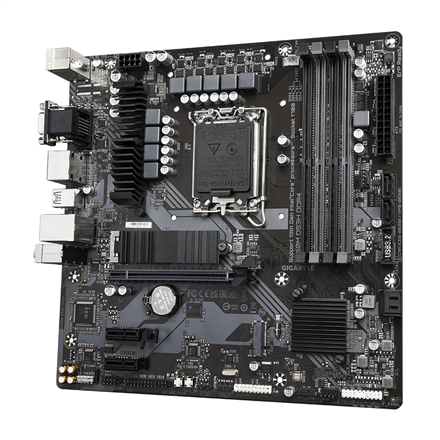

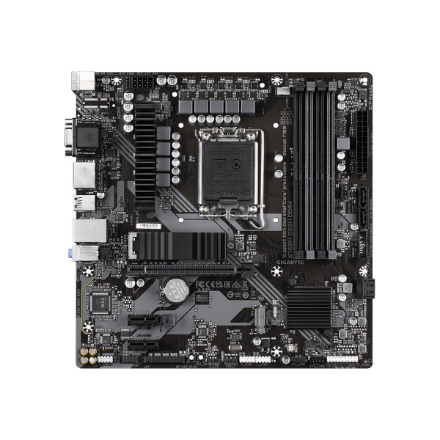

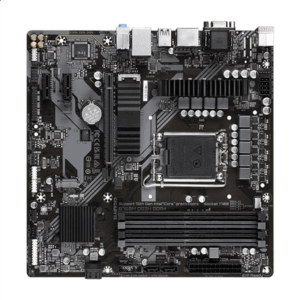

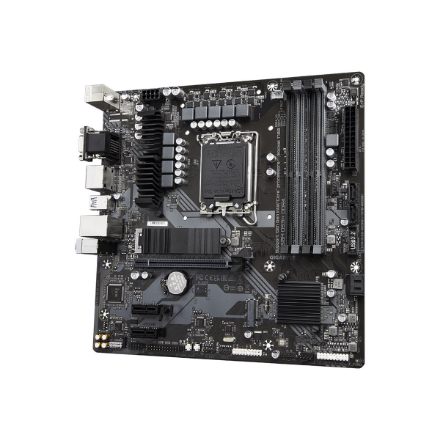

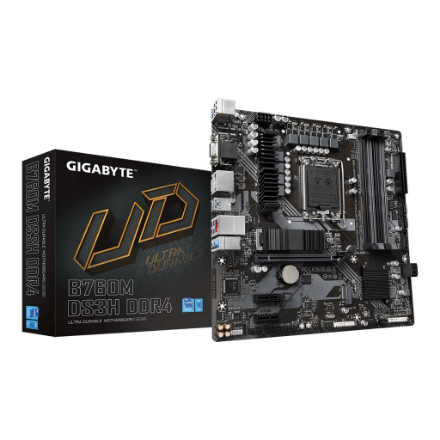

GIGABYTE B760M DS3H DDR4, Intel B760 pagrindinė plokštė – Sockel 1700, DDR4
Prekės kodas: 1246179
B760M DS3H DDR4
101,22 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard：To Ensure M.2 SSD Performance
- EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：Rear USB-C 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Colour | |
Primary Colour | Black |
Secondary Colour | Grey, Silver |
Dimensions | |
Length / Depth | 24.4 cm |
Width | 24.4 cm |
Form Factor | |
Motherboard formfactor | Micro-ATX |
CPU | |
CPU Manufacturer | Intel |
CPU Socket | 1700 |
Motherboard | |
Motherboard Chipset | Intel B760 |
Memory | |
Max. Memory | 128 GB |
Memory Type | DDR4 |
Memory slots | 4x |
Wi-Fi & LAN | |
LAN Ports | 1x 2.5 Gbit/s |
Wi-Fi / Bluetooth | No |
Internal Ports | |
CPU Power Supply | 1x 8-Pin |
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
USB 3.0 (internal) Possible Ports | 2 |
USB 2.0 (internal) Possible Ports | 2 |
RGB / LED connectors | 1x Digital RGB (3-Pin 5VDG), 1x RGB (4-Pin 5050 12VGRB) |

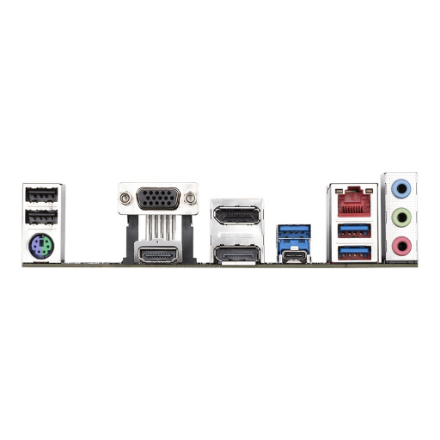

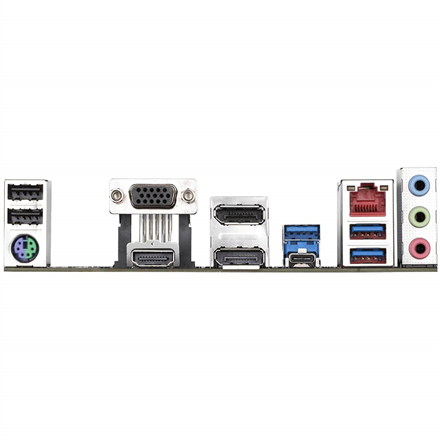

External Ports | |
USB 3.2 (external) Type C | 4 |
USB 3.1 (external) Type C | 1 |
USB 3.0 (external) Type A | 3 |
USB 2.0 (external) Type A | 2 |
Display Connectors | Display Port (2x), HDMI (1x), VGA (D-Sub) (1x) |
Storage Ports | |
M.2 PCIe 4.0 x4 | 2 |
SATA 6G (internal) | 4 |
Expansion Slots | |
PCIe x16 slots (total) | 1 |
PCIe x1 slots (total) | 2 |
PCIe 4.0 x16 mechanical slot | 1 |
PCIe 3.0 x1 mechanical slot | 2 |
Fan Header | |
4 Pin Fan Connectors | 4 |
Lighting | |
Lighting / RGB | Yes |
Lighting Colour | RGB |
