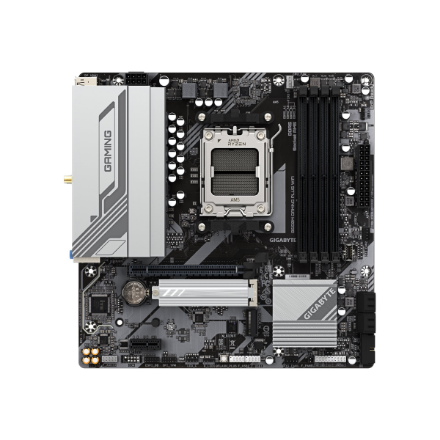

GIGABYTE B650M Gaming Plus WiFi Motherboard, Socket AM5, AMD B650, Micro-ATX, DDR5
B650M GAMING PLUS WIFI
136,83 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-18*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Micro-ATX motherboard with B650 chipset, with AMD AM5 socket, PCIe 4.0 for graphics cards, suitable for DDR5 RAM, 2x M.2 PCIe slots, 2.5 Gbit LAN & WiFi 6E
- 1x PCIe 4.0 x16 (x16), 1x PCIe 3.0 x1 (x1)
- Supports max. 256 GB DDR5 RAM up to 8,000 MHz (OC)
- 1x M.2 PCIe 4.0 (Type 2580), 1x M.2 PCIe 4.0 (Type 2280/110) / 4x SATA 6G
- 1x USB-C 3.0, 3x USB-A 3.0, 2x USB-A 2.0 on the I/O panel
- OC features: 5+2+2 phase VRMs, BIOS Flashback, Clear CMOS
- A total of 3x 4-pin PWM fans possible
GIGABYTE B650M Gaming Plus WiFi: Micro-ATX Motherboard with WiFi 6E
The GIGABYTE B650M Gaming Plus WiFi is equipped with the B650 chipset for AMD’s Ryzen processors of the 7000 series and comes with numerous features for gamers. Since the Ryzen 7000 processors require a new socket due to support for PCIe 5.0 and enhanced power delivery, the Socket AM5 (LGA 1718) is used on the 600 series motherboards.
Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most CPU coolers for Socket AM4 to be mounted on the motherboard.
Stable Power Supply
The GIGABYTE B650M Gaming Plus WiFi offers a power supply with 5+2+2 phases. This makes the motherboard suitable for use with high-performance Ryzen CPUs. Large heatsinks, such as those on the M.2 slot, ensure safe operation and cooling of critical components. Thanks to Q-Flash Plus, the BIOS can be conveniently updated via USB stick and reset at the push of a button with the Clear CMOS button.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver, White
|
|
Dimensions
|
|
|
Length / Depth
|
244 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B650
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
No
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
5200 MT/s
|
|
Max. Memory Speed (OC)
|
8000 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO, Intel XMP
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x (in total)
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 6E
|
|
Bluetooth Standard
|
5.3
|
|
Wi-Fi Chip
|
Realtek RTL8852CE
|
|
Cooling
|
|
|
Backplate
|
No
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 2x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB 3.0 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
3
|
|
USB 2.0 (external) Type A
|
2
|
|
Display Connectors
|
Display Port (2x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
GIGABYTE RGB Fusion
|
