GIGABYTE A620M Gaming X, AMD A620 pagrindinė plokštė, Sockel AM5, DDR5
Prekės kodas: 1234966
A620M GAMING X
137,15 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1
- Supports max. 192 GB DDR5 RAM up to 6,400 MHz (OC)
- 1x M.2 PCIe 4.0 / 4x SATA 6G
- 1x USB-A 3.1, 1x USB-C 3.0, 2x USB-A 3.0 and 2x USB 2.0 on the I/O panel
- A total of 3x 4-pin PWM fans possible

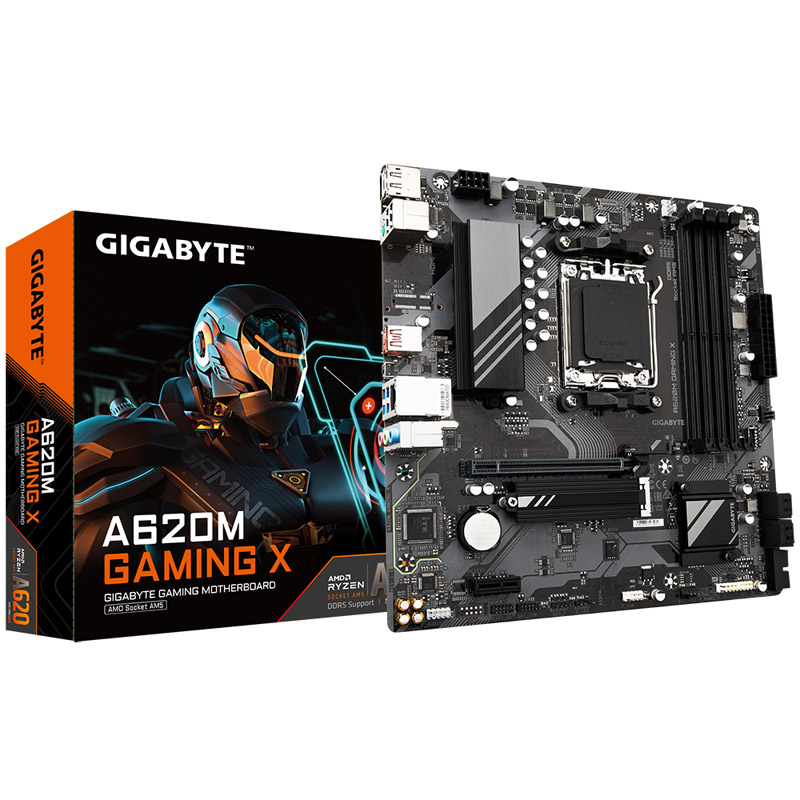

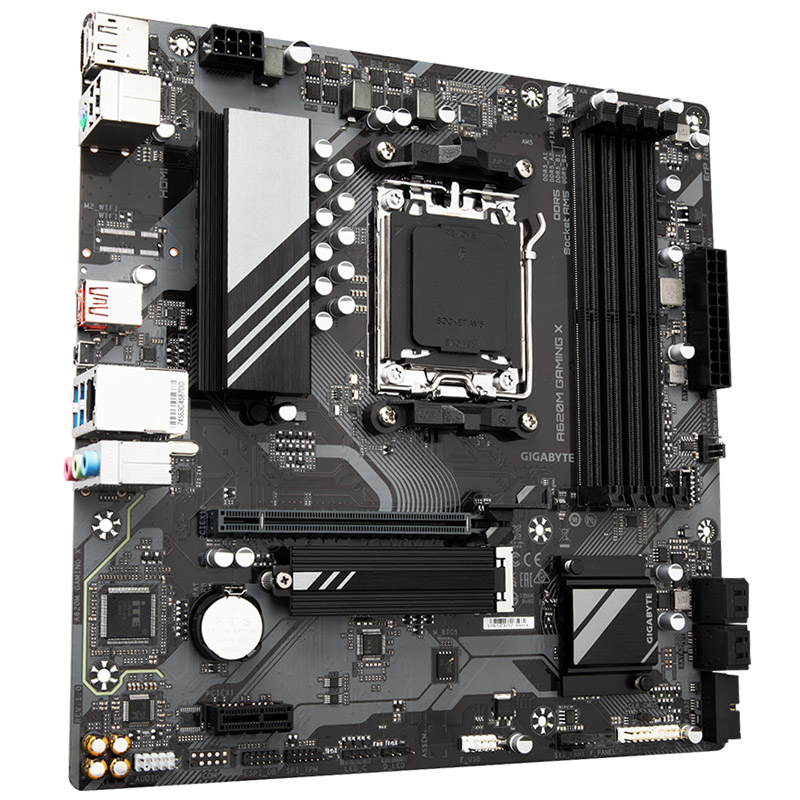

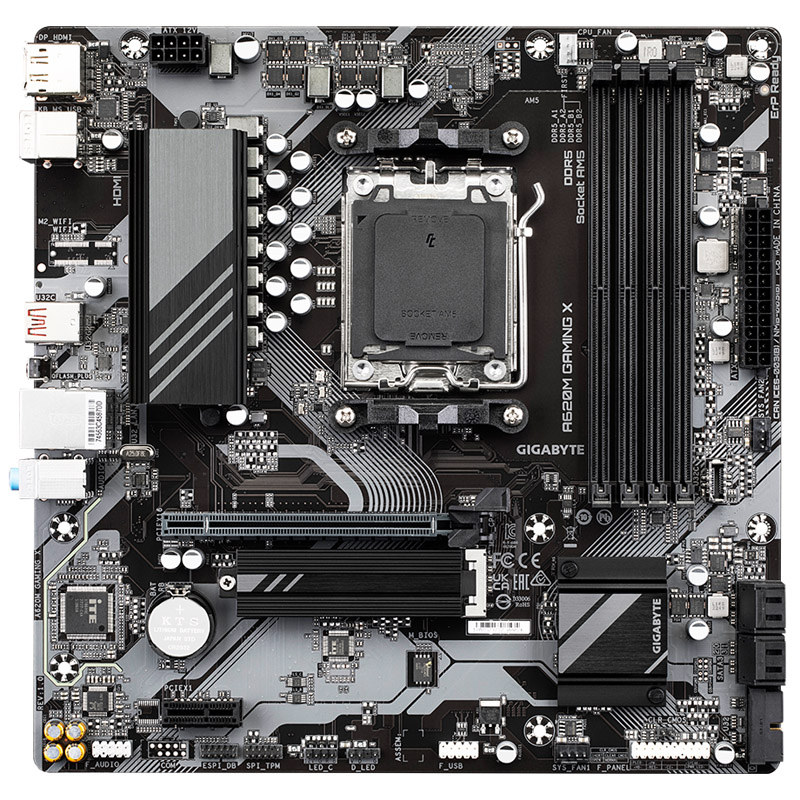

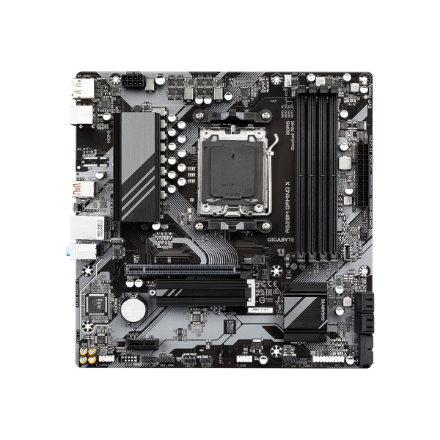

Gigabyte A620M Gaming X: Micro-ATX motherboard with AMD AM5
The Gigabyte A620M Gaming X is equipped with the A620 chipset for AMD’s Ryzen 7000 series processors and comes with numerous features for gamers. As the Ryzen 7000 processors require a new socket due to support for PCIe 5.0 and enhanced power supply, the AM5 socket (LGA 1718) is used on the 600 series motherboards.
Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most CPU coolers for AM4 sockets to be mounted on the motherboard.
Compatible only with AMD Ryzen 7000 series CPUs!
BIOS updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed at the time of a motherboard’s delivery. Updates may also bring fixes and optimisations.
Our King Mod service is happy to perform a BIOS update to the latest version in advance:
Please note that this may delay shipping preparation by 1 to 4 working days!
Colour | |
Primary Colour | Black |
Secondary Colour | Grey, Silver |
Form Factor | |
Motherboard formfactor | Micro-ATX |
CPU | |
CPU Manufacturer | Intel |
CPU Socket | AM5 |
Motherboard | |
Motherboard Chipset | AMD A620 |
Memory | |
Max. Memory | 192 GB |
Memory Type | DDR5 |
Memory Form Factor | DIMM |
Memory slots | 4x |
Wi-Fi & LAN | |
LAN | Yes |
LAN Ports | 1x 1 Gbit/s |
Wi-Fi / Bluetooth | No |
Internal Ports | |
CPU Power Supply | 1x 8-Pin |
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
USB 3.0 (internal) Possible Ports | 2 |
RGB / LED connectors | 1x Digital RGB (3-Pin 5VDG), 1x RGB (4-Pin 5050 12VGRB) |
External Ports | |
USB 3.1 (external) Type A | 1 |
USB 3.0 (external) Type C | 1 |
USB 3.0 (external) Type A | 2 |
Display Connectors | Display Port (1x), HDMI (1x) |
Storage Ports | |
M.2 PCIe 4.0 x4 | 1 |
SATA 6G (internal) | 4 |
Expansion Slots | |
PCIe x16 slots (total) | 1 |
PCIe x1 slots (total) | 1 |
PCIe 4.0 x16 mechanical slot | 1 |
PCIe 3.0 x1 mechanical slot | 1 |
Fan Header | |
4 Pin Fan Connectors | 3 |
Lighting | |
Lighting / RGB | No |
