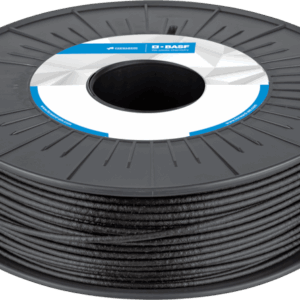

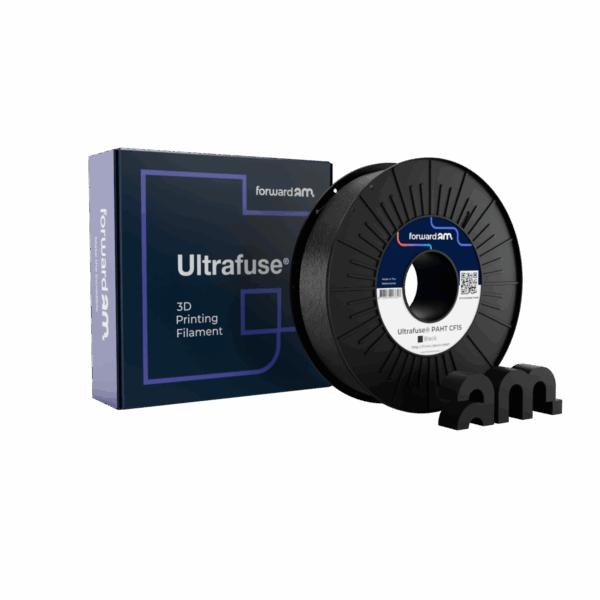

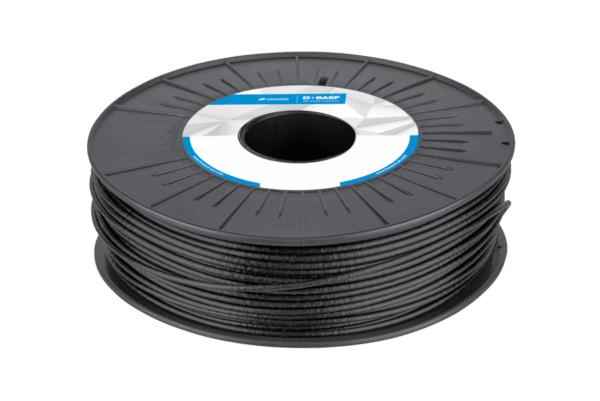

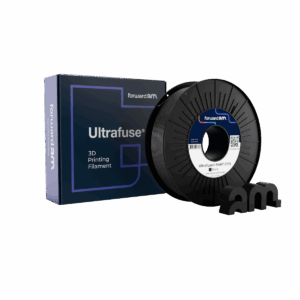

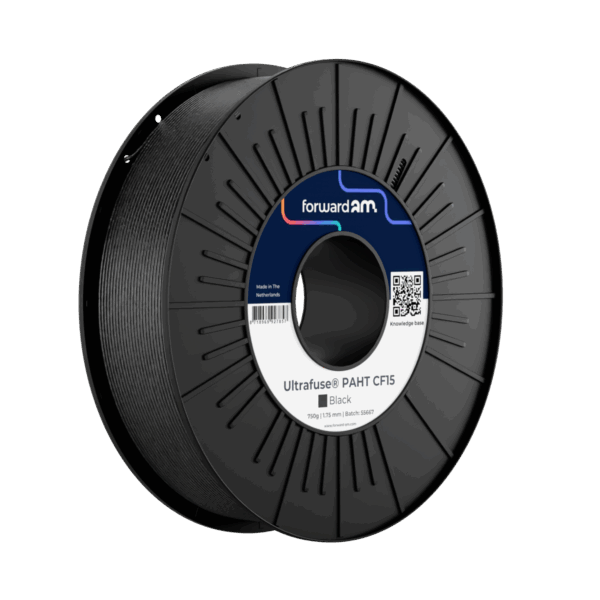

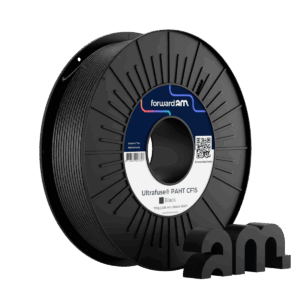

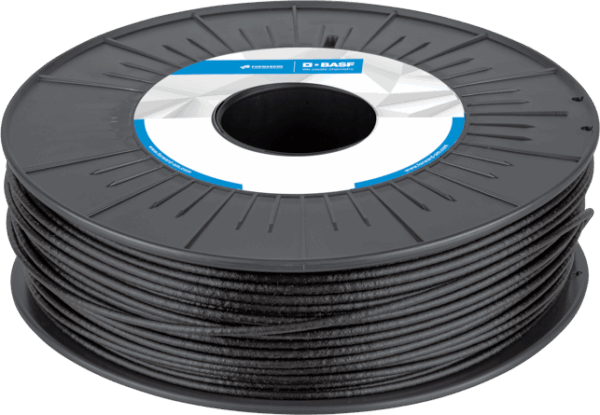

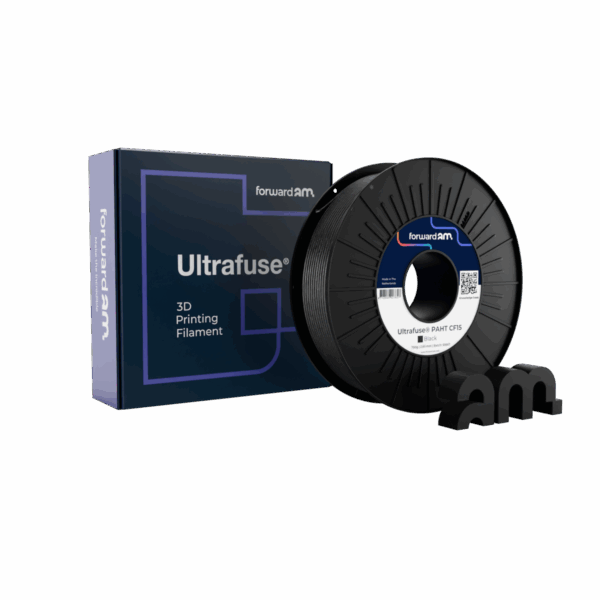

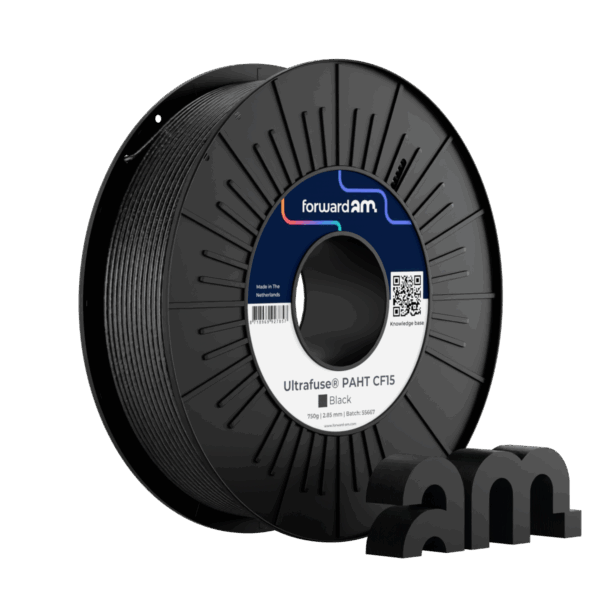

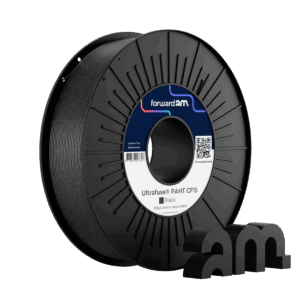

Forward AM Ultrafuse PAHT CF15, 2.85mm, 750g, Black

Aprašymas

Ultrafuse PAHT CF15 is a high-performance 3D printing filament that opens new application fields in FFF printing. In parallel to its advanced mechanical properties, dimensional stability, and chemical resistance, it has very good processability. It works in any FFF printer with a hardened nozzle.

Highlights:

• Higher chemical resistance than most PA grades
• High temperature resistance up to 150°C
• Strong and stiff parts
• High dimensional stability
• Easy to process
• Low moisture absorption

Ultrafuse PAHT CF-15

Ultrafuse PAHT CF15 is a high-performance 3D printing filament that opens new application fields in FFF printing. In parallel to its advanced mechanical properties, dimensional stability, and chemical resistance, it has very good processability. It works in any FFF printer with a hardened nozzle. In addition to that, Ultrafuse PAHT CF15 is compatible with BVOH, water-soluble support material and HIPS, which allow printing complex geometries that work in challenging environments.

Tips & Tricks

• Print Temp: 260-280°C
• Print Speed: 30-80mm/s
• Bed Temp: 100-120°C
• Adhesion: PEI or Glass
• Nozzle: Hardened/ Ruby Nozzle | 0,6mm diameter
• ≥ 0,2mm

Material Properties

• Tensile Strength (MPa): 18.2 (ZX), 103.2 (XY)
• Flexural Modulus (MPa): 2715 (ZX), 7669 (XZ), 8258 (XY)
• Elongation at Break: 0.5 % (ZX), 1.8 % (XY)
• Impact Strength Izod notched (kJ/m2): 5.1 (XZ), 4.9 (XY)
• Impact Strength Izod unnotched (kJ/m2): 2.9 (ZX), 18.1 (XZ), 16.4 (XY)
• HDT at 0.45 MPa: 145 oC

BASF Quality Control

The best raw materials available is selected from renowned suppliers. Production on state-of-the-art computer-controlled machinery guarantees a truly consistent filament, also between colors and batches. It will perform as expected every time.

All BASF products are 100% traceable to the source.
