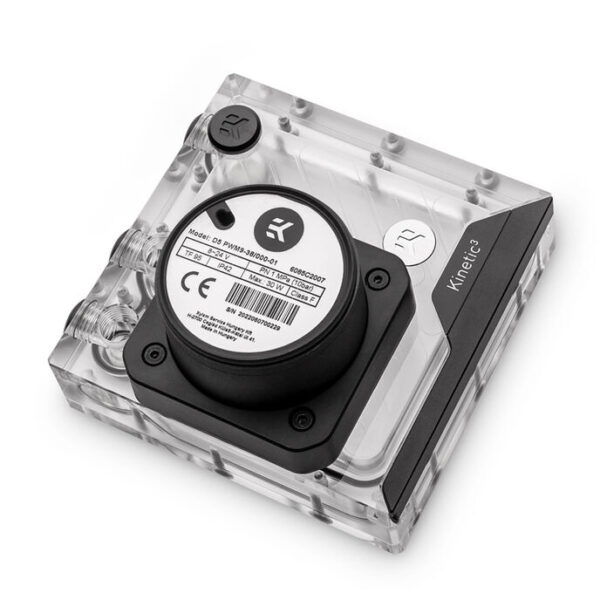

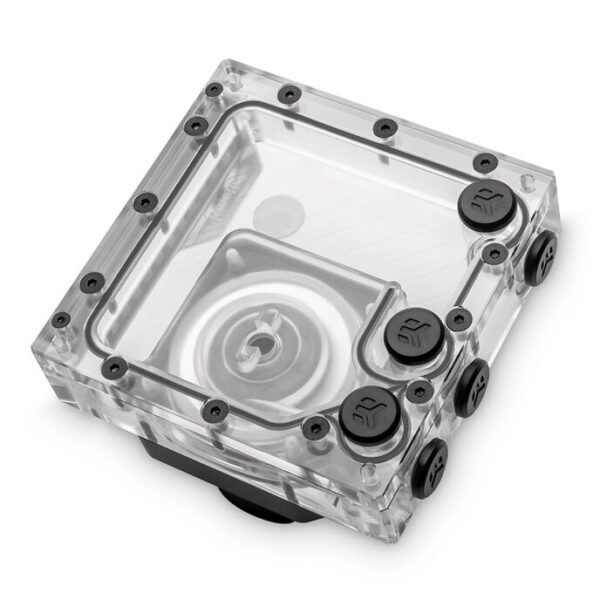

EK Water Blocks EK-Quantum Kinetic3 FLT D5 PWM Reservoir-Pump Combo – 120mm, D-RGB, Acrylic
3831109880715
229,45 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-05-04*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
120-mm reservoir-pump combo with D-RGB lighting, featuring a D5 PWM pump, 125 ml volume, nine G1/4-inch fittings, made from acrylic glass and stainless steel, includes mounting for 120-mm fan
- 125-ml pump-reservoir combo for compact systems
- Easy maintenance and flexibility thanks to nine G1/4-inch fittings
- High-quality acrylic glass for clear visibility of your coolant
- D-RGB lighting for customisable lighting effects
- Integrated D5 PWM pump for maximum cooling performance
- Durable EPDM O-rings for maximum reliability
- Easy installation thanks to 120-mm fan mounting holes
The EK-Quantum Kinetic3 FLT D5 PWM D-RGB Reservoir-Pump Combo in Detail
The EK-Quantum Kinetic3 FLT D5 PWM D-RGB is distinguished by its integrated D5 PWM pump and high-quality construction. With a maximum flow rate of 1.000 l/h and a maximum head pressure of 5.2 m, the pump delivers substantial power, ensuring that your system remains adequately cooled.
The reservoir is made from transparent acrylic glass, offering excellent visibility of your coolant. The integrated addressable D-RGB lighting, concealed behind a black anodised aluminium cover, provides even illumination.
With a volume of 125 ml and a sufficiently large cooling area, this reservoir-pump combo provides ample coolant for small and compact systems that require efficient cooling. Sealing is achieved with high-quality EPDM O-rings, ensuring a durable and reliable seal.
Easy Installation and Strong Flexibility
You mount the EK-Quantum Kinetic3 FLT D5 PWM D-RGB on 120-mm fan mounts, making it an ideal fit for your gaming PC. No additional drilling is required, saving you time and effort. With nine G1/4-inch fittings, it offers versatile inlets and outlets and can be flexibly integrated into your system.
Enhance Your System with Light and Colours
Achieve a personalised look with a variety of visual effects. Thanks to the addressable, integrated D-RGB lighting, you can beautifully showcase your PC. This connects via a 3-pin 5V Digital-RGB header. Your creativity knows no bounds.
- Dimensions: 123.3 x 126.4 x 86 mm (W x H x D)
- Material: Acrylic, EPDM rubber, anodised aluminium, stainless steel, PPS-GF40, aluminium oxide
- Colour: Transparent, Black (anodised aluminium cover)
- Volume: 125 ml
- Fittings: 9x G1/4-inch threads
- D-RGB Connection: 3-pin digital 5V LED header (+5V / Digital / Blocked / Ground)
- Number of LEDs: 11
- Pump: Integrated D5 PWM pump
Rated Voltage: 12 V DC
Power Consumption: 20 W
Max Head Pressure: 5.2 m
Max Flow Rate: 1.000 l/h
Max System Temperature: 60°C
Power Connection: SATA power and 4-pin PWM fan connector - Contents:
1x EK-Quantum Kinetic3 FLT D5 PWM D-RGB
L-shaped steel bracket with mounting screws
Mounting mechanism with all necessary screws
|
Colour
|
|
|
Primary Colour
|
Transparent
|
|
Dimensions
|
|
|
Length / Depth
|
86 mm
|
|
Width
|
123.3 mm
|
|
Height
|
126.4 mm
|
|
Volume
|
125 ml
|
|
Pump Specifications
|
|
|
Max. Pressure Head
|
5.2 m
|
|
Max. Water Flow
|
1000 l/h
|
|
Type
|
|
|
Pump type
|
D5
|
|
Power Specifications
|
|
|
Power Consumption
|
20 W
|
|
Rated voltage
|
12 V
|
|
Water Cooling
|
|
|
Water cooling component
|
Pump + Reservoir
|
|
Water cooling connectors
|
9x G1/4″
|
|
Internal Ports
|
|
|
Pump connectors
|
4 Pin (PWM control), SATA (power)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Thermal Specifications
|
|
|
Max. System Temperature
|
60 °C
|
|
Materials
|
|
|
Materials
|
Acrylic glass, Aluminium oxide, Anodised aluminium, PPS-GF40, Rubber, Stainless steel
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
