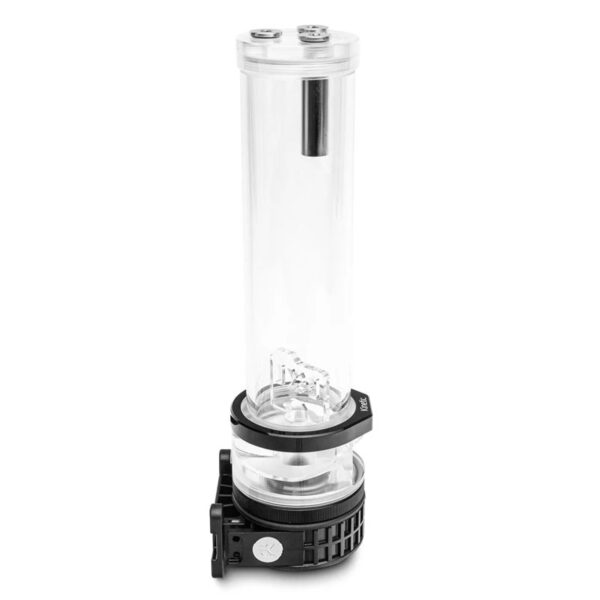

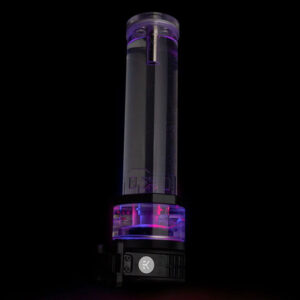

EK Water Blocks EK-Quantum Kinetic TBE 300 D5 PWM D-RGB – Acrylic
3831109818497
219,39 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
Pranešti kai prekė vėl bus prekyboje
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Reservoir pump combo from EKWB, reservoir with 405 ml capacity, reliable Xylem D5 pump included, 3.9 m head & 1,500 L/h flow rate, mounting system with wall bracket + pump decoupling, addressable RGB lighting
With this combination, EK Water Blocks delivers a proven D5 pump and a generously sized reservoir with stylish RGB lighting for demanding water cooling enthusiasts.
Features of the EK-Quantum Kinetic TBE 300 D5 PWM D-RGB Pump/Reservoir Combo at a Glance:
- Combination of pump and reservoir
- High-performance D5 pump with PWM control by Xylem
- 3.9 m head and 1,500 L/h flow rate
- Reservoir made of acrylic with 405 ml capacity
- Six G1/4 inch ports + pre-installed riser tube for high flexibility
- Integrated and digitally addressable RGB lighting
- Mounting system with pump decoupling + wall bracket
Quiet Pump and Plenty of Water Capacity
With the EK-Quantum Kinetic TBE 300 D5 PWM D-RGB, EK Water Blocks has developed a high-quality reservoir with an integrated D5 pump from Xylem. Besides its performance, the combo features a sleek and elegant design with RGB lighting. The pump achieves a maximum flow rate of 1,500 litres per hour and a head of 3.9 meters.
The 405 ml capacity tank ensures there are always sufficient reserves for the water cooling system and is largely made of transparent acrylic. There are a total of six G1/4 inch ports available for integration into the water loop – three each at the bottom and top of the reservoir. One port is equipped with a pre-installed riser tube to prevent the intake of air bubbles.
The special mounting system of the EK-Quantum Kinetic TBE 300 D5 PWM D-RGB combo serves as both a wall bracket and an effective decoupling system. The soft rubber damping prevents the transfer of pump vibrations to the case, thus reducing the noise level during operation.
The EK-Quantum Kinetic TBE 300 D5 PWM D-RGB is connected via a SATA connector for power and a 4-pin PWM connector to the motherboard for speed control. The integrated RGB lighting is digitally addressable and can be easily synchronised with other RGB elements in the setup.
This product is supplied without the necessary fittings. These must be purchased separately.
- Dimensions: 300 x 60 x 60 mm (H x W x D)
- Reservoir:
Material: Acrylic
Diameter: 60 mm
Capacity: 405 ml - Pump:
Material: Stainless Steel, PPS-GF40, EPDM O-Rings, Aluminium Oxide, Hard Carbon
Type: D5 G3 PWM
Head Delivery: approx. 3.9 m
Maximum Flow Rate: 1,500 L/h
Input Voltage: 12 V
Power Consumption: 23 W
Maximum Water Temperature: 60 °C
PWM Range: 20 – 100 % - Connections:
1x SATA (Power Supply)
1x 4-Pin-PWM (Control)
6x G1/4 Inch - Scope of Delivery:
EK-Quantum Kinetic TBE 300 D5 PWM D-RGB
Wall Bracket with Decoupling System
Drilling Template
Mounting Materials
Instruction Manual
|
Colour
|
|
|
Primary Colour
|
Transparent
|
|
Secondary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
60 mm
|
|
Width
|
60 mm
|
|
Height
|
300 mm
|
|
Volume
|
405 ml
|
|
Pump Specifications
|
|
|
Max. Pressure Head
|
3.9 m
|
|
Max. Water Flow
|
1500 l/h
|
|
Type
|
|
|
Pump type
|
D5
|
|
Power Specifications
|
|
|
Power Consumption
|
23 W
|
|
Rated voltage
|
12 V
|
|
Water Cooling
|
|
|
Water cooling component
|
Pump, Pump + Reservoir, Reservoir
|
|
Water cooling connectors
|
6x G1/4″
|
|
Internal Ports
|
|
|
Pump connectors
|
4 Pin (PWM control), SATA (power)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Thermal Specifications
|
|
|
Max. System Temperature
|
60 °C
|
|
Materials
|
|
|
Materials
|
Aluminium oxide, EPDM, Hard coal, PPS-GF40, Stainless steel
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
