EK Water Blocks EK-Quantum Kinetic TBE 200 D5 PWM D-RGB – Acrylic
3831109818398
217,94 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-17*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
reservoir pump combo from EKWB, reservoir with 205 ml capacity, reliable Xylem D5 pump included, 3.9 m head & 1,500 L/h flow rate, mounting system with wall bracket + pump decoupling, addressable RGB lighting
With this combination, EK Water Blocks delivers a proven D5 pump and a generously sized reservoir with stylish RGB lighting for demanding water cooling fans.
An overview of the features of the EK-Quantum Kinetic TBE 200 D5 PWM D-RGB pump/reservoir combination:
- Combination of pump and reservoir
- Powerful D5 pump with PWM control by Xylem
- 3.9 m head height and 1,500 L/h flow rate
- Acrylic reservoir with 205 ml capacity
- Six G1/4 inch ports + pre-installed riser tube for high flexibility
- Integrated and digitally addressable RGB lighting
- Mounting system with pump decoupling + wall mount
Quiet pump and plenty of space for water

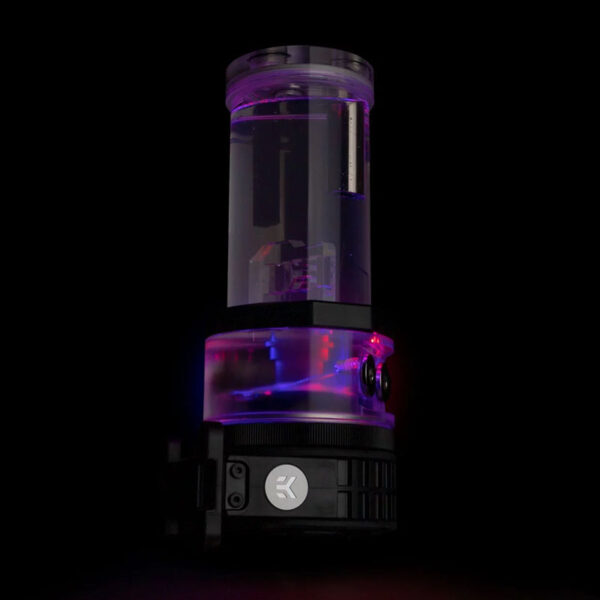

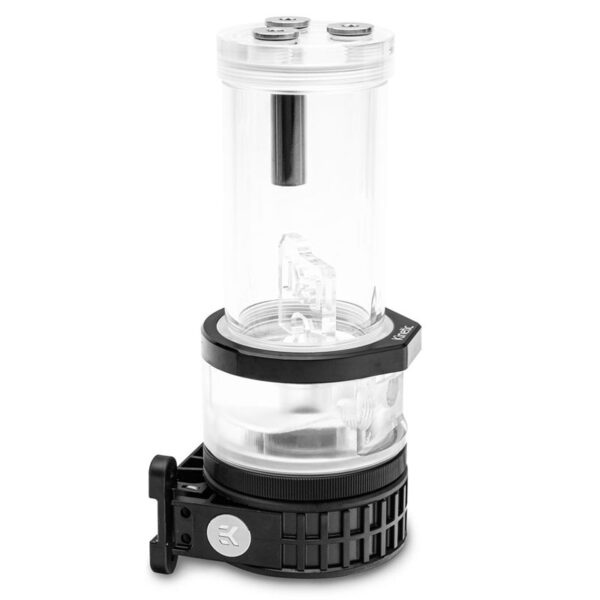

With the EK-Quantum Kinetic TBE 200 D5 PWM D-RGB, EK Water Blocks has developed a high-quality reservoir with an integrated D5 pump from Xylem. In addition to its performance, the combo features a chic and elegant design with RGB lighting. The pump achieves a maximum flow rate of 1,500 litres per hour and a head height of 3.9 metres.
The 205 ml tank always ensures sufficient reserves for water cooling and is largely made of transparent acrylic. In total, there are six G1/4 inch ports available for integration into the water circuit – three each on the bottom and the top of the reservoir. One port is equipped with a pre-installed riser tube which prevents the intake of air bubbles.
The special mounting system of the EK-Quantum Kinetic TBE 200 D5 PWM D-RGB combo is both a wall mount and an effective decoupling system. The soft rubber damping prevents the transmission of pump vibrations to the case, thereby reducing the noise level during operation.
The EK-Quantum Kinetic TBE 200 D5 PWM D-RGB is connected via a SATA connector for power supply and a 4-pin PWM connector to the motherboard for speed control. The integrated RGB lighting is digitally addressable and can be easily synchronised with other RGB elements in the setup.
This product is delivered without the necessary fittings. These must therefore be purchased separately.
- Dimensions: 200 x 60 x 60 mm (H x W x D)
- Reservoir:
Material: Acrylic
Diameter: 60 mm
Capacity: 205 ml - Pump:
Material: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, Hard carbon
Type: D5 G3 PWM
Delivery height: approx. 3.9 m
Maximum flow rate: 1,500 L/h
Input voltage: 12 V
Power consumption: 23 W
Maximum water temperature: 60 °C
PWM control range: 20 – 100 % - Connections:
1x SATA (power supply)
1x 4-pin PWM (control)
6x G1/4 inch - Scope of delivery:
EK-Quantum Kinetic TBE 200 D5 PWM D-RGB
Wall mount with decoupling system
Drilling template
Mounting materials
Instructions
|
Colour
|
|
|
Primary Colour
|
Transparent
|
|
Secondary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
60 mm
|
|
Width
|
60 mm
|
|
Height
|
200 mm
|
|
Volume
|
205 ml
|
|
Pump Specifications
|
|
|
Max. Pressure Head
|
3.9 m
|
|
Max. Water Flow
|
1500 l/h
|
|
Type
|
|
|
Pump type
|
D5
|
|
Power Specifications
|
|
|
Power Consumption
|
23 W
|
|
Rated voltage
|
12 V
|
|
Water Cooling
|
|
|
Water cooling component
|
Pump + Reservoir
|
|
Water cooling connectors
|
6x G1/4″
|
|
Internal Ports
|
|
|
Pump connectors
|
4 Pin (PWM control), SATA (power)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Thermal Specifications
|
|
|
Max. System Temperature
|
60 °C
|
|
Materials
|
|
|
Materials
|
EPDM, Hard coal, PPS-GF40, Stainless steel
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
