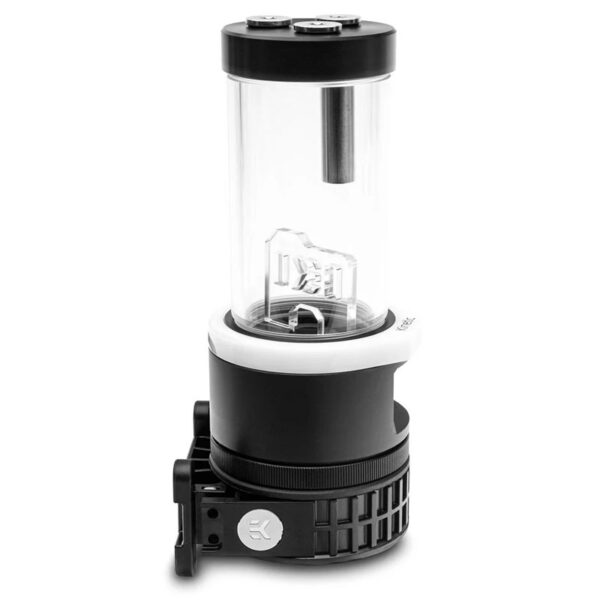

EK Water Blocks EK-Quantum Kinetic TBE 200 D5 PWM D-RGB – Acetal
3831109818381
215,91 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-17*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Reservoir Pump Combo from EKWB, expansion tank with 205 ml capacity, reliable Xylem D5 pump included, 3.9 m delivery head & 1,500 L/h delivery volume, mounting system with wall bracket + pump decoupling, addressable RGB lighting
With this combo, EK Water Blocks delivers a proven D5 pump paired with a generously sized reservoir featuring stylish RGB lighting — ideal for demanding custom loop enthusiasts.
EK-Quantum Kinetic TBE 200 D5 PWM D-RGB Pump/Reservoir Combo at a Glance:
- Combo unit with integrated pump and reservoir
- High-performance D5 pump with PWM control by Xylem
- 3.9 m head pressure and 1,500 L/h flow rate
- Reservoir made from acetal with 205 ml capacity
- Six G1/4-inch ports + pre-installed riser tube for added flexibility
- Integrated digitally addressable RGB lighting
- Mounting system with pump decoupling and wall bracket
Quiet Operation and Generous Coolant Capacity
The EK-Quantum Kinetic TBE 200 D5 PWM D-RGB is a high-end reservoir designed by EK Water Blocks and comes pre-equipped with a powerful D5 pump by Xylem. In addition to top-tier performance, this combo features a sleek, premium design complete with RGB lighting. The pump delivers a maximum flow rate of 1,500 litres per hour and a head pressure of 3.9 metres.
The 205 ml reservoir provides ample reserve capacity for your loop and is primarily constructed from black acetal. The unit features six G1/4-inch ports — three on the base and three on the top — offering extensive options for loop configuration. One port is equipped with a pre-installed riser tube to help prevent air intake.
The EK-Quantum Kinetic TBE 200 D5 PWM D-RGB combo features a specialised mounting system that serves as both a wall bracket and an effective decoupling mechanism. The soft rubber dampening reduces vibration transfer from the pump to the case, effectively lowering noise during operation.

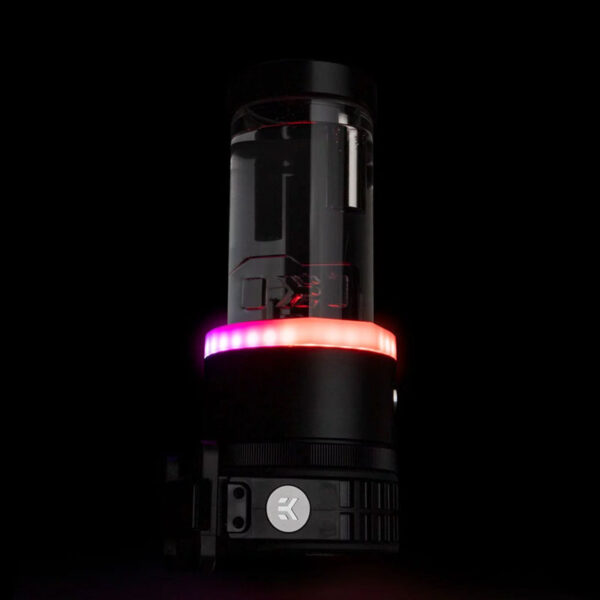

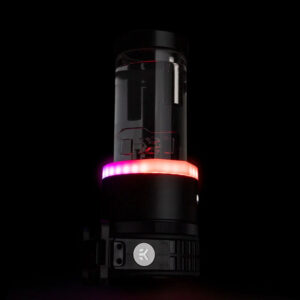

The combo is powered via a SATA connector, while a 4-pin PWM cable connects to the motherboard for pump speed control. The integrated RGB lighting is digitally addressable and can be easily synchronised with other RGB components in your setup.
Note: This product is supplied without fittings. These must be purchased separately.
- Dimensions: 200 x 60 x 60 mm (H x W x D)
- Reservoir:
Material: Acetal
Diameter: 60 mm
Capacity: 205 ml - Pump:
Material: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, Hard carbon
Type: D5 G3 PWM, DDC 4.2
Head height: approx. 3.9 m
Maximum flow rate: 1,500 L/h
Input voltage: 12 V
Power consumption: 23 W
Maximum water temperature: 60 °C
PWM control range: 20 – 100 % - Connections:
1x SATA (Power supply)
1x 4-pin PWM (Control)
6x G1/4 inch - Scope of delivery:
EK-Quantum Kinetic TBE 200 D5 PWM D-RGB
Wall mount with decoupling system
Template for drill hole
Mounting material
Instructions
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Transparent, White
|
|
Dimensions
|
|
|
Length / Depth
|
60 mm
|
|
Width
|
60 mm
|
|
Height
|
200 mm
|
|
Volume
|
205 ml
|
|
Pump Specifications
|
|
|
Max. Pressure Head
|
3.9 m
|
|
Max. Water Flow
|
1500 l/h
|
|
Type
|
|
|
Pump type
|
D5
|
|
Power Specifications
|
|
|
Power Consumption
|
23 W
|
|
Rated voltage
|
12 V
|
|
Water Cooling
|
|
|
Water cooling component
|
Pump + Reservoir
|
|
Water cooling connectors
|
6x G1/4″
|
|
Internal Ports
|
|
|
Pump connectors
|
4 Pin (PWM control), SATA (power)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Thermal Specifications
|
|
|
Max. System Temperature
|
60 °C
|
|
Materials
|
|
|
Materials
|
EPDM, Hard coal, PPS-GF40, Stainless steel
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
